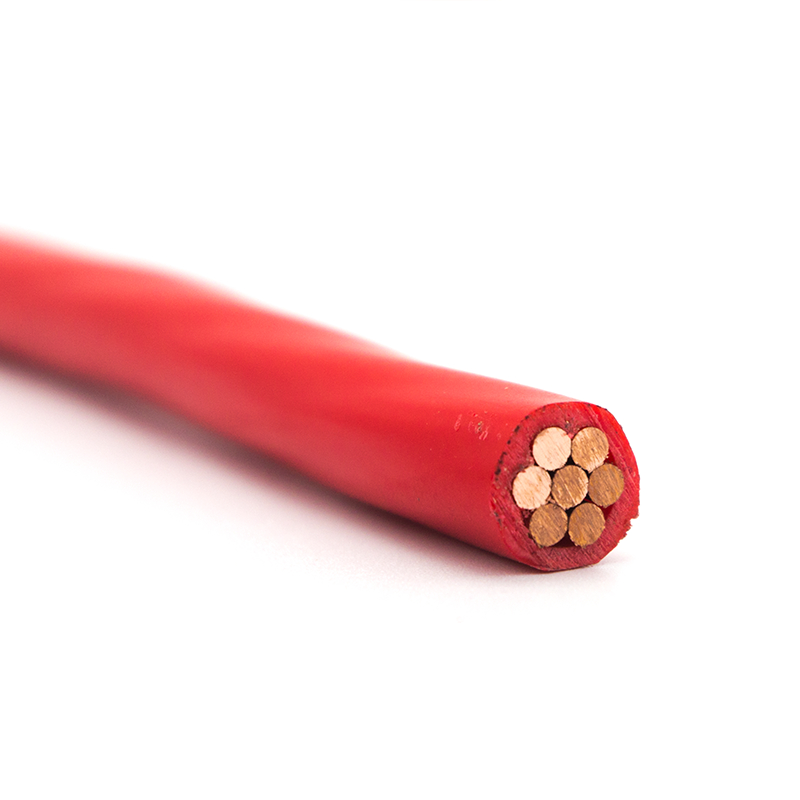

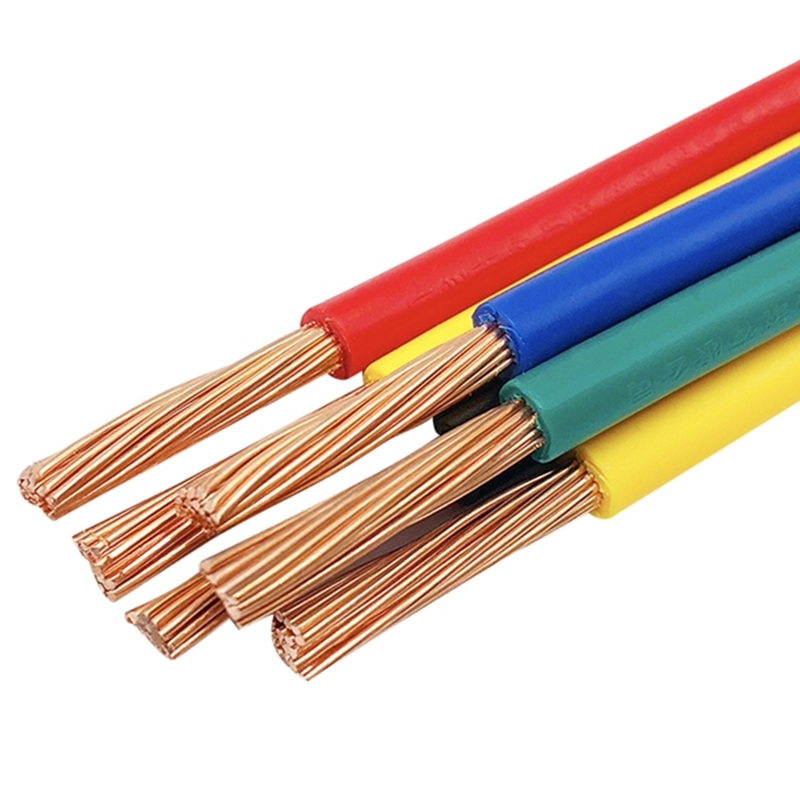

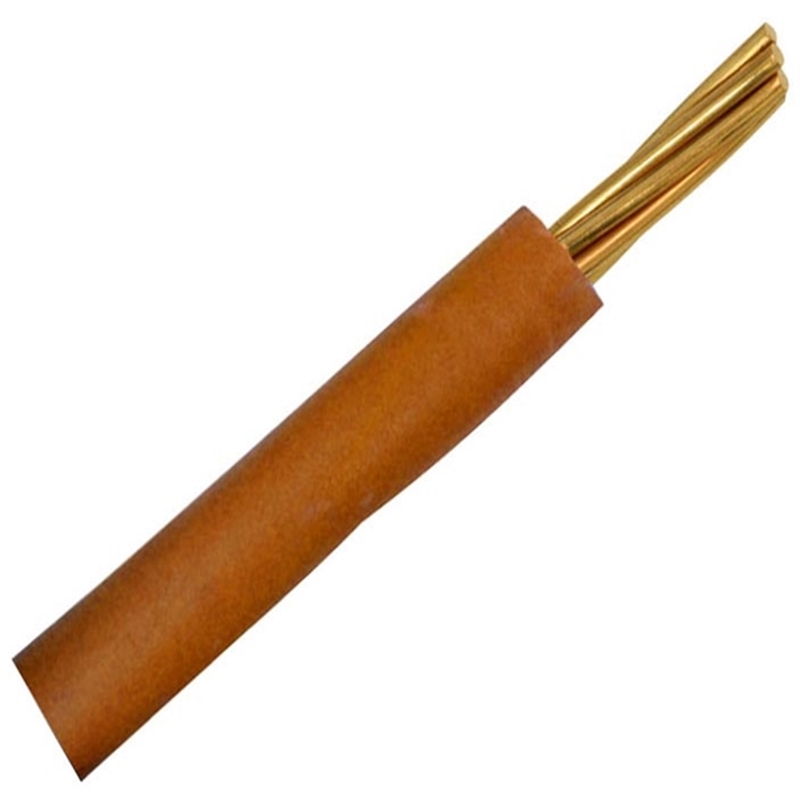

H05V-R H07V-R BV strand wire includes strand copper/aluminum wire and PVC insulation, and it is softer than the BV solid wire. It It is used to used to to connect indoor switch sockets, lighting, household appliances, small power tools and instruments.
Brand:
ElectricaltechItem NO.:
XTD--BV-02Order(MOQ):
5000 metersPayment:
T/T 30% the deposit, the balance will be paidMarket Price:
$/M 0.25Price:
$0.18/0.21Product Origin:
Hubei, China.Color:
Red yellow blue green black yellow/green orShipping Port:
Wuhan, Shanghai, Shenzhen, Guangzhou, or other Chinese port.Lead Time：
Within 3-5 working days since we receiveWeight：
100 KG/KMSingle Core Strand Conductor PVC Insulated Non-Sheathed BV Electrical Wires
PRODUCT KEYWORDS
BV strand, THW, NYA, H05V-R, H07V-R, 6491X, 60227 IEC 01 BV.
APPLICATION AND CHARACTERISTICS
The BV strand cable can be used to connect indoor switch sockets, lighting, household appliances, small power tools and instruments. The cable has some characteristic: Safe and stable electrical performance, easy wiring soft performance, energy-saving green environmental performance.

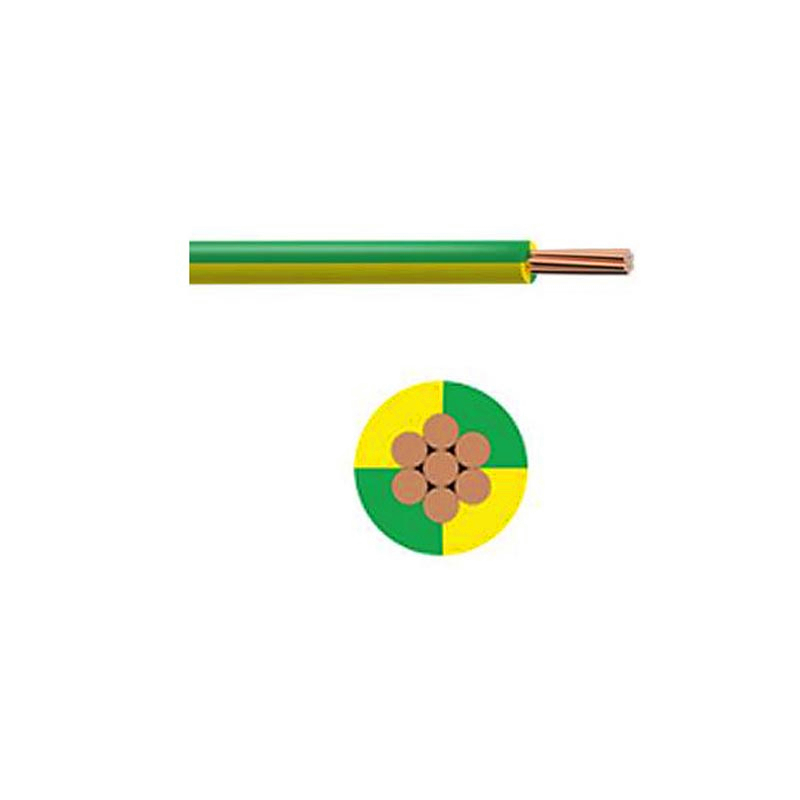

PRODUCT STRUCTURE
---Conductor Material:
Pure annealed copper or aluminum wire, strand, class 2, meet to IEC 60228, GB/T 3956, BS 6360.
---Insulation Material:
PVC (Polyvinyl chloride)
---Insulation Color:
Red, yellow, blue, green, black, brown, yellow/green, and other colors.
---Sheath Material:
Non-Sheath
---Core Number:
Single core, 1C.
---Voltage Rate (U0/U):
0.75～1.0 mm2: 300/500V; 1.5～400 mm2: 450/750V.
---Working Temperature:
-15℃～+70℃.
---Minimum Bending Radius:
Up to 10 mm²: 3 x O.D. 10 mm² to 25 mm²: 4 x O.D.； above 25 mm²: 6 x O.D.
---Products Standard:
GB/T 5023, JB/T 8734, IEC 60227, BS 6004, VDE 0281, UL 83, TIS 11 Part 3-2553.
---Products Packing:
100 meters each roll, reel, coil, plastic reel, wooden pallet, wooden drum, or others.
---Products MOQ:
0.5～1.0 mm2: ≥10000 meters, 1.5～70 mm2: ≥5000 meters, 95～400 mm2: ≥500 meters.
---Products Delivery:
Within 5-7 working days as soon as we received the deposit.
REMARK
---The above information is for reference only, please refer to the exact technical parameters according to the actual product.
---The product can have flame retardant and fire-resistant properties, the working temperature can be 90 degree, but the production process, materials and production standard maybe has a few of different.
---For the BV strand cable, according to the practice, the common specification is 1.0～95 mm2.
---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.
---Electricaltech Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.
---Electricaltech Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.

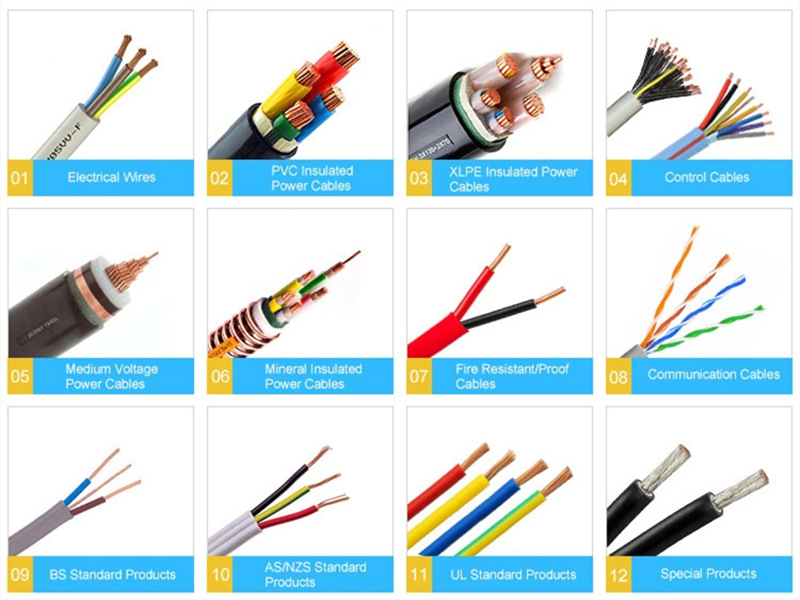

HOT-SELLING PRODUCTS

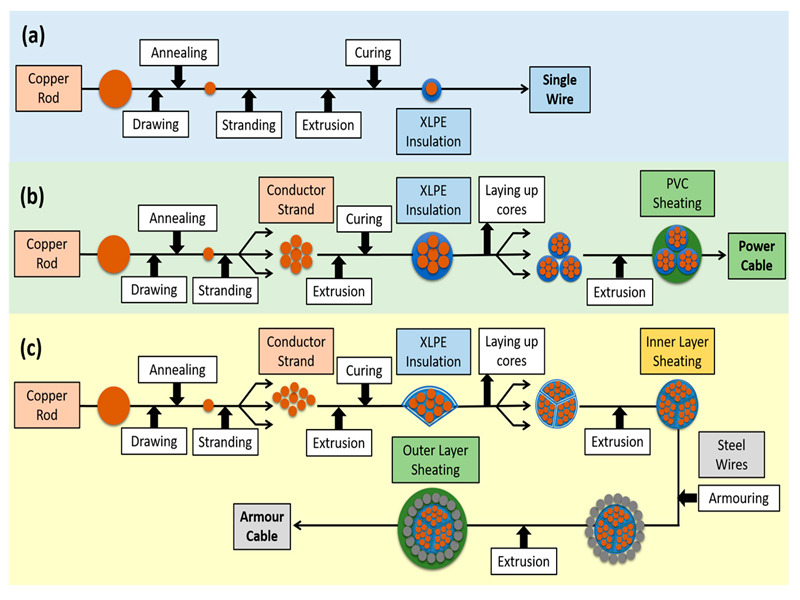

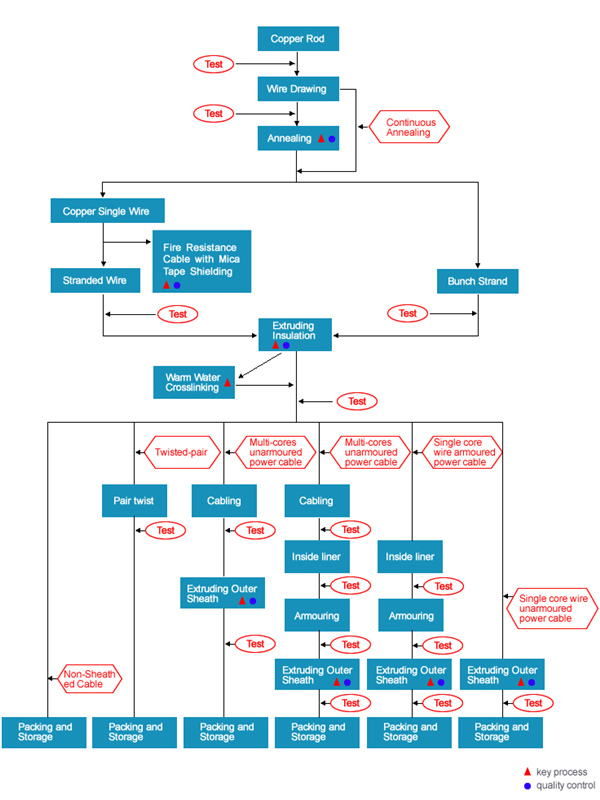

PRODUCTION PROCESS
