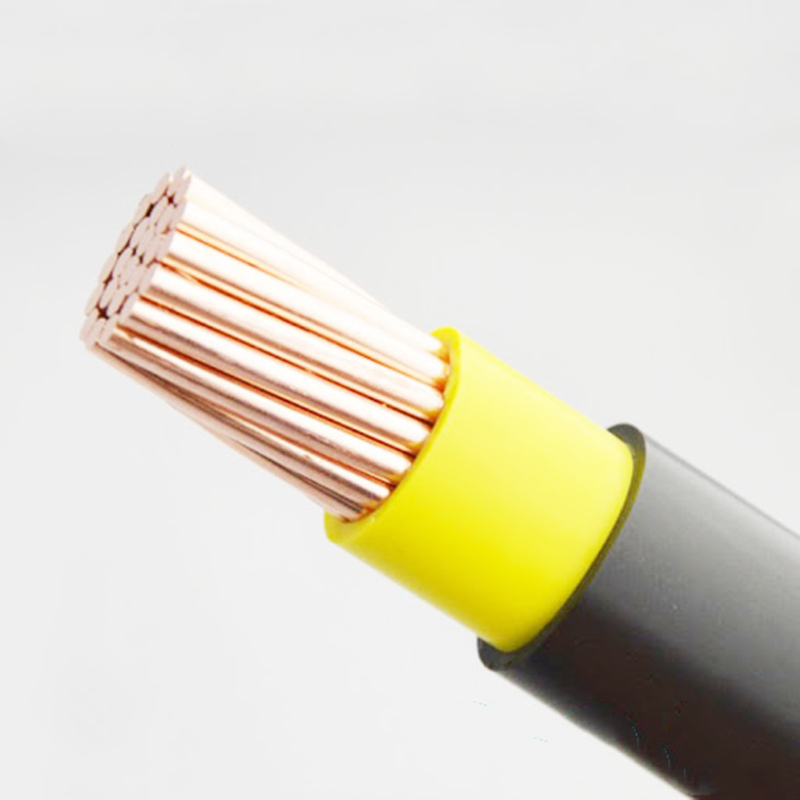

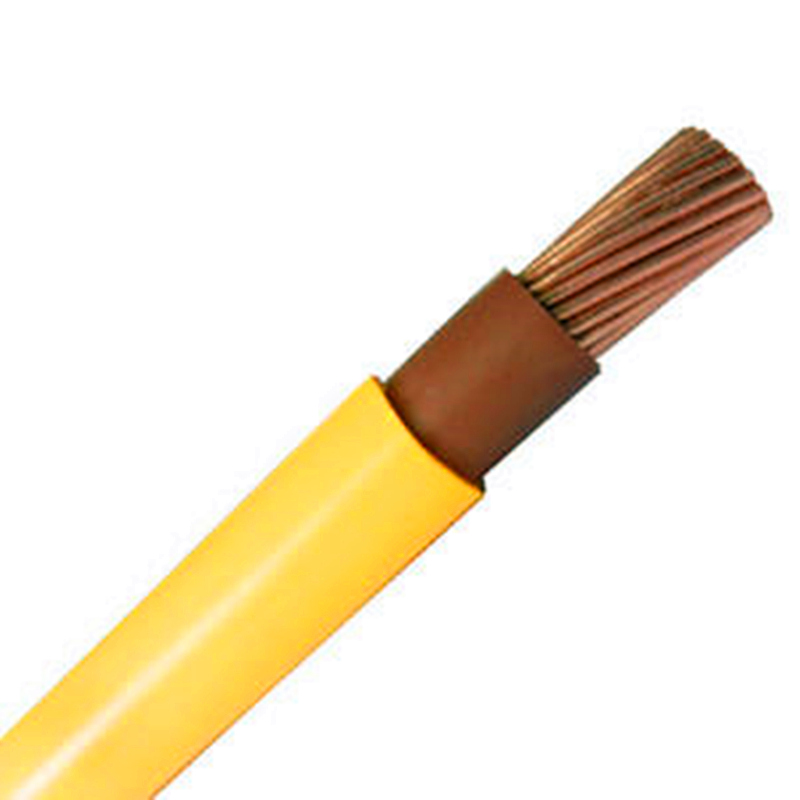

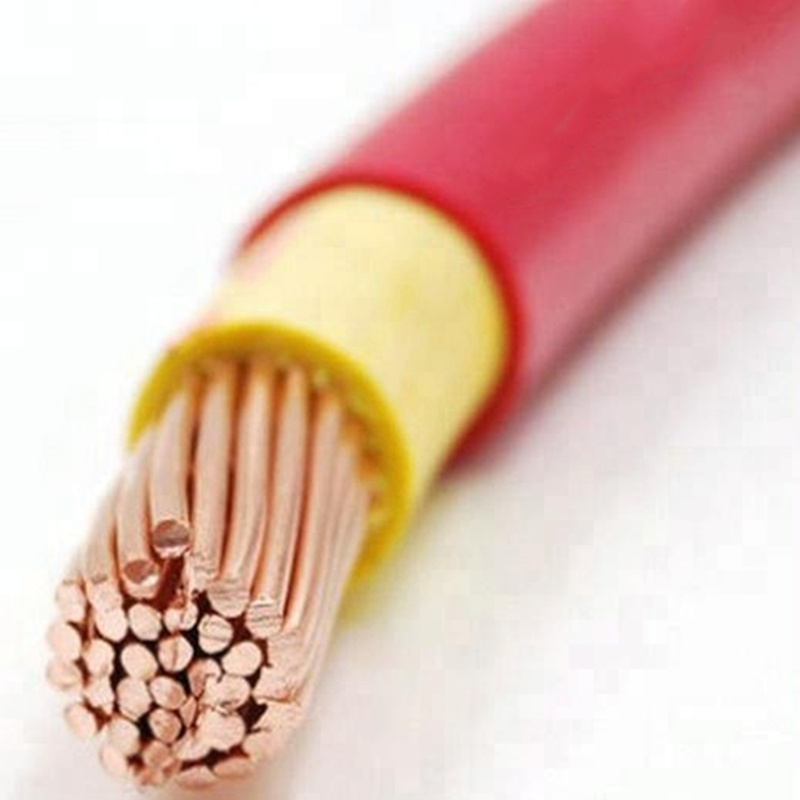

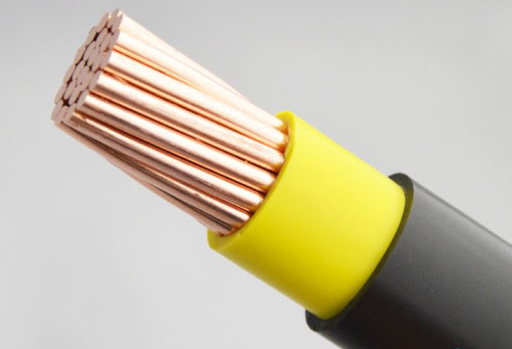

6181B Single Core LSZH Insulated WDZ-BYJYJ Electrical Cable

6181B Single Core LSZH Insulated WDZ-BYJYJ Electrical Wire and Cable, plain annealed copper conductor, LSZH insulation, LSZH sheath, meet to BS 7211, JB/T 10491.

Brand:
Electricaltech
Item NO.:
XTD-WDZ-02
Order(MOQ):
3000 meters.
Payment:
T/T 30% the deposit, the balance will be paid
Market Price:
$/M 0.5
Price:
$0.3/0.4 per meter
Product Origin:
Hubei Province, China.
Color:
Black grey or others.
Shipping Port:
Wuhan, Shanghai, Guangzhou, Shenzhen, or other Chinese port.
Lead Time：
Within 5-7 working days as soon as we re
Weight：
150 KG/KM

Inquiry now

Product Detail

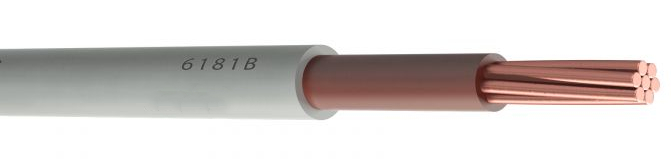

6181B Single Core Double LSZH Insulated WDZ-BYJYJ Electrical Cable

PRODUTS KEYWORDS

6181B electric cable, WDZ-BYJYJ electrical wire, SDI LSZH insulated and sheathed cable, BS 7211 LSZH insulated cable, JB/T 10491 WDZ-BYJYJ cable.

PRODUCTS CHARACTERISTICS

6181B Single Core Double LSZH Insulated Electrical Wire and Cables, plain annealed copper conductor, solid or strand, low smoking zero halogen insulation, low smoking zero halogen, meet to JB/T 10491, BS 7211, BS EN/IEC 61034, BS 6724, BS 8573.

Low smoke zero halogen (LSZH, LSOH, LS0H, LSFH and OHLS) is the material classification of wire sheath in the wire and cable industry. The low-smoke halogen-free wire sheath is composed of thermoplastic or thermosetting properties with low smoke emission and no halogens. Low-smoke halogen-free materials reduce the toxic and corrosive gases produced during combustion. Low-smoke, halogen free materials are often used in poorly ventilated environments such as airplanes, train cars, or ships. Low-smoke halogen materials are also commonly used in the railway industry because of the presence of high-voltage lines or signal lines that carry the train's position. The use of low-smoke, halogen-free materials also reduces the amount of toxic gas accumulated when the line is damaged by fire or short circuit.

PRODUCTS CHARACTERISTICS

6181B single core double LSZH insulated cable, it is fixed installation in walls, on boards and in channels or embedded in plaster, low smoke emission and corrosive gasses in case of fire.

PRODUCTS STRUCTURE

---Conductor Material

Pure annealed copper wire; solid class 1, or strand class 2.

---Insulation Material

LSZH (low smoking zero halogen), XLPE (cross-linked polyethylene, is optioned)

---Insulation Color

Red, yellow, blue, green, black, brown, and other colors.

---Sheath Material

LSZH (low smoking zero halogen)

---Sheath Color

Black, grey, and other colours.

---Core Number

Single core, 1C.

---Voltage Rate (U₀/U)

300/500V, 450/750V

---Working Temperature

-15℃～+90℃.

---Minimum Bending Radius

Diameter up to 25mm²: 4 x overall diameter

Diameter over 25mm²: 6 x overall diameter.

---Production Standard

JB/T 10491, BS 7211, BS 6724, BS EN/IEC 61034, BS 8573.

---Products Packing

100 meters each roll, reel, coil, plastic reel, wooden pallet, wooden drum, or others.

---Products Delivery

Within 5-7 working days as soon as we received the deposit.

REMARK

---The information contained within this datasheet is for guidance only and is subject to change without notice or liability.

---All the information is provided in good faith and is believed to be correct at the time of publication; when selecting cable accessories, please note that actual cable dimensions may vary due to manufacturing tolerances

---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.

---Electricaltech Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.

---Electricaltech Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.

---Electricaltech Cable: it is your Production Base, Overseas Warehouse, and Purchase Consultant in wire and cable

industry.
