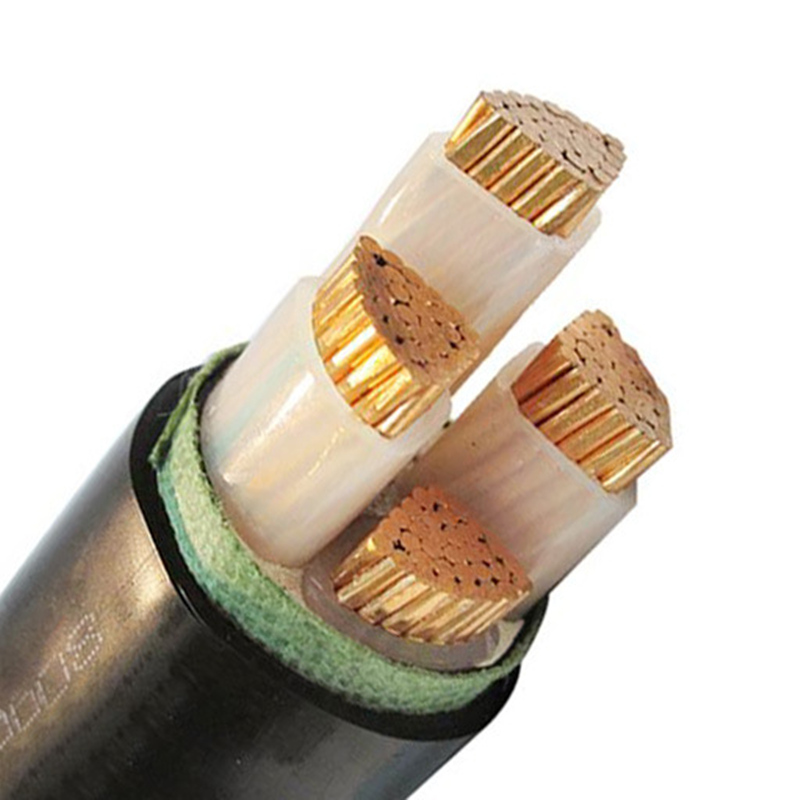

XLPE Insulated PVC Sheathed YJV Power Cables

XLPE Insulated PVC Sheathed YJV Power Cables, 0.6/1kV, CU/XLPE/PVC/PVC, copper conductor, XLPE insulation, PVC inner sheath, PVC out sheath, meet to GB/T 12706, IEC 60502, BS 7889.

  • Brand:

    Electricaltech
  • Item NO.:

    XTD-YJV-01
  • Order(MOQ):

    100 meters
  • Payment:

    T/T 30% the deposit, the balance will be paid
  • Market Price:

    $/M 28.88
  • Price:

    $25.18/28.88 per meter
  • Product Origin:

    Hubei Province, China.
  • Color:

    Black or others.
  • Shipping Port:

    Wuhan, Shanghai, Guangzhou, Shenzhen, or other Chinese port.
  • Lead Time:

    Within 7-10 working days as soon as we
  • Weight:

    1680 KG/KM
  • Product Detail

XLPE Insulated PVC Sheathed YJV Power Cables


MAIN KEYWORDS

U-1000 R2V, R02V, BS 7889, 6181X, 6182X, 6183X, 6184X, 6185X, YJV power cable, CV power cable,

CU/XLPE/PVC, CU/XLPE/PVC/PVC cable.


APPLICATION CHARACTERISTICS

XLPE insulated PVC sheathed YJV power cable, copper conductor, XLPE insulation, PVC inner sheath, PVC out sheath, U0/U: 0.6/1kVSuitable for installation in areas with reduced risk of mechanical damage; on tray, in free air or clipped direct. Suitable also for conduit and wiring installations when mechanical protection is required.

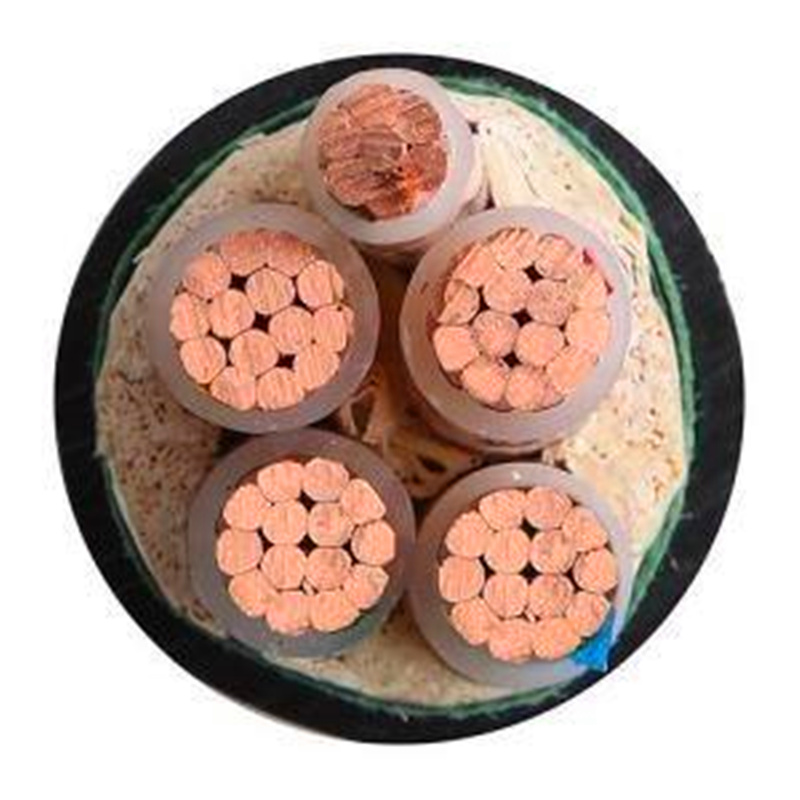

PRODUCTS STRUCTURE

---Conductor Material

   Pure annealed copper wire, solid class 1, or strand class 2.

---Insulation Material

   XLPE (cross-linked polyethylene).

---Insulation Color

   1C: brown, blue, red, yellow, green, black, or others.

   2C: brown, blue

   3C: brown, blue, yellow/green

   4C: brown, blue, black, yellow/green,

   5C: brown, blue, black, grey, yellow/green

   Remark: the insulated color is nature and close to transparent, then it with a colored tape.

---Filler Material

    Fiberglass tape.

---Cabling Material

    Non-woven fabrics

---Inner Sheath Material

    PVC (Polyvinyl chloride).

---Armored Material

    Unarmored.

---Sheath Material (out insulation)

   PVC (polyvinyl chloride)

---Sheath Color

    Black, or others.

---Core Number

   2~5 cores, 2C~5C.

---Voltage Rate (U0/U)

   0.6/1kV, 600/1000V (Um: 1.2kV).

---Working Temperature

   -15℃~+90℃.

---Minimum Bending Radius

   Fixed: 20 x Out Diameter.

---Production Standard

   GB/T 12706, IEC 60502, BS 7889.

---Products Delivery

   Within 10-15 working days as soon as we received the deposit.



REMARK

---The above information is only for you reference, for the formal technical data, please refer to the actual cables.

---The product can have flame retardant, fire-resistant or Low Smoking Zero Halogen properties, and their working temperature can be 90 degree, but the production process and insulation materials maybe has a few of different.

---For the YJV power cable, according to the practice, the common specification is 50~300 mm2.

---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.

---Electricaltech Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.

---Electricaltech Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
