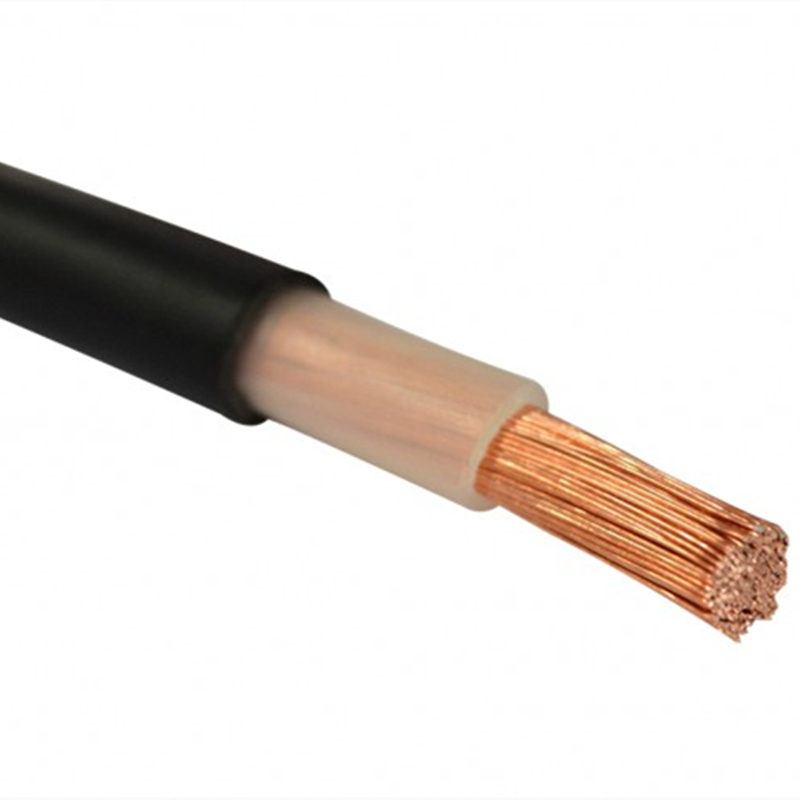

RV-K xlpe insulated pvc sheath YJV power cable

RV-K xlpe insulated pvc sheath YJV power cable

MAIN KEYWORDS

RV-K flexible cable, RV-K power cable, xlpe insulated power cable, PVC sheath power cable, BS EN 60502 RV-K power cable.

PRODUCTS APPLICATION

Electricaltech^@ brand RV-K XLPE insulated PVC sheath YJV power cable,  it is for power distribution and can be used for all types of low voltage industrial-type connections, building installations, in urban grids, etc. This cable is particularly suitable for use in challenging layouts because of its high flexibility, also making the installation process substantially easier. It can be buried or installed in a tube as well as outdoors without requiring additional protection. The RV-K cable withstands damp conditions.

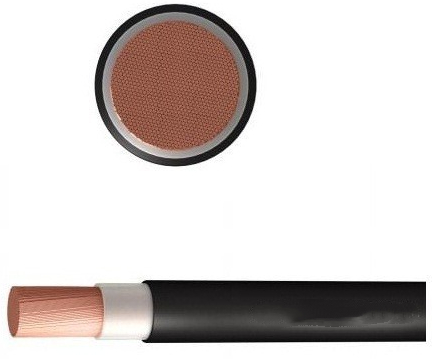

PRODUCTS STRUCTURE

---Conductor Material

    Plain annealed copper wire, strand, class 5.

---Insulated Material

    XLPE (cross-linked polyethylene)

---Core Identification

    1 core: natural or other colours

    2 cores: brown, blue.

    3 core: green/yellow, blue, brown

    4 core: green/yellow, brown, black, grey

    5 core: green/yellow, blue, brown, black, grey

    7 core and above: black with white numbers.

---Conductor Cross-section

    2.5～240 mm²

---Voltage Rate

    0.6/1kV, 600/1000V

---Temperature Rating

    -15～+90 °C

---Minimum Bending Radius

    6 x overall diameters

---Production Standard

    GB/T 12706, IEC 60502, BS EN 60502-1.

---Production Delivery

    Within 5-7 working days as soon as we received the 30% deposit before the shipment.

---Packing Type

   Plywood drum, wooden pallet, wooden drum or others.

REMARK

---The information contained within this datasheet is for guidance only and is subject to change without notice or liability.

---All the information is provided in good faith and is believed to be correct at the time of publication; when selecting cable accessories, please note that actual cable dimensions may vary due to manufacturing tolerances.

---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.

---Electricaltech Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.

---Electricaltech Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.

---Electricaltech Cable: it is your Production Base, Overseas Warehouse, Purchase Consultant in wire and cable industry.
