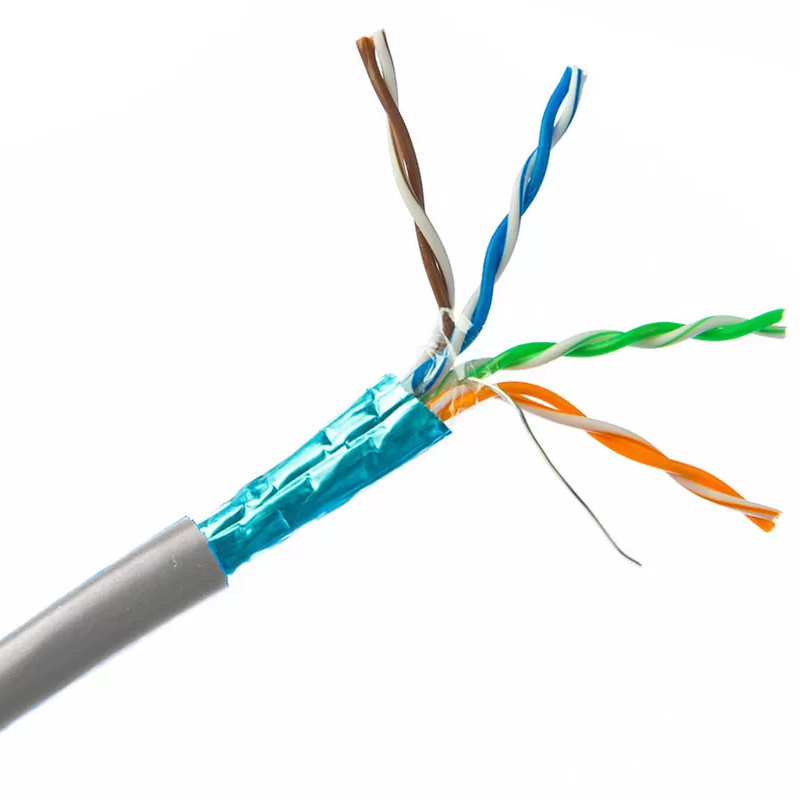

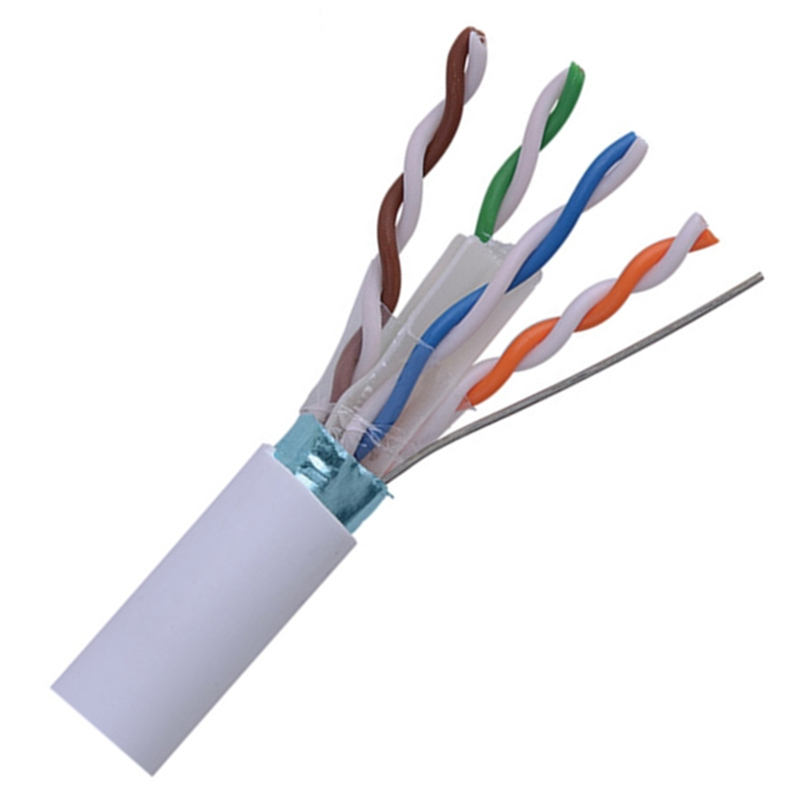

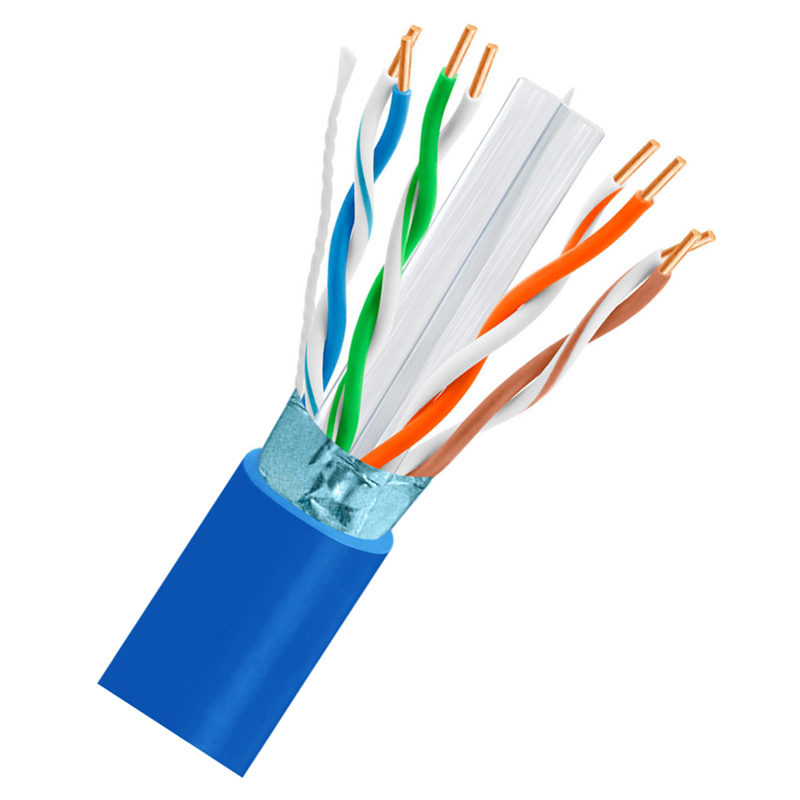

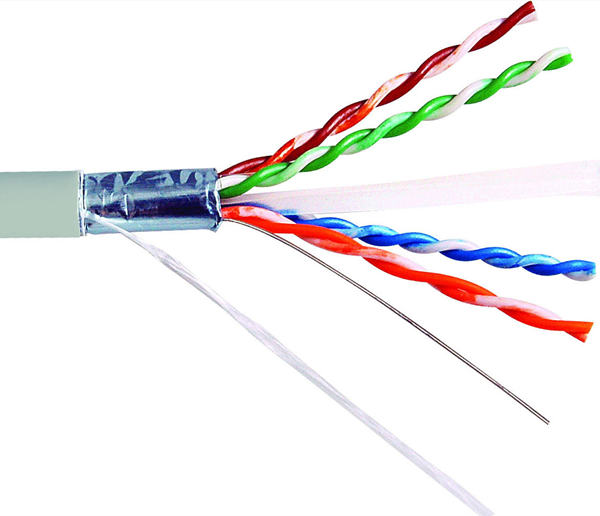

Cat 6 FTP shielded PVC sheath LAN Cable

Cat 6 FTP shielded PVC sheath LAN Cable

PRODUCTS KEYWORDS

Cat 6 ftp lan cable, ftp cat 6 network cable, cat 6 shielded 23 AWG lan cable, cat 6 shielded cable, Category 6 data cable, TIA/ EIA 568B cat 6 lan cable, ISO/IEC 11801 cat 6 ftp cable.

APPLICATION CHARACTERISTICS

Cat 6 FTP shielded PVC sheath LAN cable, bare copper conductor, HDPE insulated, aluminum foil shielded, PVC LSZH sheath, meet to ISO/IEC 11801, ANSI/TIA/EIA 568B or YD/T 1019.

Cat 6 FTP shield PVC sheath LAN Cable, category 6 FTP Cable (Cat 6 Cable) is a twisted pair cable for carrying signals. This type of cable is main used in structured cabling for computer networks such as Ethernet, supports a frequency range of up to 250MHz and is designed for transmission speeds of up to 1 gigabit per second(Gigabit Ethernet). It is also used to carry other signals such as telephony and video.

PRODUCTS STRUCTURE

---Conductor Material

    Plain annealed copper wire, solid class 1, 1/0.57 mm, 23 AWG (4 pairs)

---Insulation Material

    HDPE (high density polyethylene), thickness: 1.1 mm

---Insulation Color

    Blue, blue/white; orange, orange/white; green, green/white; brown, brown/white

---Shielded Material

    Aluminum foil

---Drain Wire Material

    Tinned copper wire.

---Sheath Material

    PVC (Polyvinyl Chloride), thickness: 0.55 mm

---Sheath Color

    Black, blue, grey, white, or others.

---Core Number

    4 pairs (8 cores)

---Cable’s Out Diameter

    8.0 mm

---Refer Net Weight

    17 kg/305m (1 box)

---Minimum Bending Radius

    8 x overall diameter

---Flame Retardant Class

    CAM, CMR (IEC 60331)

---Operating Voltage

    72V

---Operating Temperature

    -20℃～+70℃

---Characteristics Impedance

    100 ±15Ω

---Max. DC Conductor Resistance in 20℃

    ≤ 8.9 Ω/100m (328ft)

---Max. Resistance Unbalance Individual Pair

    2.0%

---Mutual capacitance  at 1kHz

    5.2 nF/100m (328ft)

---Max. Delay Skew

    45 nS/100m

---Production Standard

    ISO/IEC 11801-2012, ANSI/TIA/EIA 568B, YD/T 1019-2013, IEC 61156-5-2012, AS/NZS 3080, BS EN 50173

---Packing Type

    305 meters per carton (box)

---Product MOQ

    100 cartons (305 meters per carton)

---Production Delivery

    Within 7-15 working days as soon as we received the deposit.

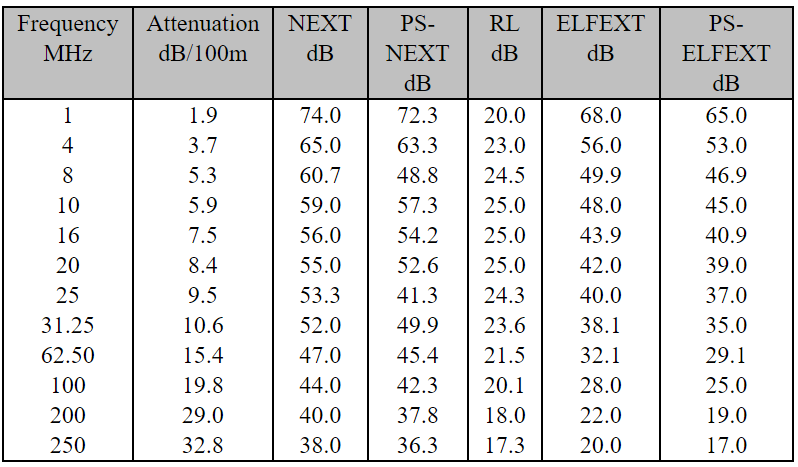

ELECTRICAL CHARACTERISTICS

REMARK

---The information contained within this datasheet is for guidance only and is subject to change without notice or liability. All the information is provided in good faith and is believed to be correct at the time of publication.

---When selecting cable accessories, please note that actual cable dimensions may vary due to manufacturing tolerances.

---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.

---Electricaltech Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.

---Electricaltech Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
