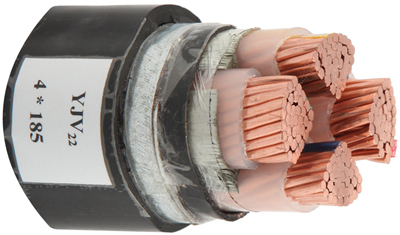

XLPE Insulated STA Armored PVC Sheathed YJV22 Power Cables

XLPE Insulated STA Armored PVC Sheathed YJV22 Power Cables, 0.6/1kV, CU/XLPE/PVC/STA/PVC, copper conductor, XLPE insulation, PVC inner sheath, steel tape armored, PVC out sheath, meet to GB/T 12706, IEC 60502, BS 7870.

  • Brand:

    Electricaltech
  • Item NO.:

    XTD-YJV22-01
  • Order(MOQ):

    100 meters
  • Payment:

    T/T 30% the deposit, the balance will be paid
  • Market Price:

    $/M 35.88
  • Price:

    $32.88/35.66 per meter
  • Product Origin:

    Hubei Province, China.
  • Color:

    Black or others.
  • Shipping Port:

    Wuhan, Shanghai, Guangzhou, Shenzhen, or other Chinese port.
  • Lead Time:

    Within 10-15 working days as soon as we
  • Weight:

    1625 KG/KM
  • Product Detail

XLPE Insulated Steel Tape Armoured PVC Sheathed YJV22 Power Cables


MAIN KEYWORDS

YJV22 power cable, BS 7870 steel tape armored cable, U-1000 RVFV power cable, STA armoured power cable, CU/XLPE/STA/PVC, CU/XLPE/PVC/STA/PVC power cable.


APPLICATION CHARACTERISTICS

XLPE Insulated Steel Tape Armored PVC Sheathed YJV22 Power Cables, copper conductor, XLPE insulation, PVC inner sheath, steel tape armoured, PVC out sheath, U0/U: 0.6/1kVIt applies to electrical power transmission and distribution lines with AC rated voltage U0/U up to and including 0.6/1kV. For outdoor installation in damp and wet locations, laid directly in the ground where excessive mechanical stresses are present in sloping and moving terrains and in vertical or inclined laying, as well as in locations susceptible to sliding.

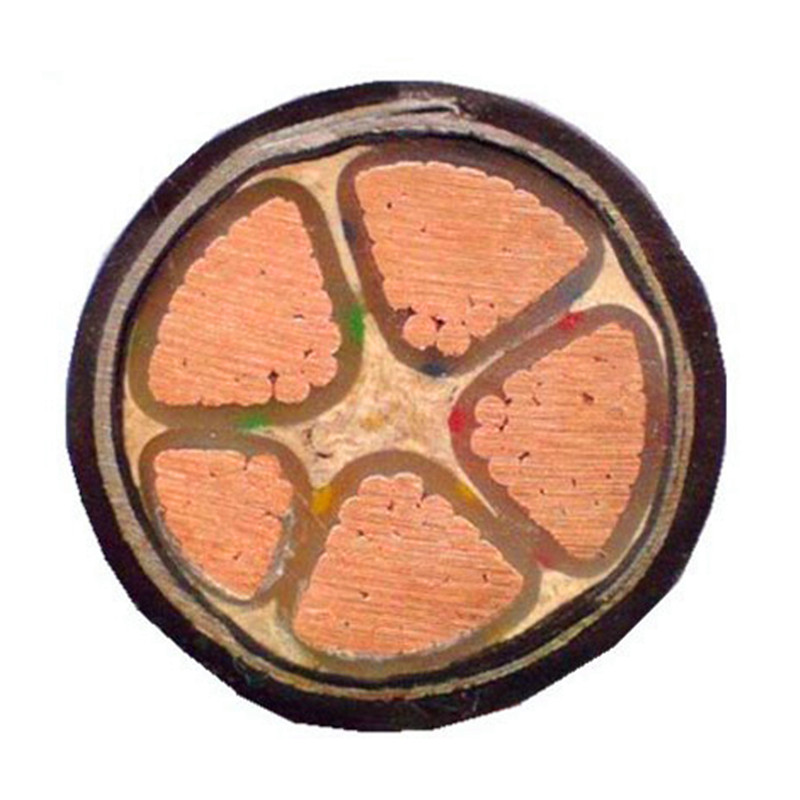

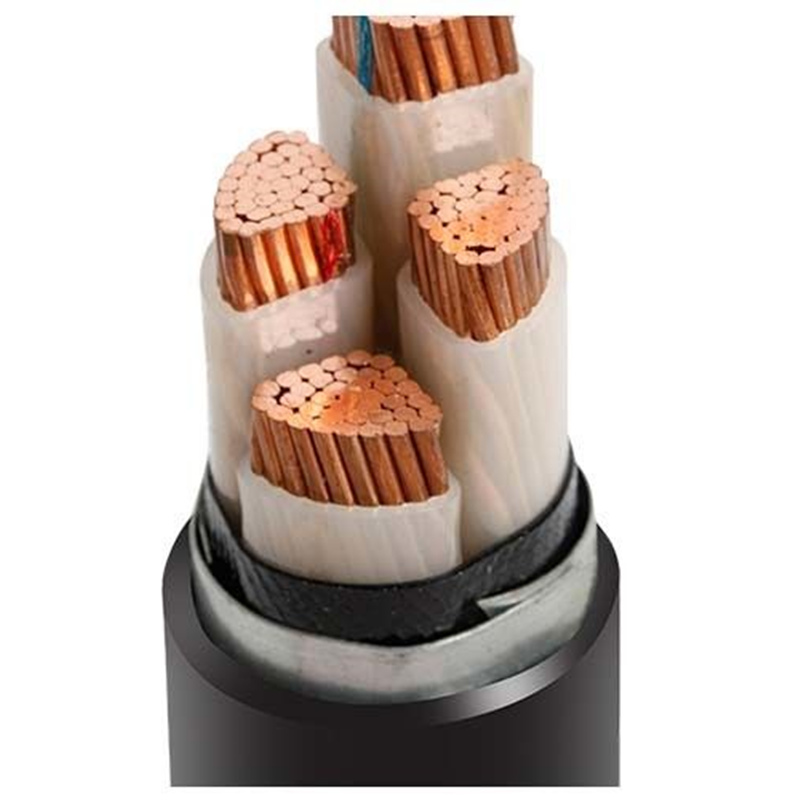

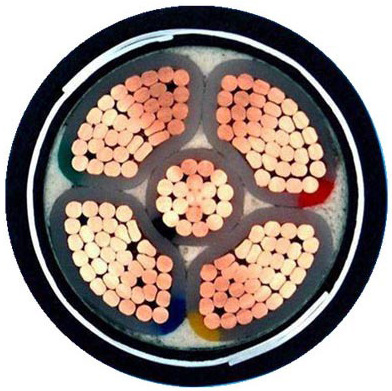

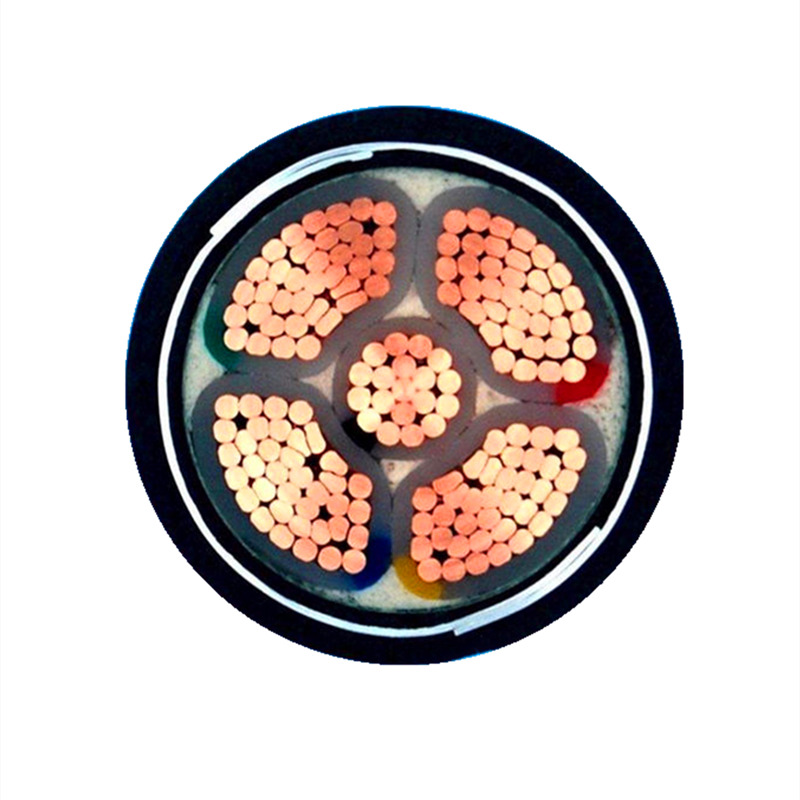

PRODUCTS STRUCTURE

---Conductor Material

   Pure annealed copper wire, solid class 1, or strand class 2.

---Insulation Material

   XLPE (cross-linked polyethylene)

---Insulation Color

   1C: brown, blue, red, yellow, green, black, or others.

   2C: brown, blue

   3C: brown, blue, yellow/green

   4C: brown, blue, black, yellow/green,

   5C: brown, blue, black, grey, yellow/green

   Remark: the insulated color is nature and close to transparent, then it with a colored tape.

---Filler Material

    Fiberglass tape.

---Cabling Material

    Non-woven fabrics

---Inner Sheath Material

    PVC (Polyvinyl chloride)

---Armored Material

    Galvanized steel tape

---Sheath Material (out insulation)

   PVC (polyvinyl chloride)

---Sheath Color

    Black, or others.

---Core Number

   2~5 cores, 2C~5C.

---Voltage Rate (U0/U)

   0.6/1kV, 600/1000V (Um: 1.2kV).

---Working Temperature

   -15℃~+90℃.

---Minimum Bending Radius

   Fixed: 20 x Out Diameter.

---Production Standard

   GB/T 12706, IEC 60502, BS 7870

---Products Delivery

   Within 10-15 working days as soon as we received the deposit.



REMARK

---The above information is only for you reference, for the formal technical data, please refer to the actual cables.

---The product can have flame retardant, fire-resistant or Low Smoking Zero Halogen properties, and their working temperature can be 90 degree, but the production process and insulation materials maybe has a few of different.

---For the YJV22 power cable, according to the practice, the common specification is 50~240 mm2.

---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.

---Electricaltech Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.

---Electricaltech Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
