XLPE Insulated SWA Armoured PVC Sheathed YJV32 Power Cables, 0.6/1kV, CU/XLPE/PVC/SWA/PVC, copper conductor, XLPE insulation, PVC inner sheath, steel wire armored, PVC out sheath, meet to GB/T 12706, IEC 60502, BS 5467.
Brand:
ElectricaltechItem NO.:
XTD-YJV32-01Order(MOQ):
100 metersPayment:
T/T 30% the deposit, the balance will be paidMarket Price:
$/M 38.88Price:
$36.88/38.78 per meterProduct Origin:
Hubei Province, China.Color:
Black or others.Shipping Port:
Wuhan, Shanghai, Guangzhou, Shenzhen, or other Chinese port.Lead Time：
Within 15-20 working days as soon as weWeight：
1350 KG/KM

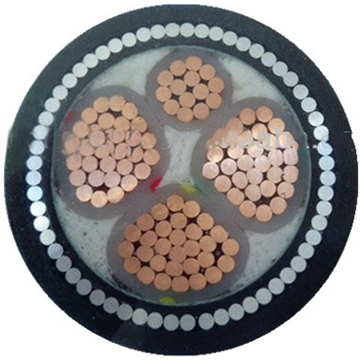

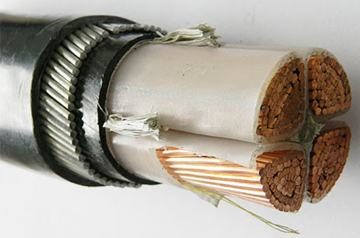

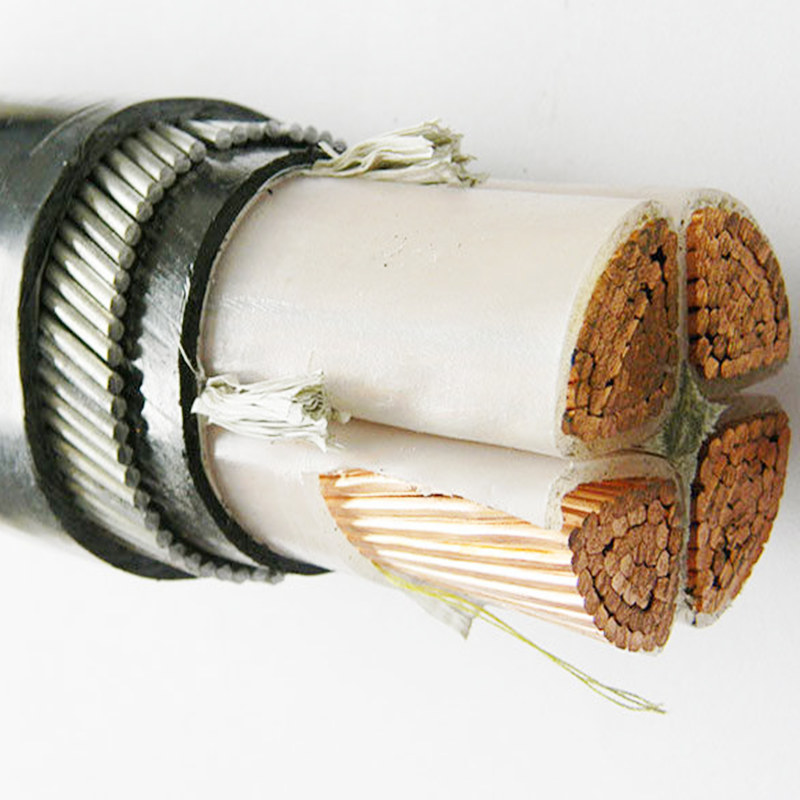

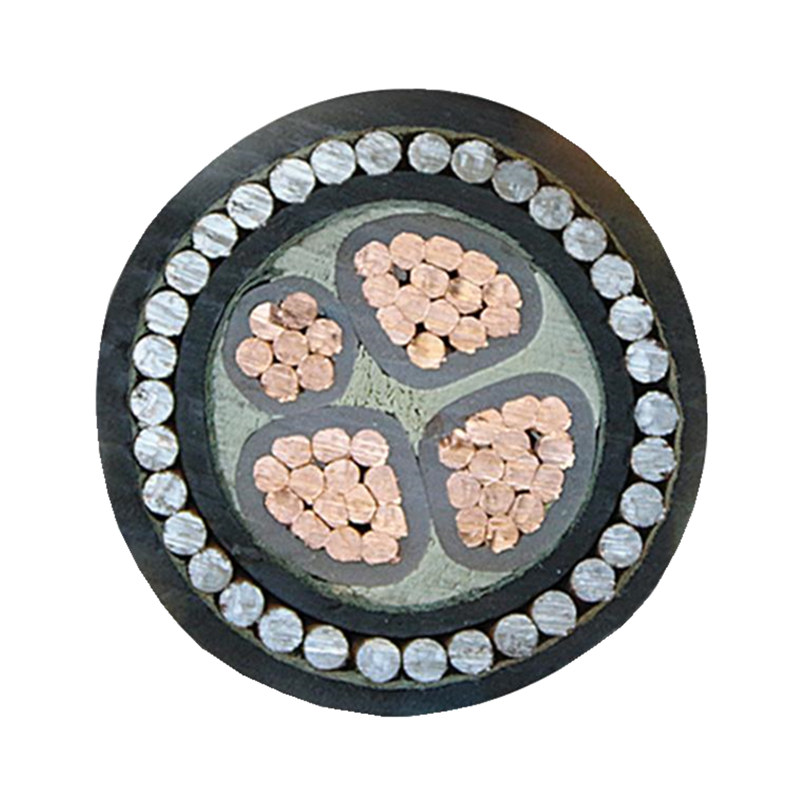

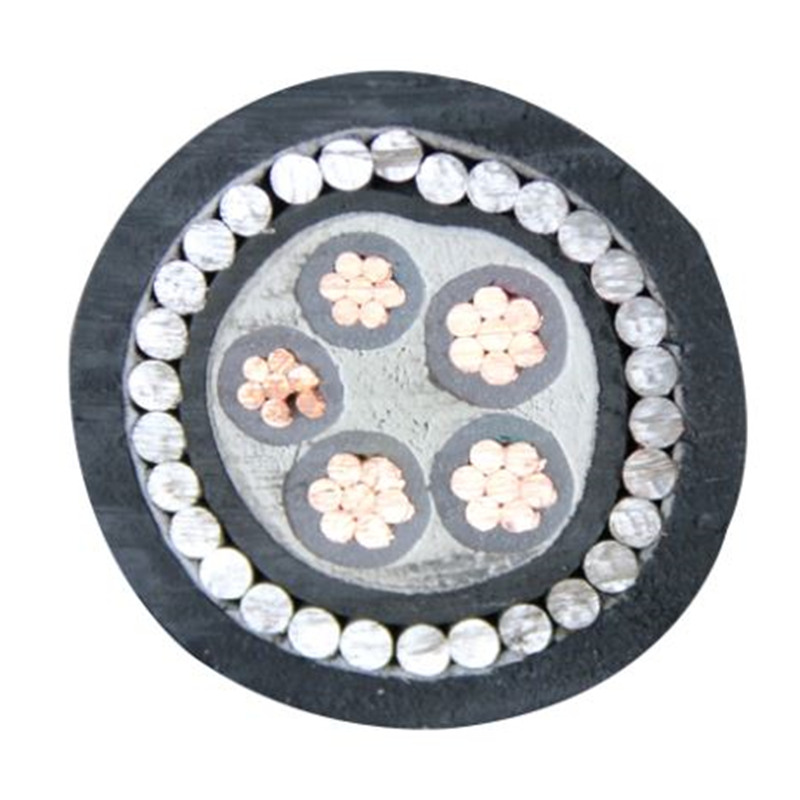

XLPE Insulated Steel Wire Armoured PVC Sheathed YJV32 Power Cables
MAIN KEYWORDS
YJV32 power cable, BS 5467 SWA cable, CV-SWA, CU/XLPE/PVC/SWA/PVC power cable, XLPE insulated SWA power cable.
APPLICATION CHARACTERISTICS
XLPE Insulated Steel Wire Armored PVC Sheathed YJV32 Power Cables, copper conductor, XLPE insulation, PVC inner sheath, steel wire armoured, PVC out sheath, U0/U: 0.6/1kV.
It applies to electrical power transmission and distribution lines with AC rated voltage U0/U up to and including 0.6/1kV. For outdoor and indoor installation in damp and wet locations, laid directly in the ground where excessive mechanical stresses are present in sloping and moving terrains and in vertical or inclined laying, as well as in locations susceptible to sliding.
PRODUCTS STRUCTURE
---Conductor Material
Plain annealed copper wire, solid class 1, or strand class 2.
---Insulation Material
XLPE (cross-linked polyethylene)
---Insulation Color
1C: brown, blue, red, yellow, green, black, or others.
2C: brown, blue
3C: brown, blue, yellow/green
4C: brown, blue, black, yellow/green,
5C: brown, blue, black, grey, yellow/green
Remark: the insulated color is nature, and close to transparent, then it with a colored tape.
---Filler Material
Fiberglass tape.
---Cabling Material
Non-woven fabrics
---Inner Sheath Material
PVC (Polyvinyl chloride)
---Armored Material
Galvanized steel wire
---Sheath Material (out insulation)
PVC (polyvinyl chloride)
---Sheath Color
Black, or others.
---Core Number
2～5 cores, 2C～5C.
---Voltage Rate (U0/U)
0.6/1kV, 600/1000V (Um: 1.2kV).
---Working Temperature
-15℃～+90℃.
---Minimum Bending Radius
Fixed: 20 x Out Diameter.
---Production Standard
GB/T 12706, IEC 60502, BS 5467
---Products Delivery
Within 15-20 working days as soon as we received the deposit.
REMARK
---The above information is only for
you reference, for the formal technical data, please refer to the actual cables.
---The product can have flame retardant, fire-resistant
or Low Smoking Zero Halogen properties, but the production process and insulation materials maybe has
a few of different.
---For the YJV32 power cable, according
to the practice, the common specification is 70～240 mm2.
---The OEM or OBM service
will be accepted, but the customer should be provided the authorization letter to
us in advance, and the authorization letter must be true and valid.
---Electricaltech Cable:
Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.
---Electricaltech Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
