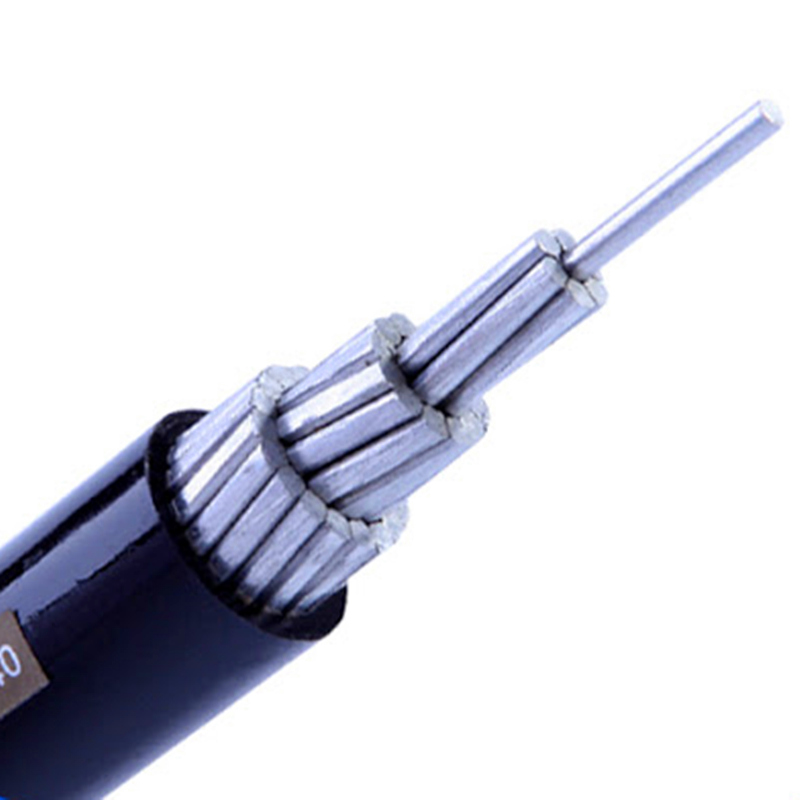

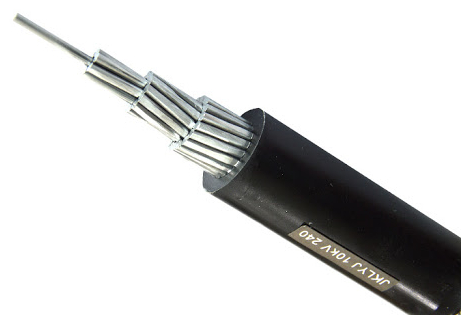

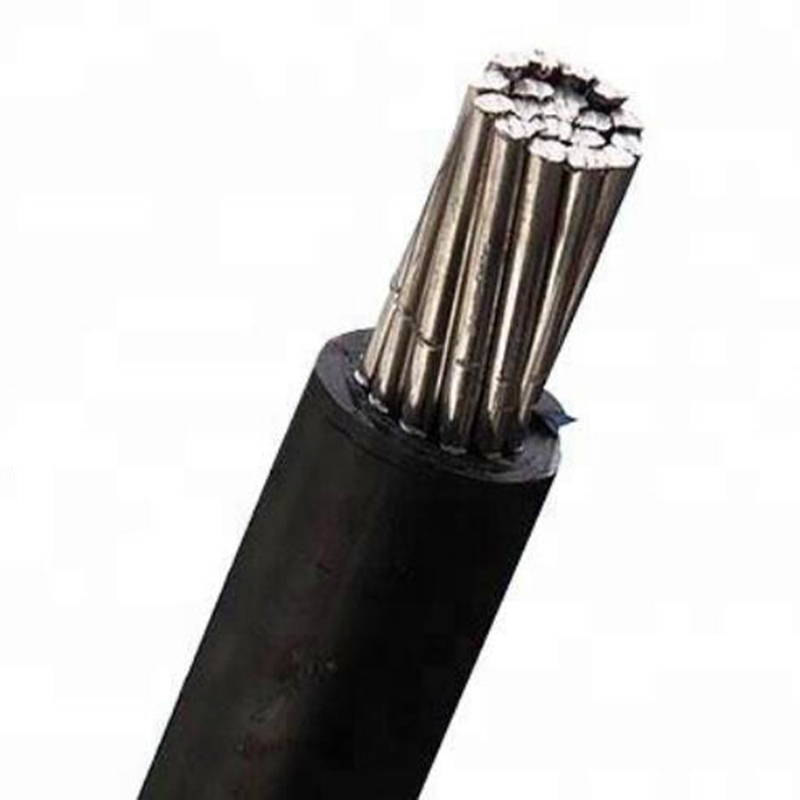

10kV Aluminum Conductor XLPE Insulated Aerial Cables, it is composed of compacted copper and aluminum (aluminum alloy) conductor, inner shielding layer, fireproof insulating material and outer shielding layer.
Brand:
ElectricaltechItem NO.:
XTD--Aerial-02Order(MOQ):
10000 metersPayment:
T/T 30% the deposit, the balance will be paidMarket Price:
$/M 0.28Price:
$0.2/0.25Product Origin:
Hubei, China.Color:
Black or othersShipping Port:
Wuhan, Shanghai, Shenzhen, Guangzhou, or other Chinese port.Lead Time：
Within 10-15 working days as soon as weWeight：
120 KG/KM10kV Aluminum Conductor XLPE Insulated Aerial Cables
PRODUCTS KEYWORDS
JKLYJ cable, 10kV aerial insulated cable, MV aerial insulated cable, medium voltage ABC cable, xlpe insulated aerial cable, aluminum conductor XLPE insulated aerial cable.
PRODUCTION APPLICATION
Electricaltech brand 10kV Aluminum Conductor XLPE Insulated Aerial Cables, it is composed of compacted copper and aluminum (aluminum alloy) conductor, inner shielding layer, fireproof insulating material and outer shielding layer. Compared with bare wires, this product has the advantages of small spacing, high safety and reliability, and excellent anti-atmospheric aging performance, etc. It is the most suitable product for the newly designed and constructed transmission lines of 10KV and below.
PRODUCTS STRUCTURE

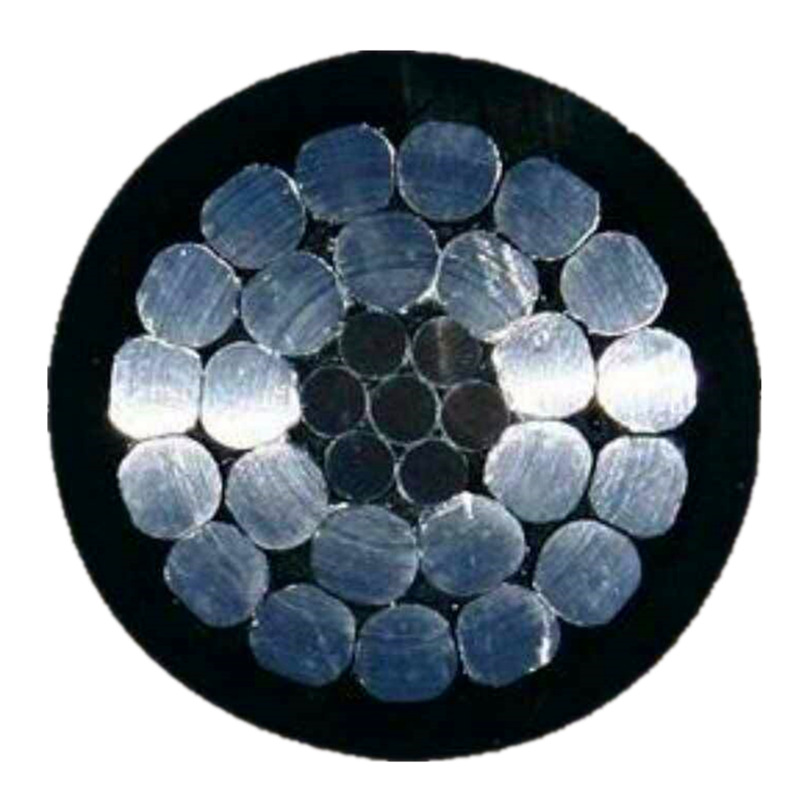

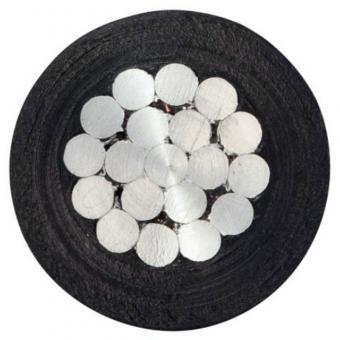

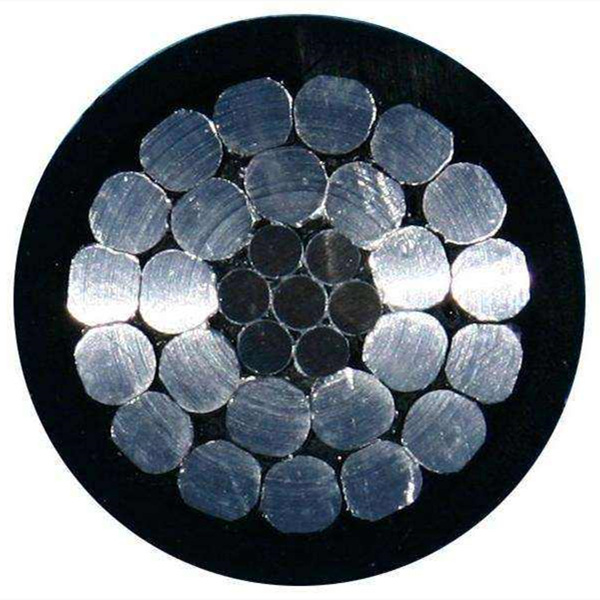

---Conductor Material
Plain annealed aluminum wire, meet to IEC 60228, GB/T 3955.
---Insulation Material
XLPE (cross-linked polyethylene)
---Insulation Color
Black, or natural color.
---Sheath Material
Single core: non-sheath,
3 cores or above: PVC or HDPE
---Core Number
Single core, 1C, 3 cores, 4 cores, 3C + earth.
---Voltage Rate (U0/U)
10kV.
---Working Temperature
-20℃～+90℃.
---Max. Temperature at Short Circuit (less than 5 seconds)
PVC: 160℃ HDPE: 150℃ XLPE: 250℃
---Installation Temperature
-20℃ ～+40℃
---Minimum Bending Radius
12 x Overall Diameter.
---Production Standard
GB/T 12527-2008, GB/T 14049-2008, ASTM B-230, ASTM B-232
---Product Packing
Wooden drum.
---Product MOQ
10000 meters.
---Production Delivery
Within 10-20 working days as soon as we received the deposit.
REMARK
---The above information is only for you reference, the formal data, please refer the actual product testing.
---Highest working temperature of cable in case of short circuit, the longest lasting time is not over 5 seconds: PVC insulated ≤160℃, XLPE insulation ≤250℃.
---When the cable is applied to a dc system, the rated voltage of the system shall not be greater than 1.5 times the cable rating; the operating voltage of the system shall not be greater than 1.1 times the rated voltage of the system.
---The product can have flame retardant and fire-resistant properties, the working temperature can be 90 degree, but the production process, materials and production standard maybe has a few of different.
---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.
---Electricaltech Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.
---Electricaltech Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
