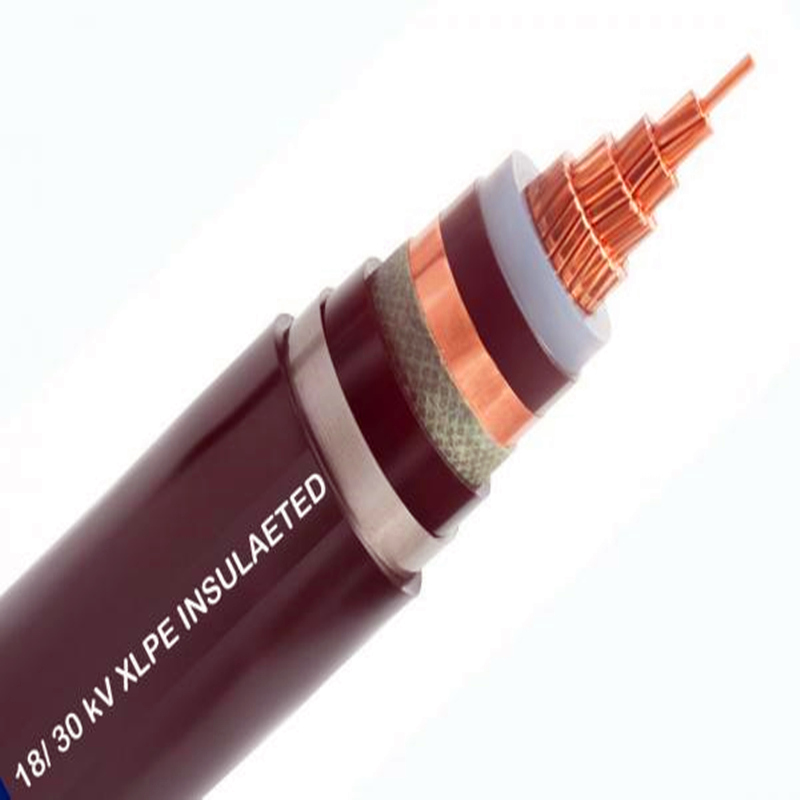

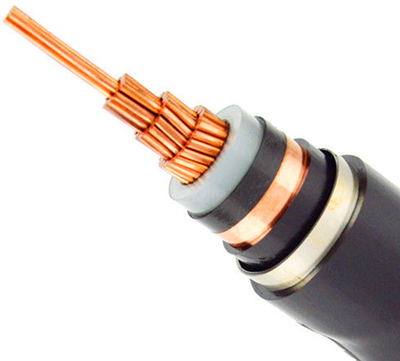

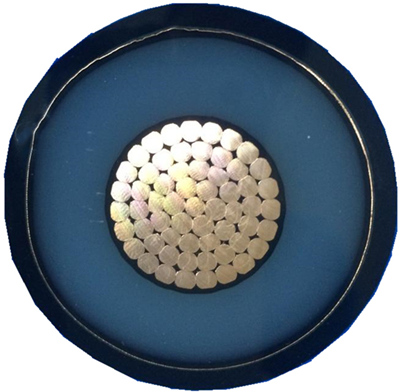

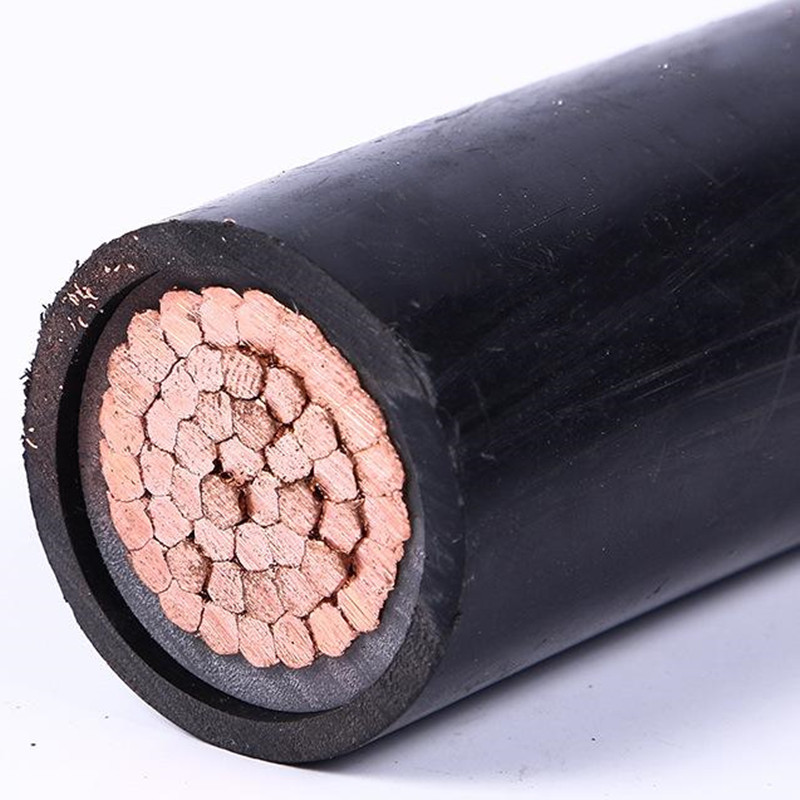

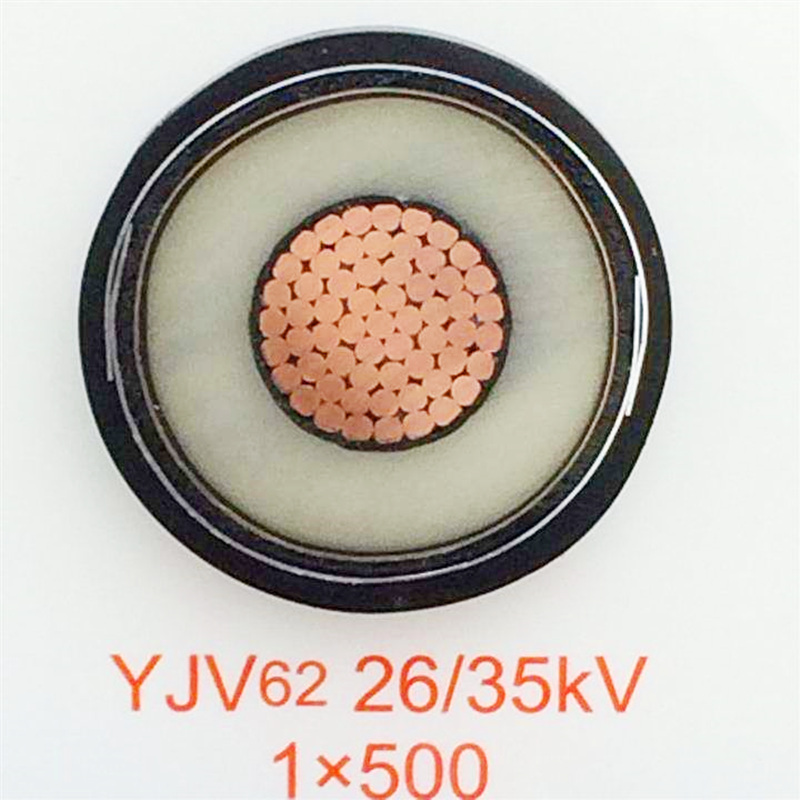

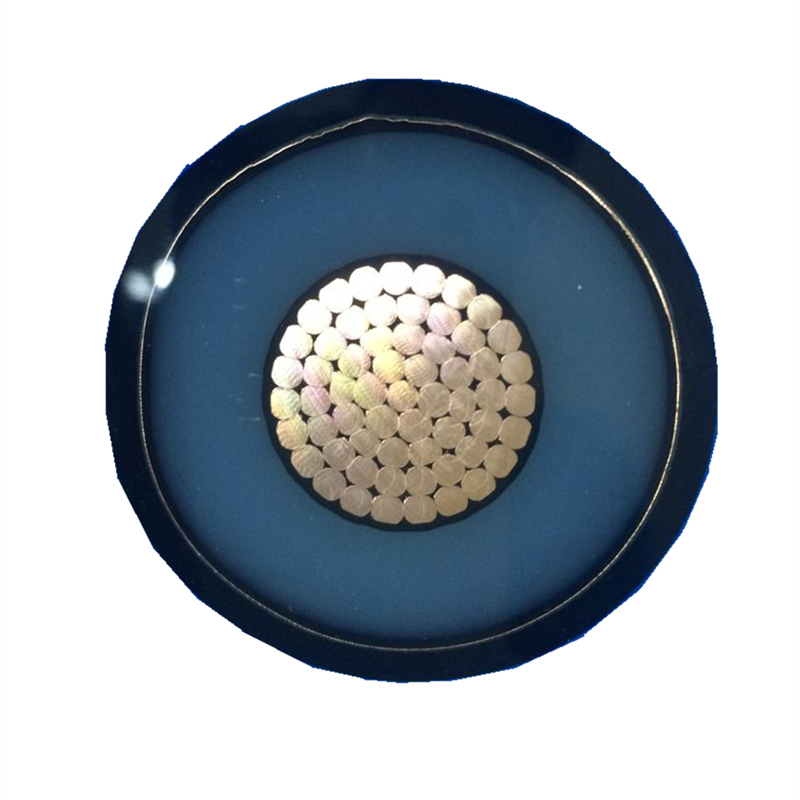

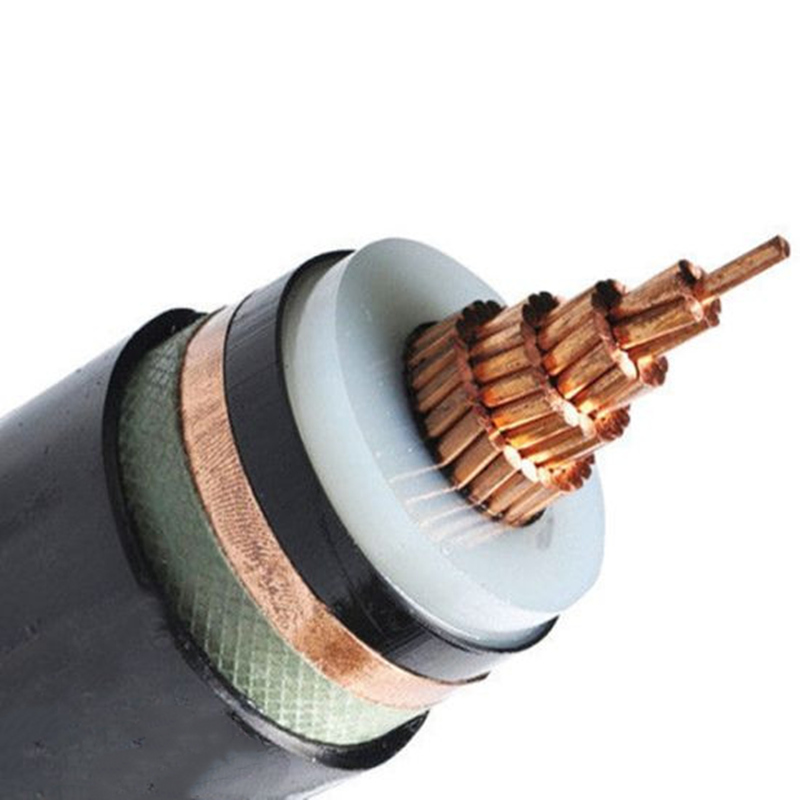

Single core Medium Voltage Power Cables

Single core Medium Voltage Power Cables, 3.6/6kV～26/35kV, CU/XLPE/PVC/PVC, CU/XLPE/PVC/STA/PVC, CU/XLPE/PVC/SWA/PVC. Compacted stranded copper conductor, Colored tape under the screen, XLPE insulation,

Semi-conducting layer with a copper tape screen covering each core, PVC inner sheath, steel tape or steel wire armored

(is optioned), PVC out sheath. The cable can be complied with GB/T 12706, IEC 60502, BS 6622, VDE 0276 and other standard.

Brand:
Electricaltech
Item NO.:
XTD-MV Cable-01
Order(MOQ):
200 meters
Payment:
T/T 30% the deposit, the balance will be paid
Market Price:
$/M 68.88
Price:
$65.88/66.88 per meter
Product Origin:
Hubei Province, China.
Color:
Black or others.
Shipping Port:
Wuhan, Shanghai, Guangzhou, Shenzhen, or other Chinese port.
Lead Time：
Within 15-20 working days as soon as we
Weight：
1030 KG/KM

Inquiry now

Product Detail

Single Core Medium Voltage Power Cables

MAIN KEYWORDS

Single core medium voltage power cable, N2XSY power cable, BS 6622 XLPE-PVC power cable,

BS 7835 XLPE-LSZH power cable, 8.7/10kV 8.7/15kV 26/35kV and other MV power cable with voltage rate.

APPLICATION CHARACTERISTICS

Single core medium voltage power cable, copper wire or aluminum wire conductor, semi-conductive screened tape, XLPE insulated, semi-conductive screened tape, PVC inner sheath, copper tape screened, PVC inner sheath, steel tape or steel wire armored (armored material is optioned), PVC out sheath, U0/U: 3.6/6kV～26/35kV. Medium voltage power cable is applied to the transmission and distribution lines with rated voltage from 3.6/6kV to 26/35kV, to be laid directly in ground, outdoors, indoors and in cable ducts.

Notice: For the single core power cable, their metallic armored material should be used non-magnetic steel tape or steel wire.

PRODUCTS STRUCTURE

---Conductor Material

Plain annealed compacted stranded copper wire.

---Conductor Identification

Colored tape under the screen

---Insulation Material

XLPE (cross-linked polyethylene).

---Screen Material

Semi-conducting layer with a copper tape screen covering each core

---Bedding Material

PVC (Polyvinyl chloride)

---Armored Material (option)

Galvanized steel tape, or galvanized steel wire.

---Out Sheath Material

PVC (Polyvinyl chloride)

---Sheath Color

Black, or others.

---Core Number

Single core, 1C.

---Voltage Rate (U₀/U)

3.6/6kV～26/35kV

---Working Temperature

-15℃～+90℃.

---Minimum Bending Radius

20 x Out Diameter

---Production Standard

GB/T 12706, IEC 60502, BS 6622, BS 7835, VDE 0276.

---Products Delivery

Within 15-20 working days as soon as we received the deposit.

REMARK

---The above information is only for you reference, for the formal technical data, please refer to the actual cables.

---The product can have flame retardant, fire-resistant or Low Smoking Zero Halogen properties, but the production process and insulation materials maybe has a few of different.

---Fore the single core medium voltage power cable, according to the practice, the common specification is 95～300 mm².

---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.

---Electricaltech Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.

---Electricaltech Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
