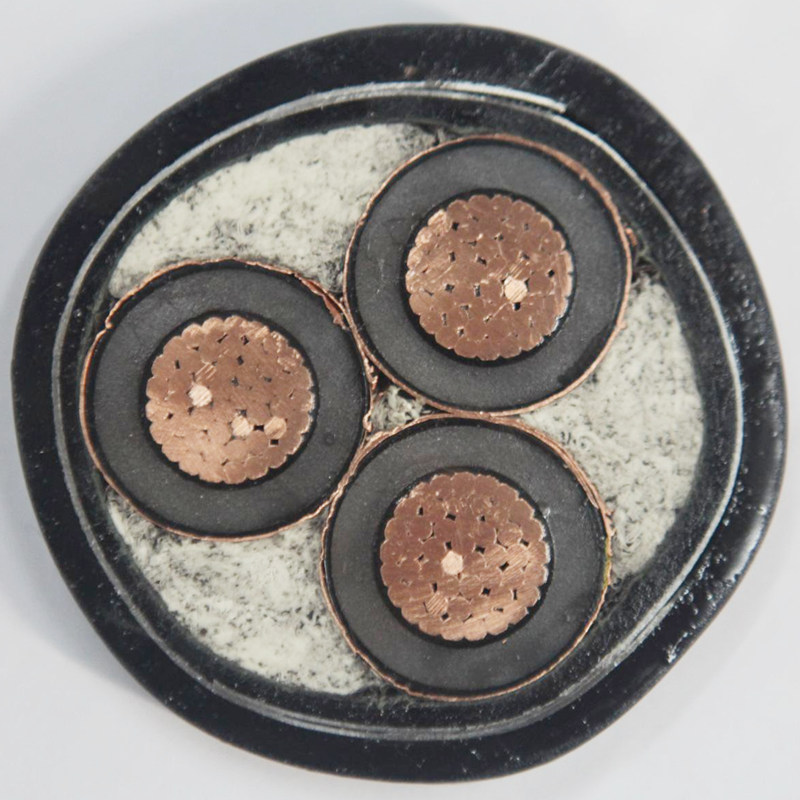

3 cores Medium Voltage Power Cables, 3.6/6kV～26/35kV, CU/XLPE/PVC/PVC, CU/XLPE/PVC/STA/PVC, CU/XLPE/PVC/SWA/PVC. Compacted stranded copper conductor, Colored tape under the screen, XLPE insulation,
Semi-conducting layer with a copper tape screen covering each core, PVC inner sheath, steel tape or steel wire armored
(is optioned), PVC out sheath. The cable can be complied with GB/T 12706, IEC 60502, BS 6622, BS 7835, VDE 0276 and other standard.
Brand:
ElectricaltechItem NO.:
XTD-MV Cable-02Order(MOQ):
200 metersPayment:
T/T 30% the deposit, the balance will be paidMarket Price:
$/M 88.88Price:
$66.88/88.66 per meterProduct Origin:
Hubei Province, China.Color:
Black or others.Shipping Port:
Wuhan, Shanghai, Guangzhou, Shenzhen, or other Chinese port.Lead Time：
Within 15-20 working days as soon as weWeight：
8700 KG/KM

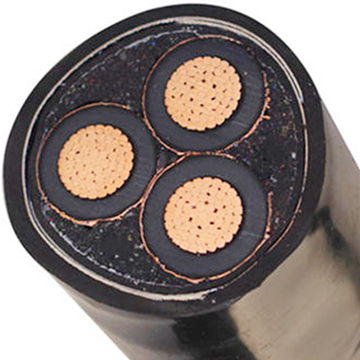

3 Cores Medium Voltage Power Cables
MAIN KEYWORDS
3 cores medium voltage power cable, N2XSY power cable, BS 6622 XLPE-PVC power cable,
BS 7835 XLPE-LSZH power cable, 8.7/10kV 8.7/15kV 26/35kV and other MV power cable with voltage rate.
APPLICATION CHARACTERISTICS
3 cores medium voltage power cable, copper wire or aluminum wire conductor, semi-conductive screened tape, XLPE insulated, semi-conductive screened tape, PVC inner sheath, copper tape screened, PVC inner sheath, steel tape or steel wire armored (armored material is optioned), PVC out sheath, U0/U: 3.6/6kV～26/35kV.
Medium voltage power cable is applied to the transmission and distribution lines with rated voltage from 3.6/6kV to 26/35kV, to be laid directly in ground, outdoors, indoors and in cable ducts.

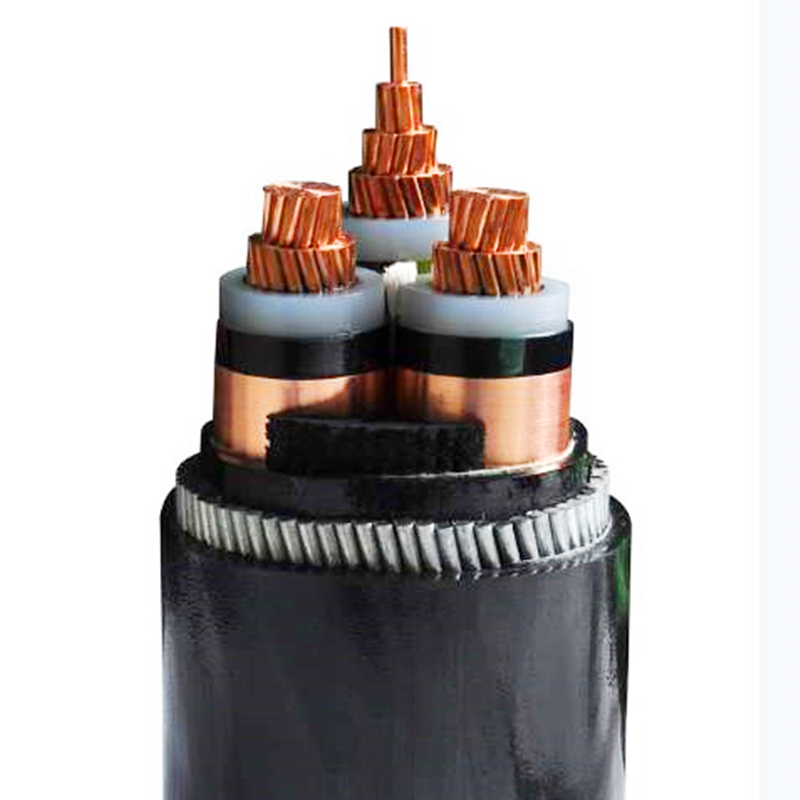

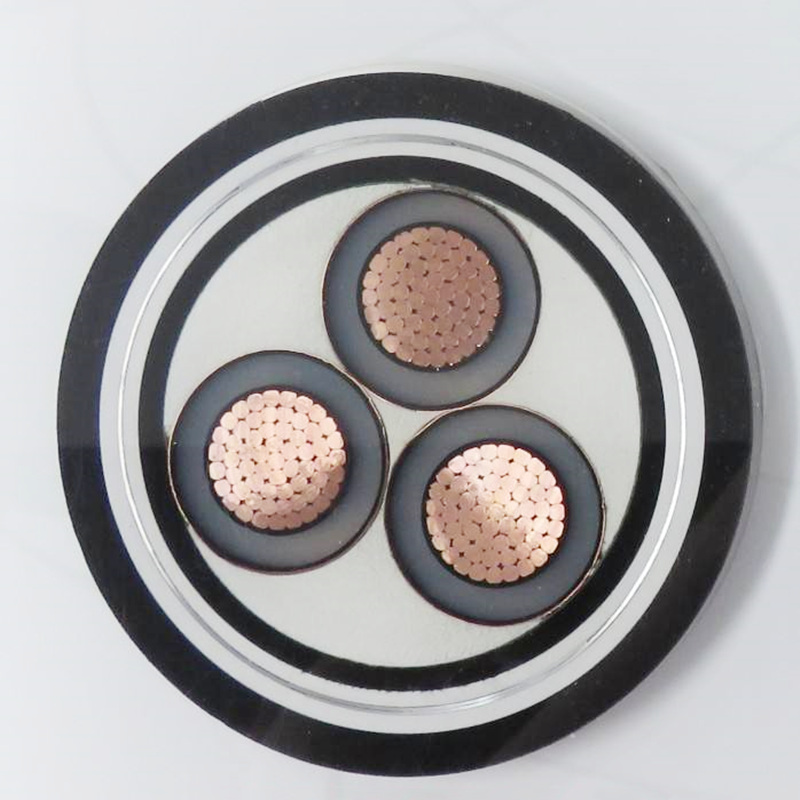

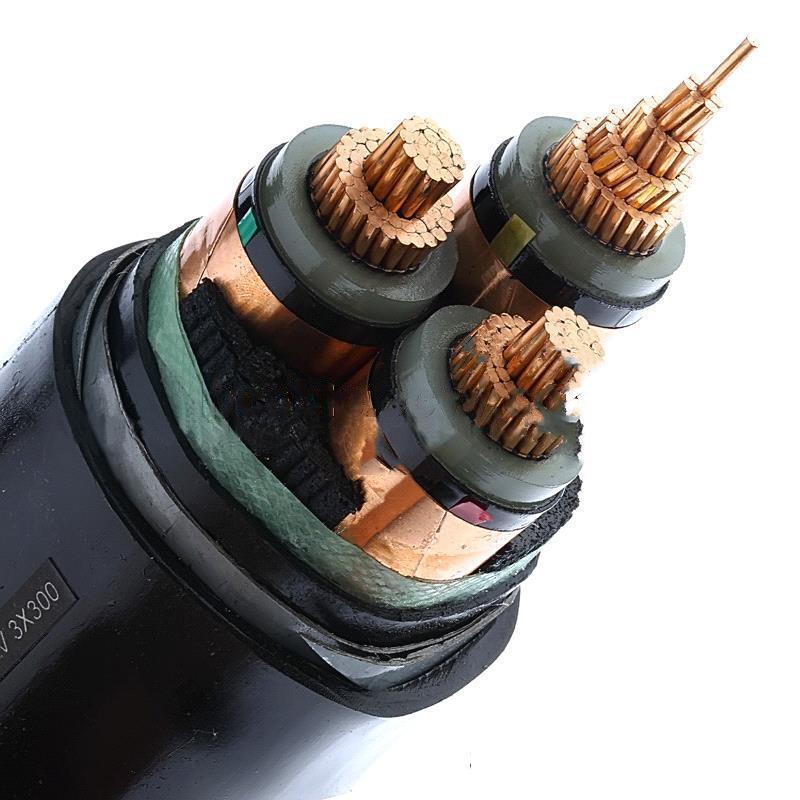

PRODUCTS STRUCTURE
---Conductor Material
Plain
annealed compacted stranded copper wire.
---Conductor Identification
Colored tape under the screen
---Insulation Material
XLPE (cross-linked
polyethylene).
---Screen Material
Semi-conducting
layer with a copper tape screen covering each core
---Bedding Material
PVC (Polyvinyl
chloride)
---Armored Material (option)
Galvanized steel
tape, or galvanized steel wire.
---Out Sheath Material
PVC (Polyvinyl
chloride)
---Sheath Color
Black, or
others.
---Core Number
3 cores, 3C.
---Voltage Rate (U0/U)
3.6/6kV～26/35kV
---Working Temperature
-15℃～+90℃.
---Minimum Bending Radius
20 x Out
Diameter
---Production Standard
---Products Delivery
Within 15-20 working days as soon as we received the deposit.

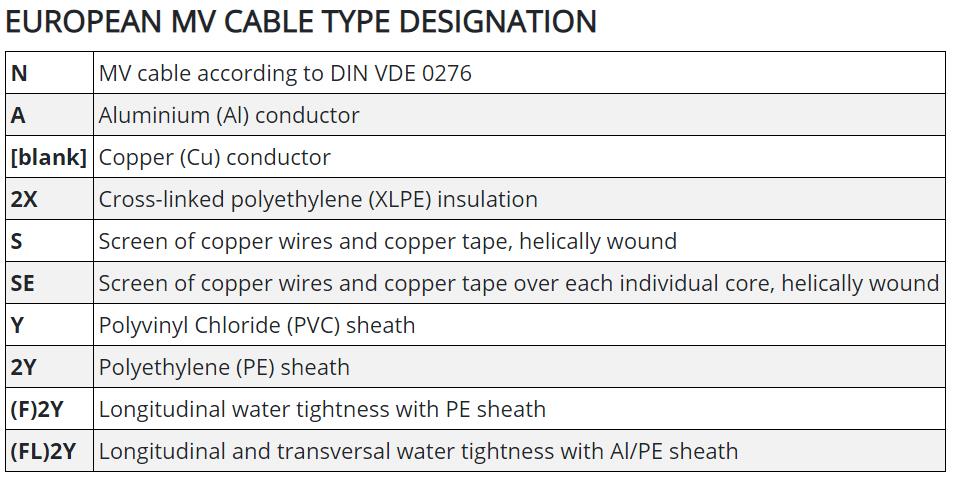

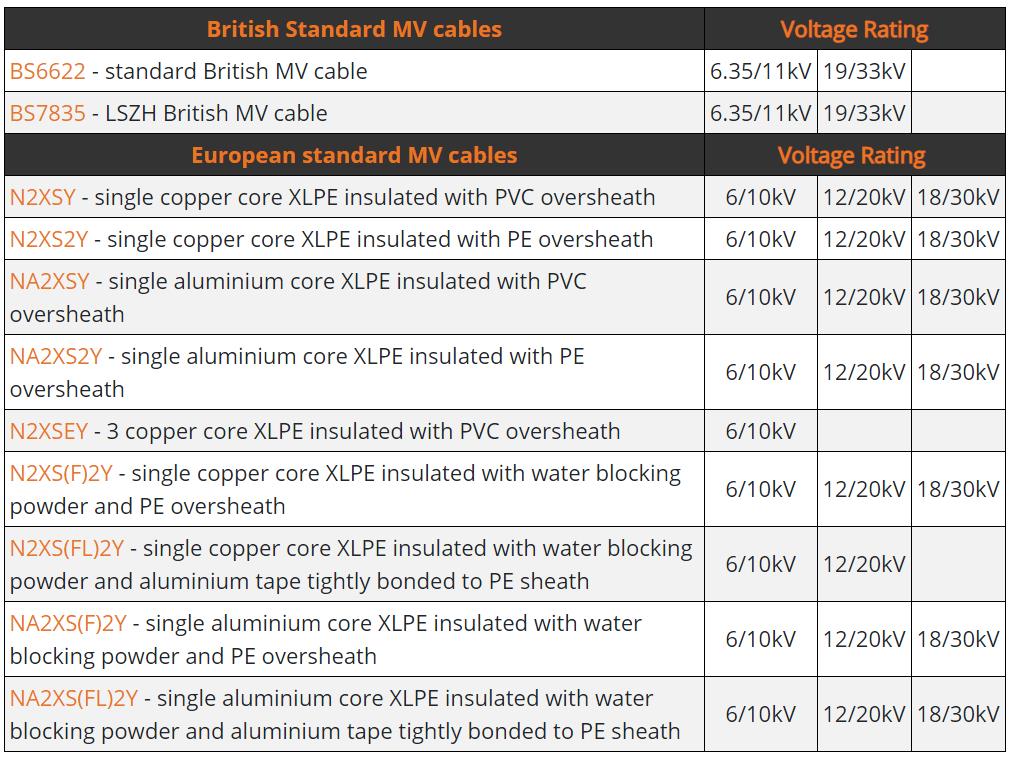

PRODUCTS TYPES
REMARK
---The above information is only for
you reference, for the formal technical data, please refer to the actual cables.
---The product can have flame retardant, fire-resistant
or Low Smoking Zero Halogen properties, but the production process and insulation materials maybe has
a few of different.

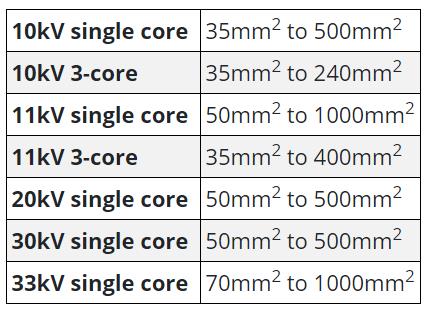

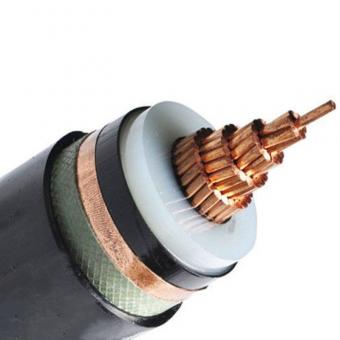

---Fore the single core medium voltage power cable, according
to the practice, the common specification is 95～300 mm2.
---The OEM or OBM service
will be accepted, but the customer should be provided the authorization letter to
us in advance, and the authorization letter must be true and valid.
---Electricaltech Cable:
Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.
---Electricaltech Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
