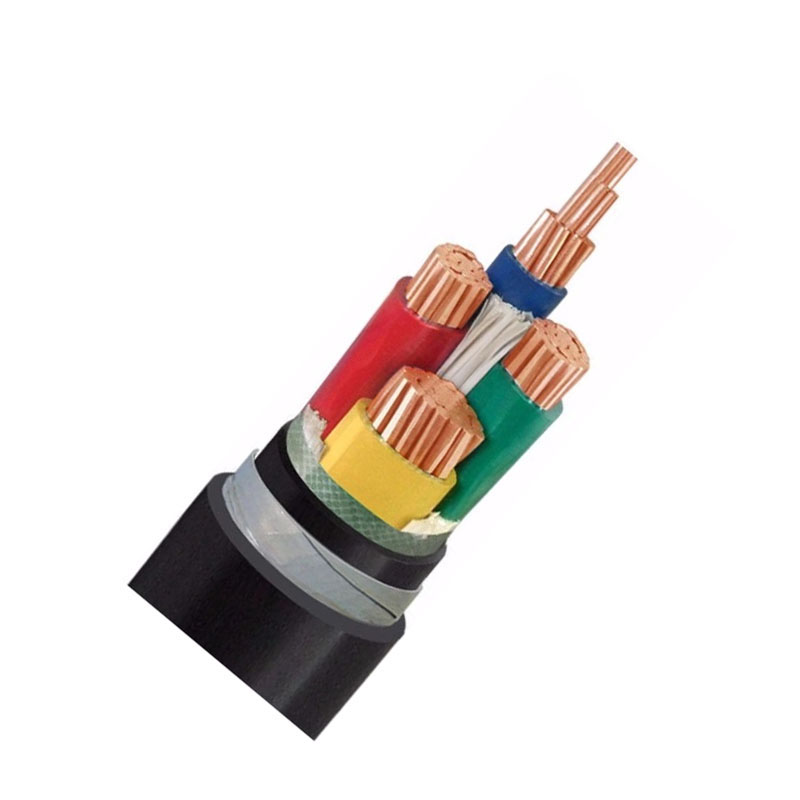

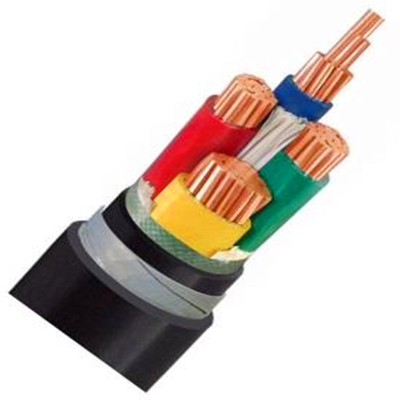

VV22 PVC Insulated STA Armoured PVC Sheathed Power Cables, 0.6/1kV, CU/PVC/STA/PVC, copper wire, PVC insulation, PVC innel sheath (is optioned), steel tape armoured, PVC sheath, meet to GB/T 12706, IEC 60502. The VV22 power cable is suitable for fixed installations, preferably in cable ducts, indoors, outdoors, in water or underground if no mechanical damage is to be expected.
Brand:
ElectricaltechItem NO.:
XTD-VV22-01Order(MOQ):
100 metersPayment:
T/T 30% the deposit, the balance will be paidMarket Price:
$/M 32.88Price:
$28.88/20.88 per meterProduct Origin:
Hubei Province, China.Color:
Black or others.Shipping Port:
Wuhan, Shanghai, Guangzhou, Shenzhen, or other Chinese port.Lead Time：
Within 10-15 working days as soon as weWeight：
1250 KG/KM
VV22 PVC Insulated STA Armoured PVC Sheathed Power Cables
MAIN KEYWORDS
VV22, NYY-STA, NAYY-STA, CU/PVC/STA/PVC power cable, PVC 0.6/1kV power cable.
APPLICATION CHARACTERISTICS
CU/PVC/STA/PVC VV22 power cable, U0/U: 0.6/1kV (Um: 1.2kV), copper conductor, PVC insulation, steel tape armored, PVC sheath, PVC inner sheath is optioned. For laying indoor, tunnel, channel and underground, able to bear external mechanical force. Power cables for fixed installations such as distribution networks or industrial installations. Such as plant engineering, industrial machinery, heating and air-conditioning systems, power stations, stage applications etc.
(1) Armored cables are generally fixed power cables, which are generally fixed in one place and do not move and the power lines transmit electric energy.
(2) In addition to the above purposes, the cable with armor layer can also enhance the tensile strength, compressive strength and other mechanical protection to extend the service life.
(3) Armored cable has a certain resistance to external forces, but also to prevent the rat bite, not through the armored caused power transmission problems, armored bending radius should be large, armored layer can be grounded to protect the cable.

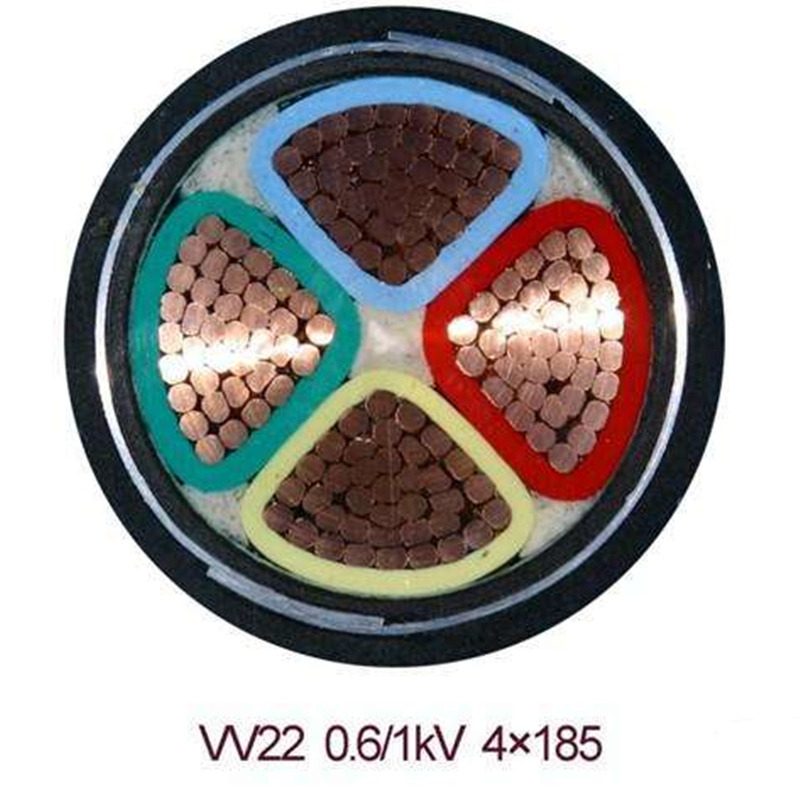

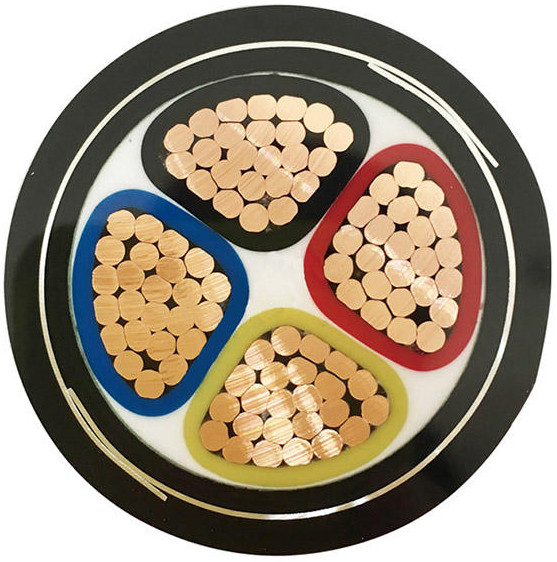

PRODUCTS STRUCTURE
---Conductor Material
Pure annealed copper wire, solid class 1, or strand class 2.
---Insulation Material (inner insulation)
PVC (polyvinyl chloride).
---Insulation Colour
2C: brown, blue
3C: brown, blue, yellow/green
4C: brown, blue, black, yellow/green,
5C: brown, blue, black, grey, yellow/green
Remark: we will choose other colors according to the customer request.
---Filler Material
Fiberglass tape, or PVC (Polyvinyl chloride).
---Cabling Material
Non-woven fabrics
---Armoured Material
Galvanized steel tape.
---Sheath Material (out insulation)
PVC (polyvinyl chloride)
---Sheath Colour
Black, or others.
---Core Number
2～5 cores, 2C～5C.
---Voltage Rate (U0/U)
0.6/1kV, 600/1000V (Um: 1.2kV).
---Working Temperature
-15℃～+70℃.
---Minimum Bending Radius
Fixed: 20 x Out Diameter.
---Production Standard
GB/T 12706, IEC 60502, BS EN/IEC60502, BS 7870, DIN VDE 0276.
---Products Delivery
Within 10-15 working days as soon as we received the deposit.
REMARK
---The above information is only for
you reference, for the formal technical data, please refer to the actual cables.
---The product can have flame retardant, fire-resistant
or Low Smoking Zero Halogen properties, and their working temperature can be 90
& 105 degree, but the production process and insulation materials maybe has
a few of different.
---For the VV22 power cable, according
to the practice, the common specification is 25～300 mm2.
---The OEM or OBM service
will be accepted, but the customer should be provided the authorization letter to
us in advance, and the authorization letter must be true and valid.
---Electricaltech Cable:
Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.
---Electricaltech Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
