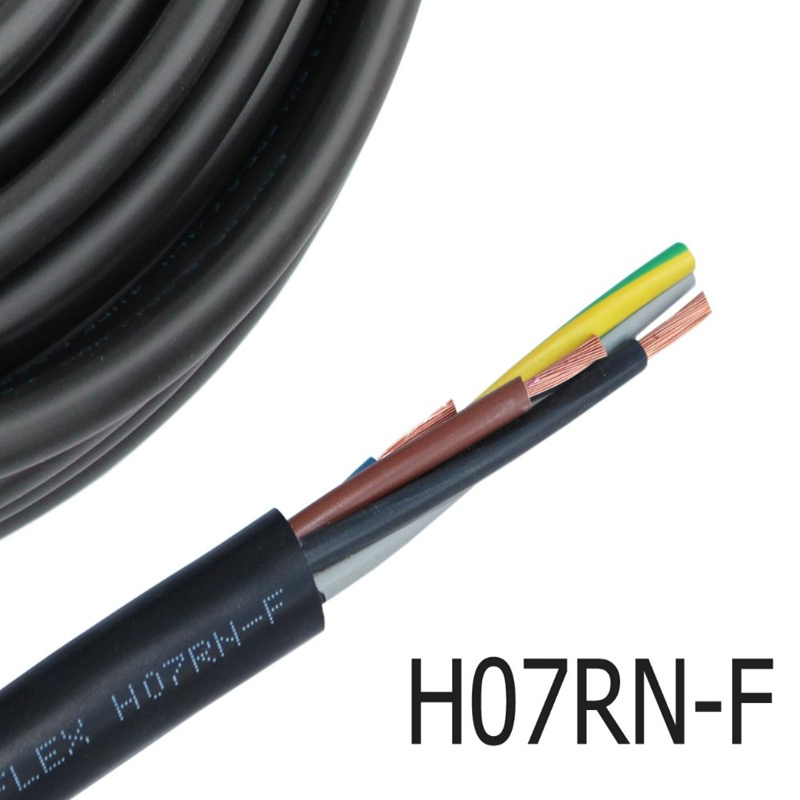

H05RN-F H07RN-F Rubber Cables

H05RN-F H07RN-F Rubber Cables

MAIN KEYWORDS

H05RN-F cables, H07RN-F cable, JB/T 8735 rubber cable, GB/T 5013 rubber cable, YC rubber cable,

PRODUCTS CHARACTERISTICS

Rubber insulated wire and cable has experienced more than 100 years of development history, it is the oldest variety of all wire and cable products, rubber insulated wire and cable is mostly used for mobile and harsh working conditions. With the development of rubber industry, various kinds of synthetic rubber are constantly developed, such as silicone rubber, neoprene rubber, ethylene-propylene rubber, etc., which greatly improves the performance of rubber insulated wire and cable. In addition to the inherent advantages of natural rubber, it also increases oil resistance, cold resistance, heat resistance and other excellent properties.

F – Highlights the fact that the cable has flexible copper conductors within.

PRODUCTS APPLICATION

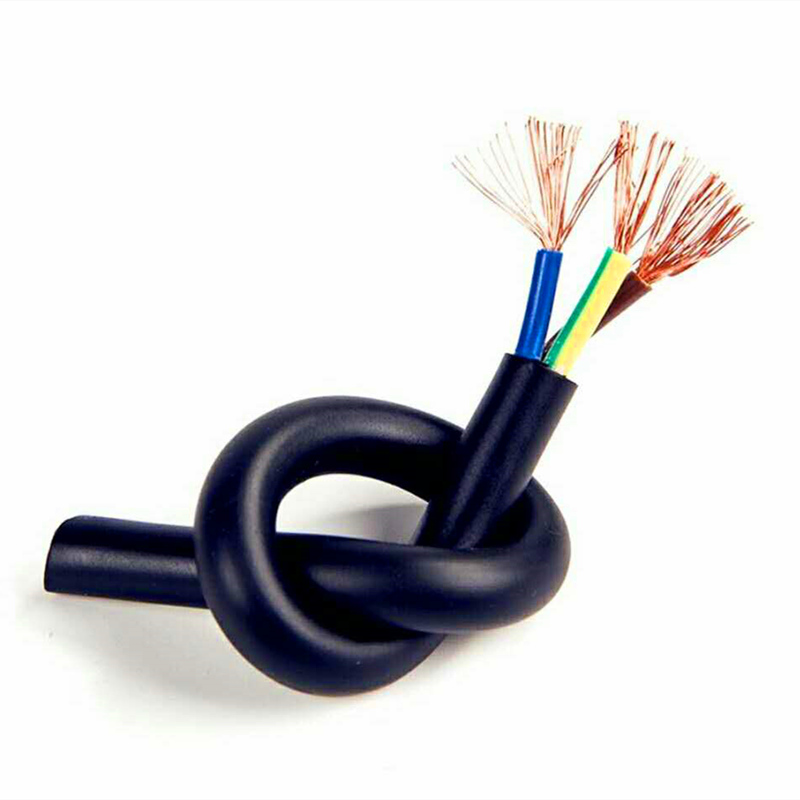

Electricaltech^@ brand rubber cable is designed to provide high flexibility and have the capacity to withstand weather, oil/grease, mechanical and thermal stresses. Applications include handling equipment, mobile power supplies, worksites, stage and audio visual equipment, port areas and dams. Rubber cable also is used in drainage and water treatment, cold environments and severe industrial environments.

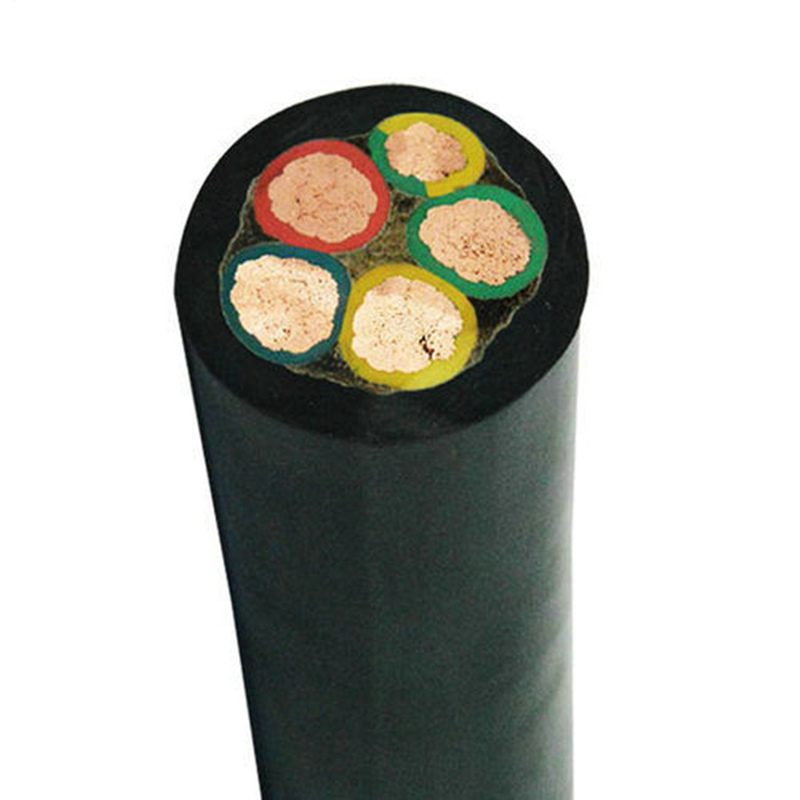

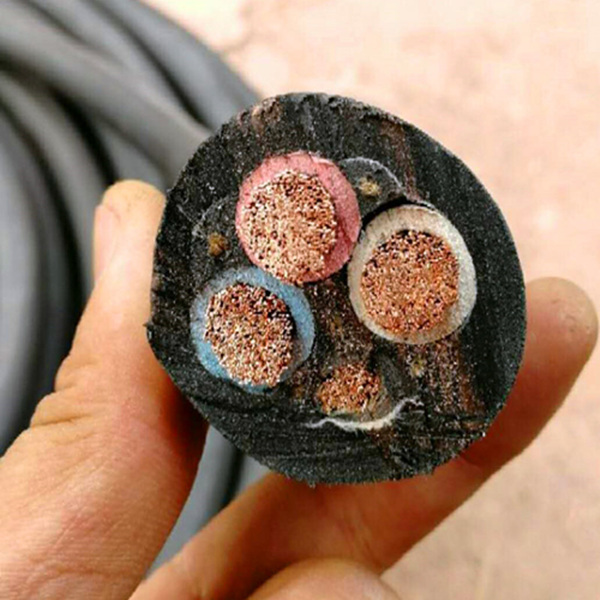

PRODUCTS STRUCTURE

---Conductor Material

    Plain annealed copper wire, strand, class 5.

---Insulated Material

    EPR (Ethylene Propylene Rubber)

---Insulated Color

    1 core: black

    2 cores: blue, brown

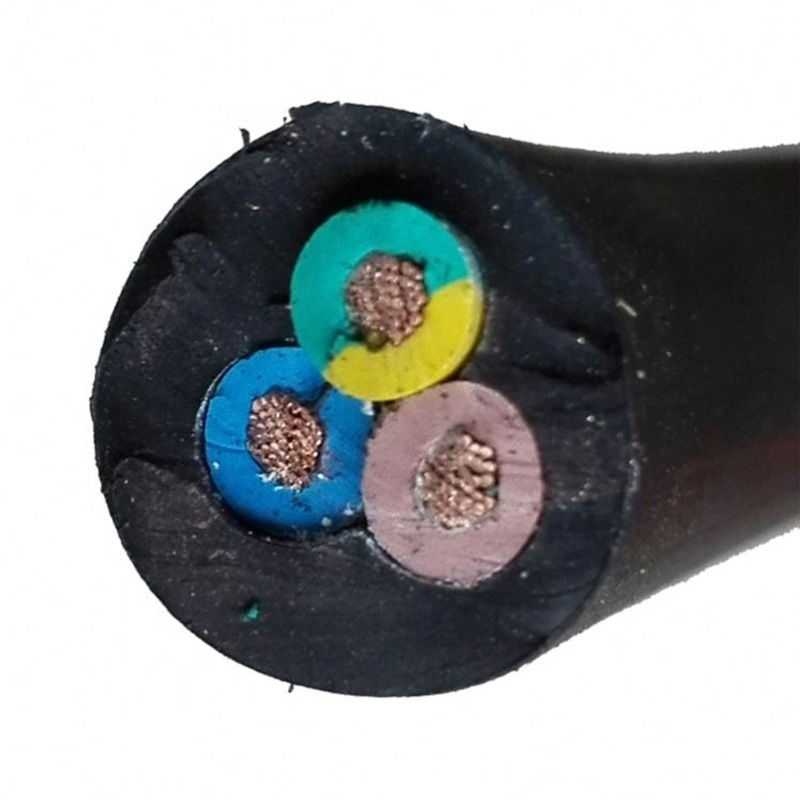

    3 cores: green/yellow, blue, brown.

    4 cores: green/yellow, brown, black, grey.

    5 cores: green/yellow, blue, brown, black, grey.

    6 cores and above: black with white numbers green/yellow.

---Sheath Material

    PCP (polychloroprene)

---Sheath Color

    Black, or according to the customer requirement.

---Voltage Rate

    300/500V, 450/750V

---Temperature Rating

    Fixed: -30～+70°C     Fixed protected installations: +85°C       Flexed: -15～+60°C

---Minimum Bending Radius

    6 x Overall Diameter

---Production Standard

    JB/T 8734-2016, GB/T 5013-2008, BS EN 50525-2-21, IEC 60245, BS 7919, VDE 0282.

---Production Delivery

    Within 5-7 working days as soon as we received the 30% deposit before the shipment.

---Packing Type

   100 meters per roll, plastic reel, plywood drum, wooden pallet, wooden drum or others.

REMARK

---The information contained within this datasheet is for guidance only and is subject to change without notice or liability.

---All the information is provided in good faith and is believed to be correct at the time of publication; when selecting cable accessories, please note that actual cable dimensions may vary due to manufacturing tolerances.

---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.

---Electricaltech Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.

---Electricaltech Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.

---Electricaltech Cable: it is your Production Base, Overseas Warehouse, Purchase Consultant in wire and cable industry.
