Hi Flex PVC insulated Welding Cable, plain annealed flexible copper wire conductor, class 5 or class 6 strand, hi-flex PVC insulation, non-sheath, 450/750V, meet to IEC 60227, GB/T 5023, JB/T 8734.
Brand:
ElectricaltechItem NO.:
XTD-Special-05Order(MOQ):
1000 metersPayment:
T/T 30% the deposit, the balance will be paidMarket Price:
$/M 5.88Price:
$3.88/5.55 per meterProduct Origin:
Hubei Province, China.Color:
Black, red or orange.Shipping Port:
Wuhan, Shanghai, Guangzhou, Shenzhen, or other Chinese port.Lead Time：
Within 5-7 working days as soon as weWeight：
565 KG/KM

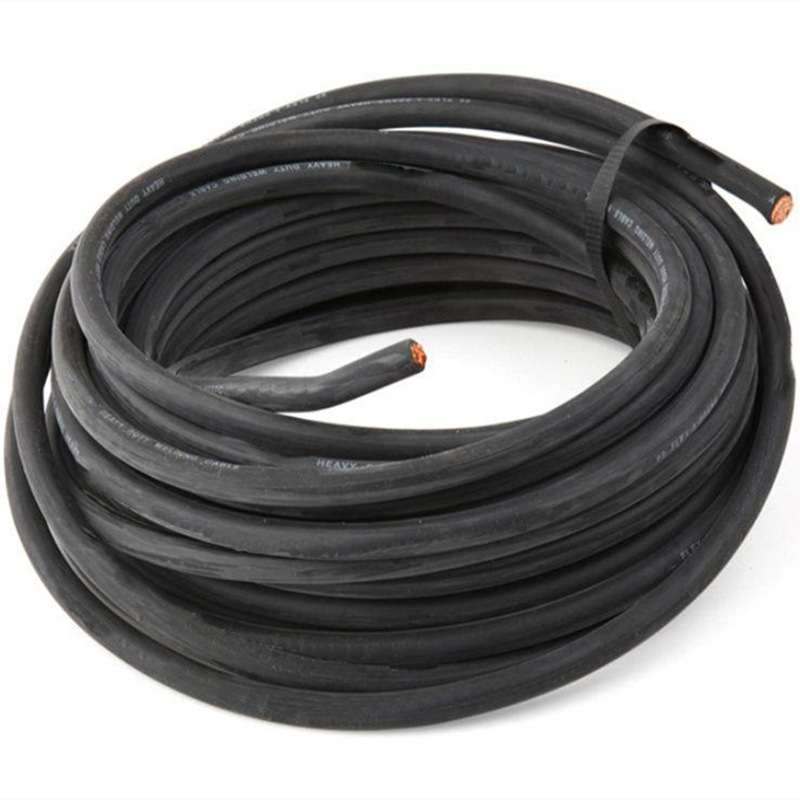

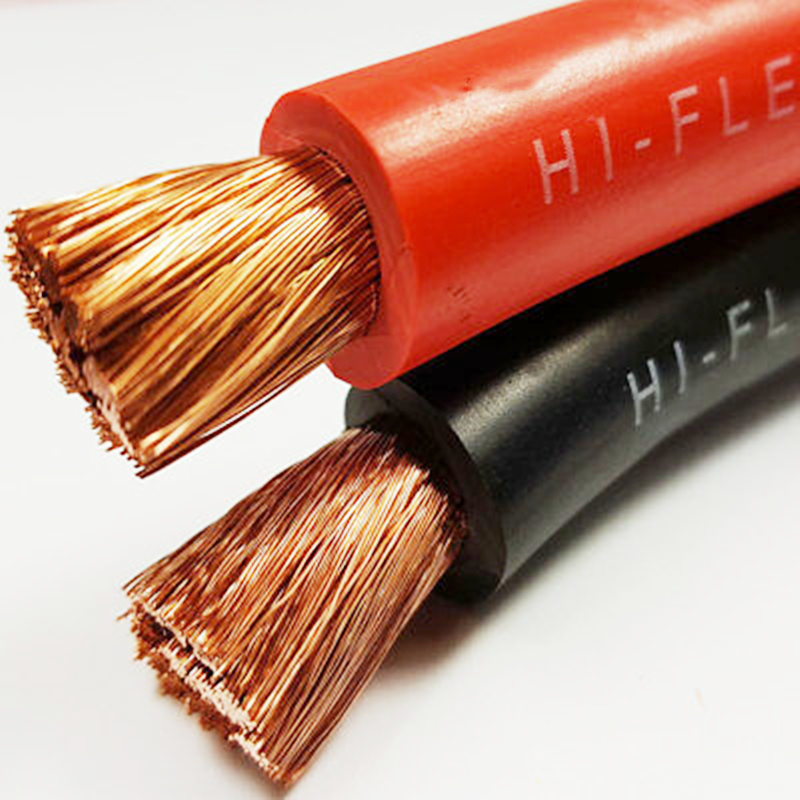

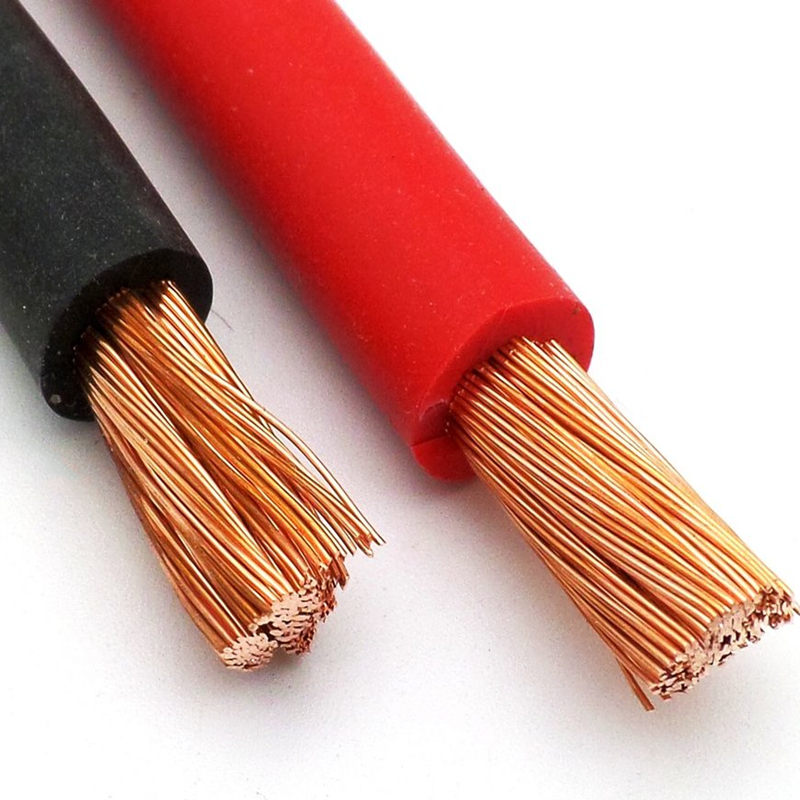

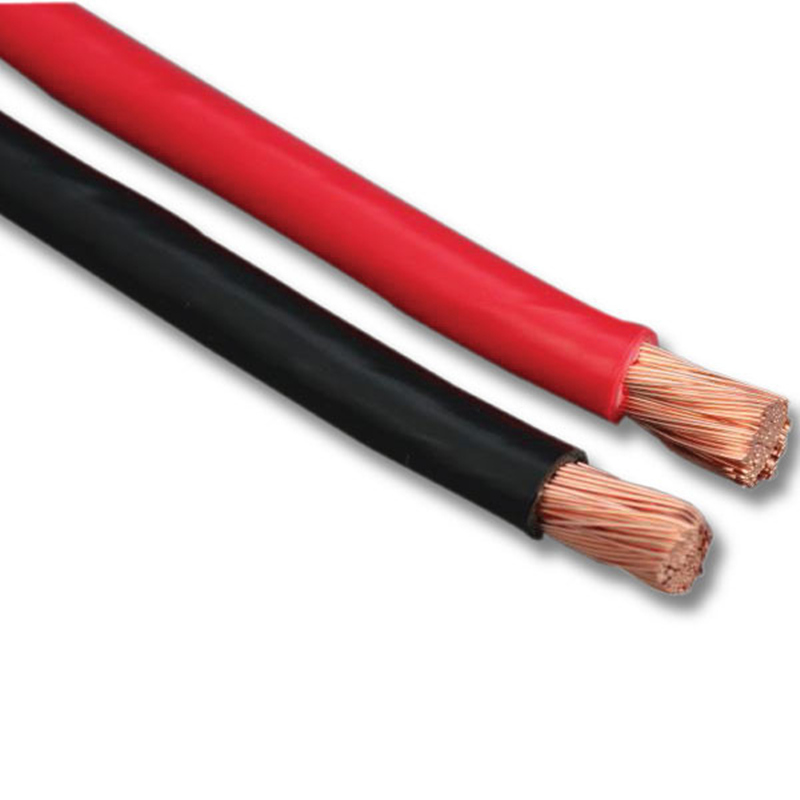

Hi Flex PVC insulated Welding Cable
MAIN KEYWORDS
welding cable, pvc insulated welding cable, hi-flex PVC insulated welding cable, Hi Flex PVC Welding Cable.
PRODUCTS APPLICATION
Electricaltech@ brand Hi Flex PVC insulated Welding Cable, is designed to provide high flexibility and have the capacity to withstand weather, oil/grease, mechanical and thermal stresses. Applications include handling equipment, mobile power supplies, work-sites, stage and audio visual equipment, port areas and dams. Rubber cable also is used in drainage and water treatment, cold environments and severe industrial environments. Easy to use inside visible or embedded piping. Direct burial installation or outdoors in wet environments as well as contact with hot parts is not allowed. It must not be subject to thermic radiation.
PRODUCTS STRUCTURE
---Conductor Material
Plain annealed copper wire, strand, class 5 or class 6.
---Insulated Material
Hi flex PVC (polyvinyl chloride)
---Insulated Color
Black, red, orange, or others.
---Core Quantity
Single Core, 1C.
---Conductor Cross-section
16～120 mm2
---Voltage Rate
450/750V
---Temperature Rating
-5～+70 °C
---Minimum Bending Radius
6 x Overall Diameter
---Production Standard
JB/T 8734-2016, GB/T 5013-2008, GB/T 19666, IEC 60227, BS EN 50265.
---Production Delivery
Within 5-7 working days as soon as we received the 30% deposit before the shipment.
---Packing Type
100 meters per roll, plastic reel, plywood drum, wooden pallet, wooden drum or others.

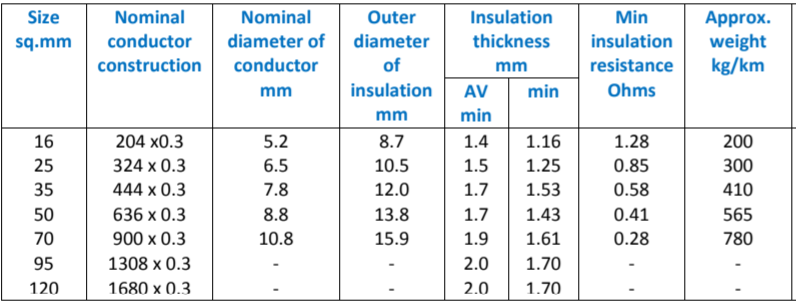

PRODUCTS SPECIFICATION
REMARK
---The information contained within this datasheet is for guidance only and is subject to change without notice or liability.
---All the information is provided in good faith and is believed to be correct at the time of publication; when selecting cable accessories, please note that actual cable dimensions may vary due to manufacturing tolerances.
---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.
---Electricaltech Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.
---Electricaltech Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
---Electricaltech Cable: it is your Production Base, Overseas Warehouse, Purchase Consultant in wire and cable industry.
