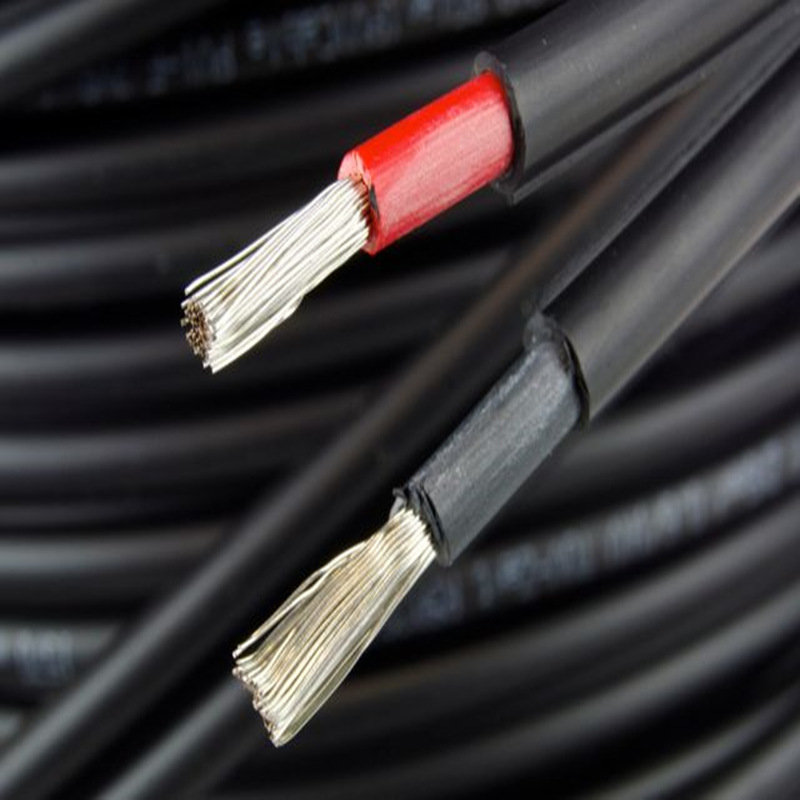

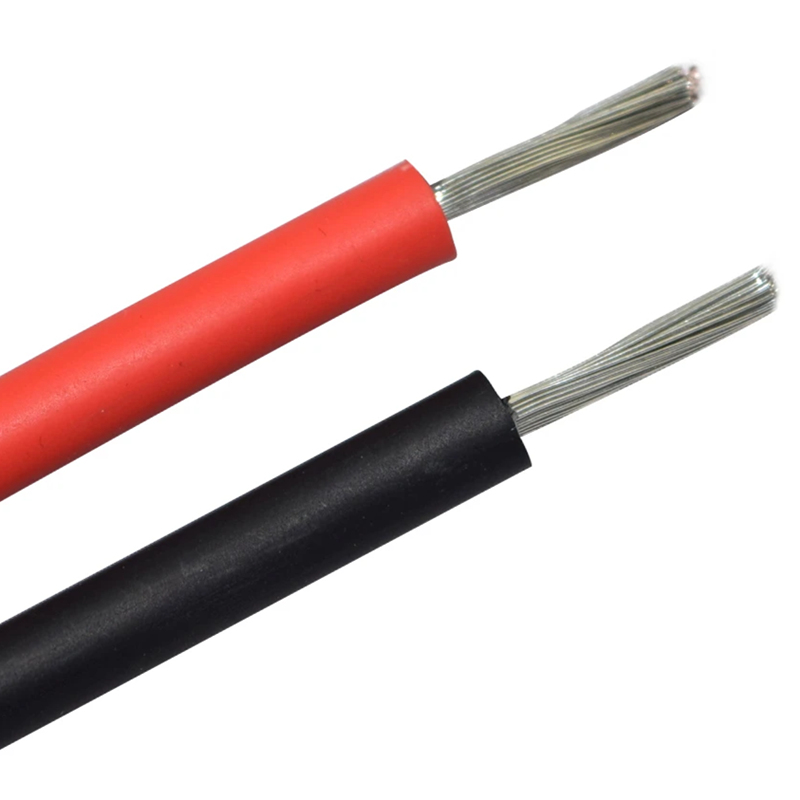

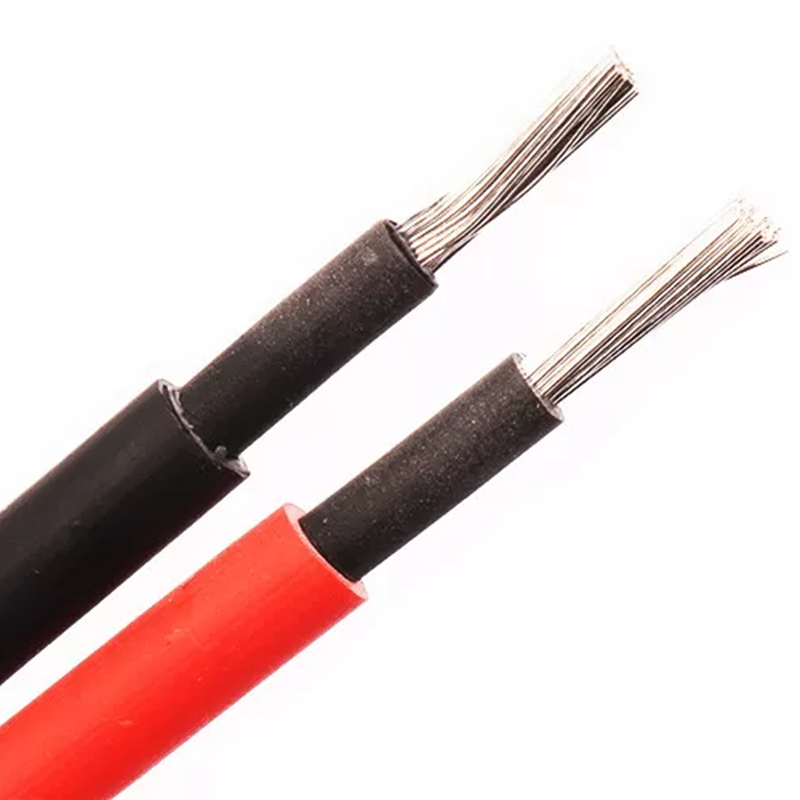

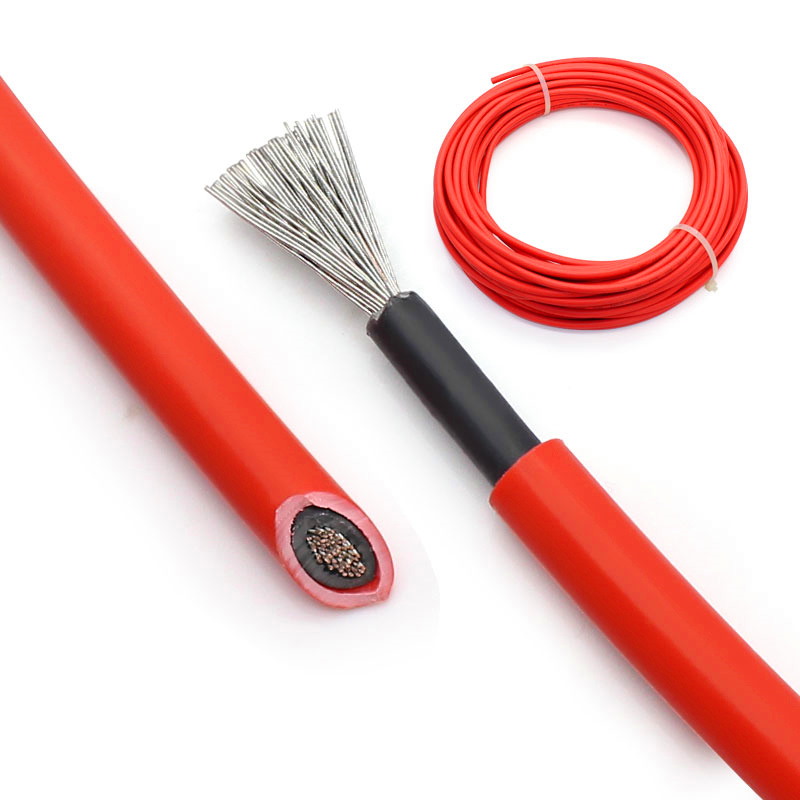

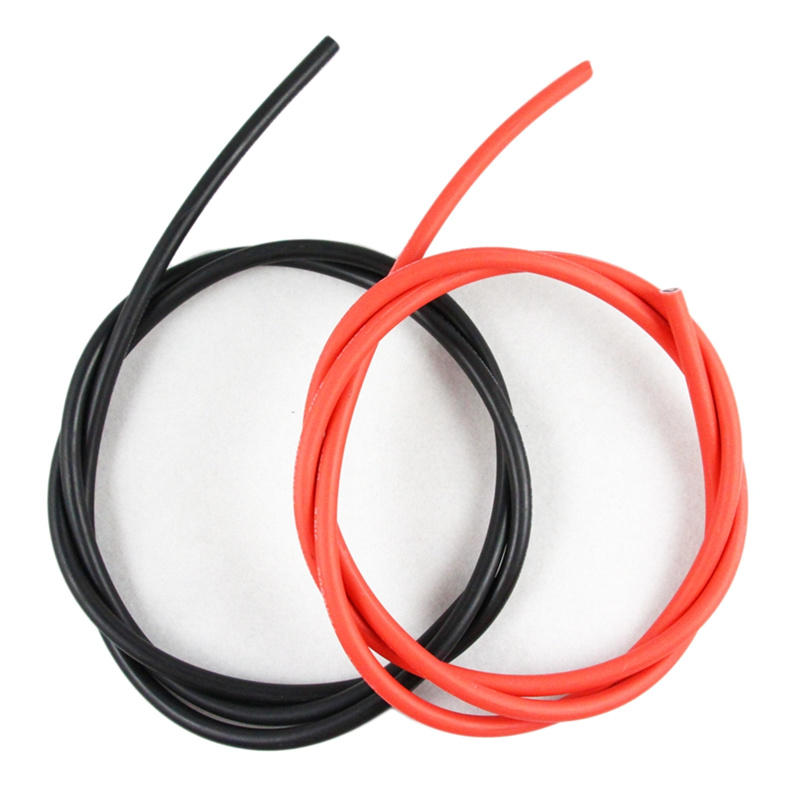

Photovoltaic PV1-F H1Z2Z2-K Solar Cable

Photovoltaic PV1-F H1Z2Z2-K Solar Cable, 0.6/1kV, CU/XLPE/LSZH, tinned annealed copper conductor, XLPE insulation, LSZH sheath, meet to TÜV 2 pfg 1169/08.2007.

Brand:
Electricaltech
Item NO.:
XTD-Special-02
Order(MOQ):
1000 meters
Payment:
T/T 30% the deposit, the balance will be paid
Market Price:
$/M 3.88
Price:
$2.88/3.68 per meter
Product Origin:
Hubei Province, China.
Color:
Black or others.
Shipping Port:
Wuhan, Shanghai, Guangzhou, Shenzhen, or other Chinese port.
Lead Time：
Within 5-7 working days as soon as we
Weight：
130 KG/KM

Inquiry now

Product Detail

Photovoltaic PV1-F H1Z2Z2-K Solar Cable

MAIN KEYWORDS

Solar cable, PV1-F cable, photovoltaic solar cable, H1Z2Z2-K solar cable, TÜV 2 pfg 1169 solar cable.

APPLICATION CHARACTERISTICS

Photovoltaic Solar H1Z2Z2-K Cable, tinned copper conductor, XLPE insulated, LSZH sheath, meet to TÜV 2 pfg 1169-08:2007. The cable is intended for use in Photovoltaic Power Supply Systems: Indoor and/or outdoor, in industrial and agriculture fields. They are suitable for applications in/at equipment with protective insulation (Protecting Class II), in explosion hazard areas and may be installed as well as fixed or freely suspended or free movable. Installation in cable trays, conduits, on and in walls is available.

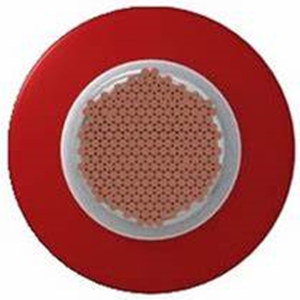

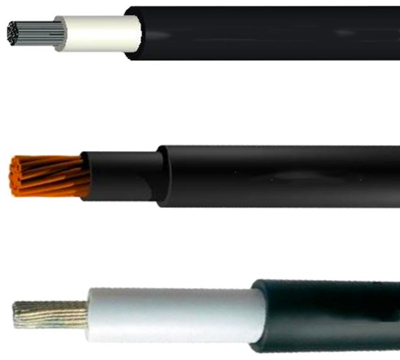

PRODUCTS STRUCTURE

---Conductor Material

Flexible tinned copper wire, strand class 5.

---Insulation Material

XLPE (cross-linked polyethylene), or LSZH (low smoking zero halogen)

---Insulation Color

The color of XLPE insulation is natural, and then a color tape is added outside.

---Sheath Material

LSZH (low smoking zero halogen), flame retardant compound

---Sheath Colour

Black or others

---Core Number

Single core, 1C

---Voltage Rate (U₀/U)

0.6/1kV, 600/1000V

---Maximum Voltage (U_m)

1.8kV DC (conductor, non-earthed system, circuit not under load)

---Test Voltage

6.5kV AC according to BS EN 50395

---Working Temperature

-20℃～+90℃

---Maximum Conductor Temperature

+120°C (for 20000h)

---Minimum Bending Radius

6 x Out Diameter

---Production Standard

TÜV 2 pfg 1169-08:2007, EN 50618, BS EN 50288, BS EN 60068, BS EN/IEC 61034, BS EN 60754-1/2

---Products Delivery

Within 5-7working days as soon as we received the deposit.

REMARK

---The above information is only for you reference, for the formal technical data, please refer to the actual cables.

---For the solar cable, according to the practice, the common specification is 2.5～16 mm².

---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.

---Electricaltech Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.

---Electricaltech Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
