VV32 PVC Insulated SWA Armored PVC Sheathed Power Cables, 0.6/1kV, CU/PVC/PVC/SWA/PVC, copper wire, PVC insulation, PVC inner sheath, steel wire armored, PVC sheath, meet to GB/T 12706, IEC 60502, BS 6346.
Generally speaking, steel wire armored cables have the characteristics of steel tape armored cables, and it can be laid vertically, but steel tape armored cables can only be laid horizontally.
Brand:
ElectricaltechItem NO.:
XTD-VV32-01Order(MOQ):
100 metersPayment:
T/T 30% the deposit, the balance will be paidMarket Price:
$/M 45.25Price:
$38.82/42.58 per meterProduct Origin:
Hubei Province, China.Color:
Black or others.Shipping Port:
Wuhan, Shanghai, Guangzhou, Shenzhen, or other Chinese port.Lead Time：
Within 10-15 working days as soon as weWeight：
3518 KG/KM

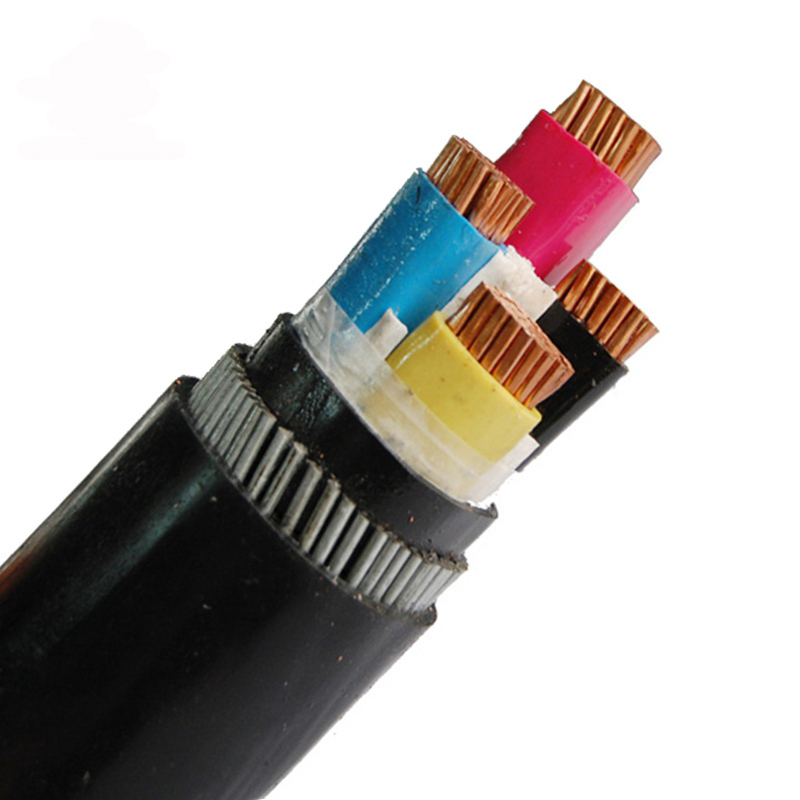

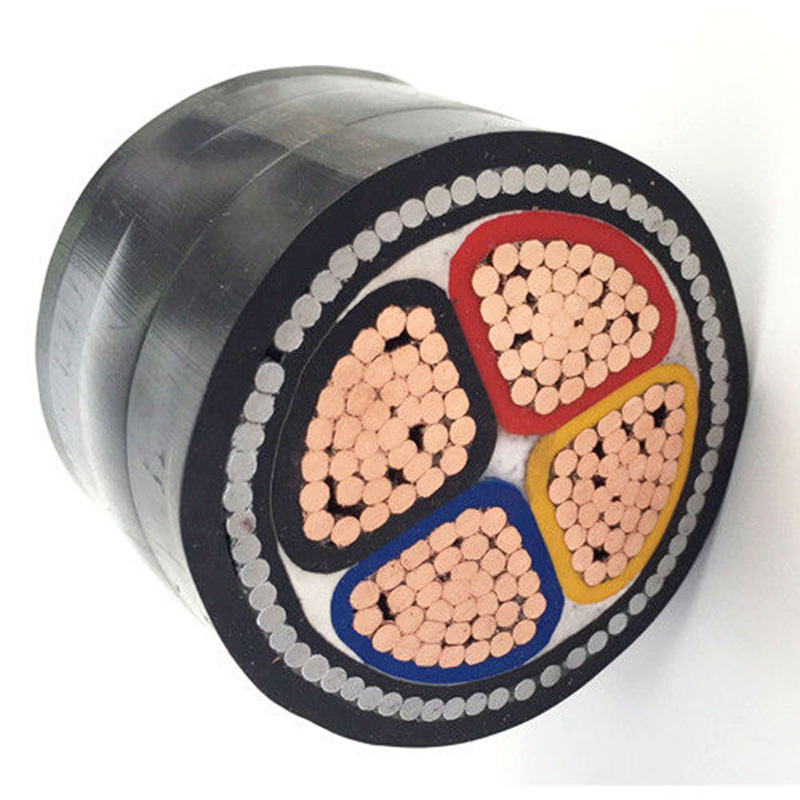

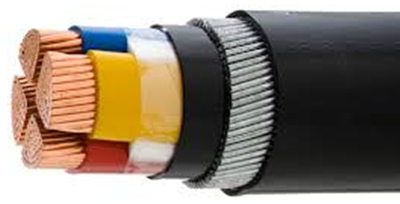

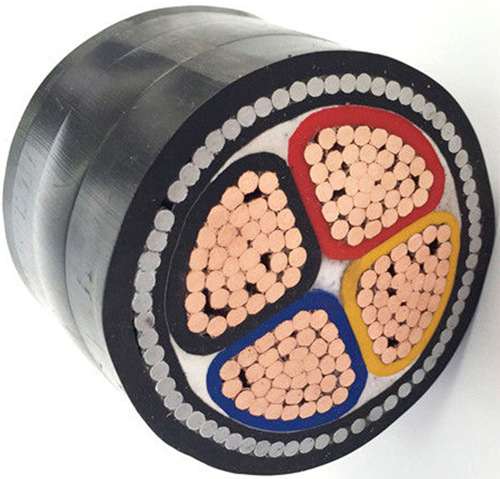

VV32 PVC Insulated SWA Armored PVC Sheathed Power Cables
MAIN KEYWORDS
VV32, NYY-SWA, NAYY-SWA, CU/PVC/PVC/SWA/PVC power cable, BS 6346 SWA power cable.
APPLICATION CHARACTERISTICS
CU/PVC/PVC/SWA/PVC VV32 power cable, copper conductor, PVC insulation, steel wire armored, PVC sheath, PVC inner sheath, U0/U: 0.6/1kV. Multi-core PVC cable with steel wire armored (SWA). Power and auxiliary fixed wiring cables for use in power networks, underground, outdoor and indoor applications and for use in cable ducting.
Generally speaking, steel wire armored cables have the characteristics of steel tape armored cables, and it can be laid vertically, but steel tape armored cables can only be laid horizontally.

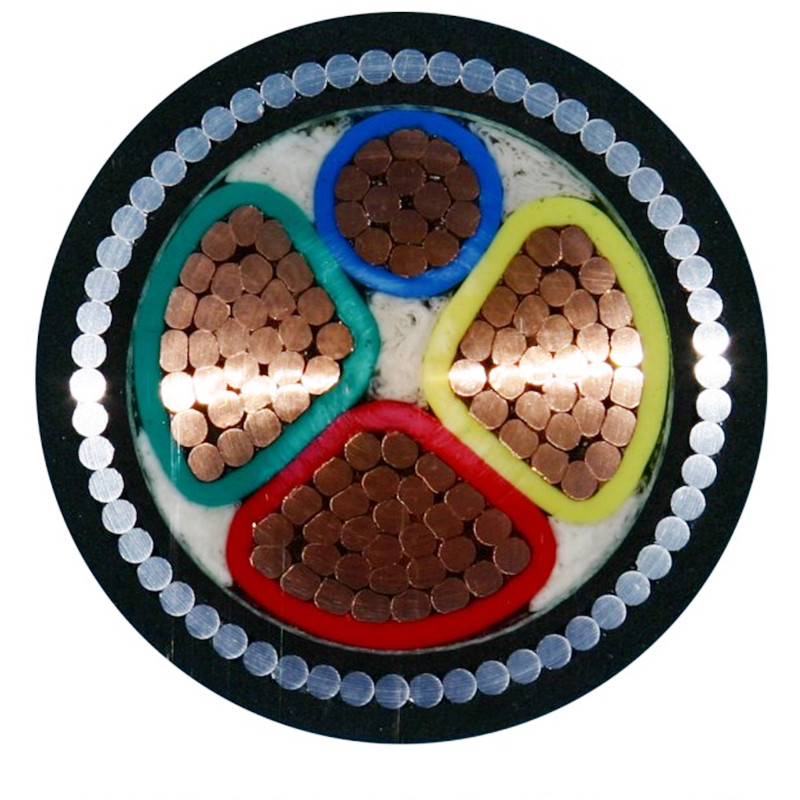

PRODUCTS STRUCTURE
---Conductor Material
Pure annealed copper wire, solid class 1, or strand class 2.
---Insulation Material (inner insulation)
PVC (polyvinyl chloride).
---Insulation Colour
2C: brown, blue
3C: brown, blue, yellow/green
4C: brown, blue, black, yellow/green,
5C: brown, blue, black, grey, yellow/green
Remark: we will choose other colors according to the customer request.
---Filler Material
Fiberglass tape, or PVC (Polyvinyl chloride).
---Cabling Material
Non-woven fabrics
---Inner Sheath Material
PVC (Polyvinyl chloride).
---Armoured Material
Single core: galvanized aluminum wire; multi-cores: galvanized steel wire.
---Sheath Material (out insulation)
PVC (polyvinyl chloride)
---Sheath Colour
Black, or others.
---Core Number
2～5 cores, 2C～5C.
---Voltage Rate (U0/U)
0.6/1kV, 600/1000V (Um: 1.2kV).
---Working Temperature
-15℃～+70℃.
---Minimum Bending Radius
Fixed: 20 x Out Diameter.
---Production Standard
GB/T 12706, IEC 60502, BS 6346.
---Products Delivery
Within 10-15 working days as soon as we received the deposit.
REMARK
---The above information is only for
you reference, for the formal technical data, please refer to the actual cables.
---The product can have flame retardant, fire-resistant
or Low Smoking Zero Halogen properties, and their working temperature can be 90
& 105 degree, but the production process and insulation materials maybe has
a few of different.
---For the VV32 power cable, according
to the practice, the common specification is 25～300 mm2.
---The OEM or OBM service
will be accepted, but the customer should be provided the authorization letter to
us in advance, and the authorization letter must be true and valid.
---Electricaltech Cable:
Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.
---Electricaltech Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
