Electricaltech brand coaxial cable range includes products suitable for TV, audio, broadcast, antenna, radio frequency and telecoms. Electricaltech brand RG series coaxial cable, it includes RG6, RG11, RG59, the most common resistance is 75 ohm.
Brand:
ElectricaltechItem NO.:
XTD--Coaxial-01Order(MOQ):
5000 metersPayment:
T/T 30% the deposit, the balance will be paidMarket Price:
$/M 0.15Price:
$0.08/0.12 per meterProduct Origin:
Hubei, China.Color:
Black or whiteShipping Port:
Wuhan, Shanghai, Shenzhen, Guangzhou, or other Chinese port.Lead Time：
Within 7-10 working days as soon as weWeight：
68 KG/KMRG series Coaxial Cable
PRODUCTS KEYWORDS
RG series coaxial cable, RG 6 coaxial cable, RG 11 coaxial cable, RG 59 coaxial cable, 75 ohms coaxial cable, 75 Ω coaxial cable.
PRODUCTION APPLICATION
Electricaltech brand RG series coaxial cable, includes RG 6 coaxial cable, RG 11 coaxial cable, RG 59 coaxial cable, their resistant is 75 ohm. RG series coaxial cable complies with standard of GY/T 135-1998, GB/T 14864-2013, BS EN 50117-1, MIL-C-17, it is suitable for many different uses, including; data, video, telecom, signal, CATV, CCTV, RF signal and broadcast transmissions.

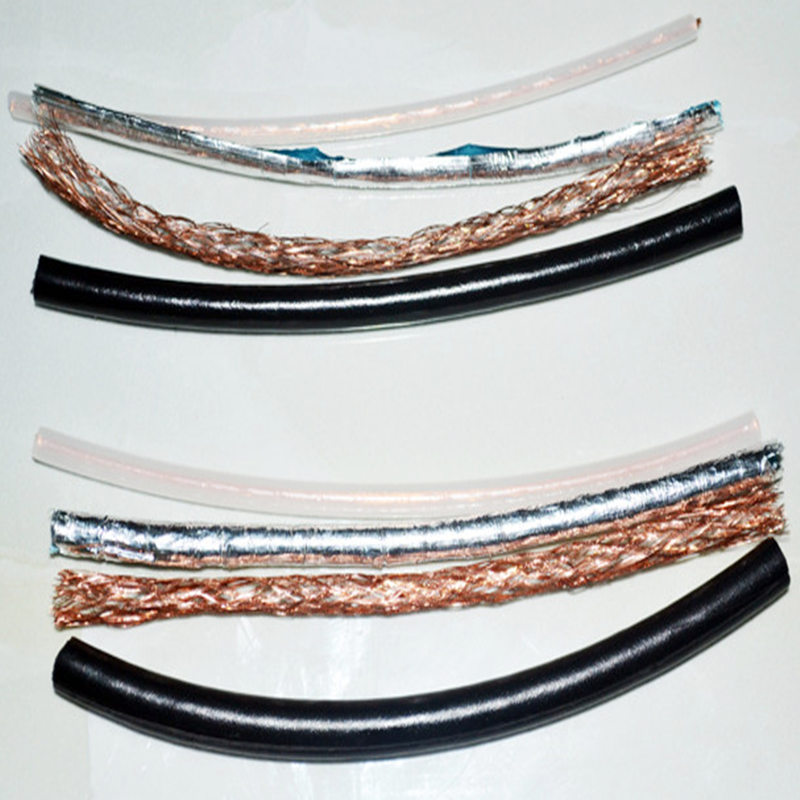

PRODUCTS STRUCTURE
---Conductor Material
Plain annealed copper wire, solid or strand.
---Insulation Material
RG 6 / RG 11: FPE (Foam Skin Polyethylene)
RG 59: PE (Polyethylene)
---Shielded Material
Aluminum foil
---Braid Material
Plain copper wire or tinned copper wire
---Sheath Material
PVC (polyvinyl chloride) or LSZH (low smoking zero halogen)
---Sheath Colour
Black, white, or as per customer requirement.
---Core Number
Single core, 1C.
---Voltage Rating
30V
---Working Temperature
-20℃～+75℃.
---Installation Temperature
0℃ ～+40℃
---Minimum Bending Radius
20 x Overall Diameter.
---Production Standard
GY/T 135-1998, GB/T 14864-2013, BS EN 50117-1, MIL-C-17
Flame retardant according to BS EN 60332-3-10, BS EN 60332-1-2.
---Product Packing
100 meters per roll.
---Product MOQ
5000 meters.
---Production Delivery
Within 10-15 working days as soon as we received the deposit.
PRODUCTS STRUCTURE

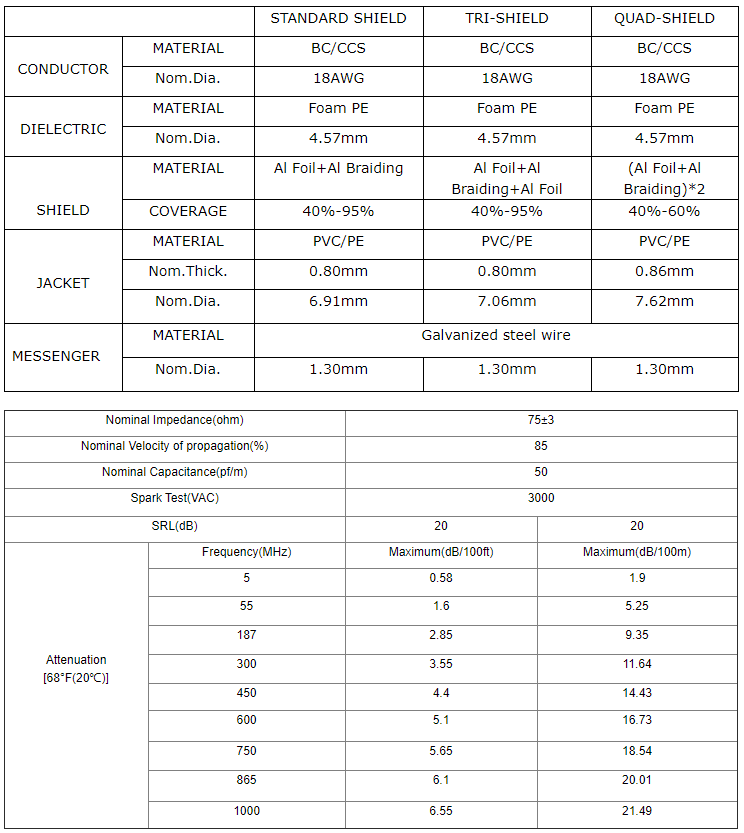

1. RG 6 coaxial cable

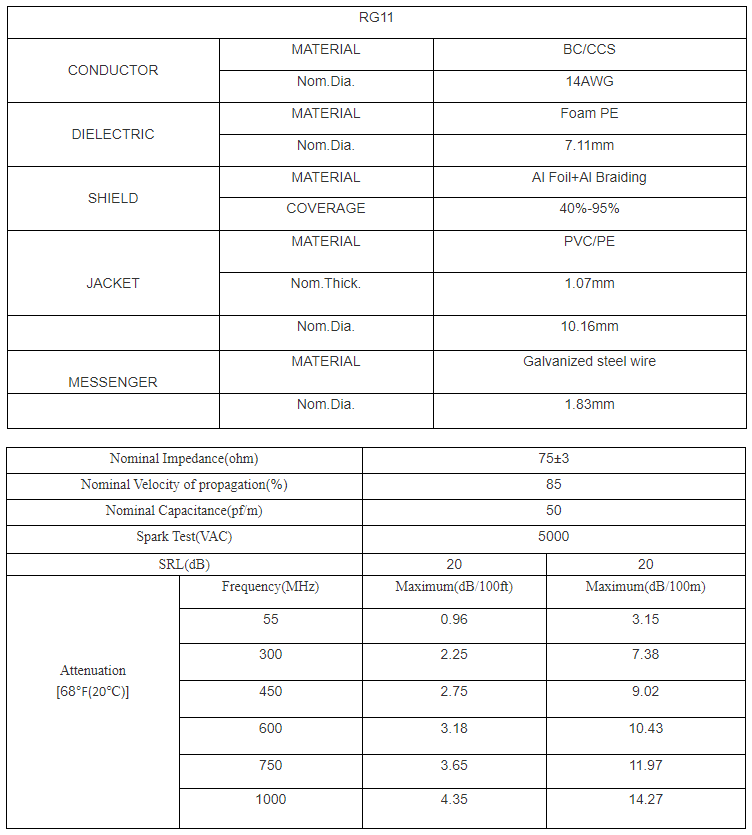

2. RG 11 coaxial cable

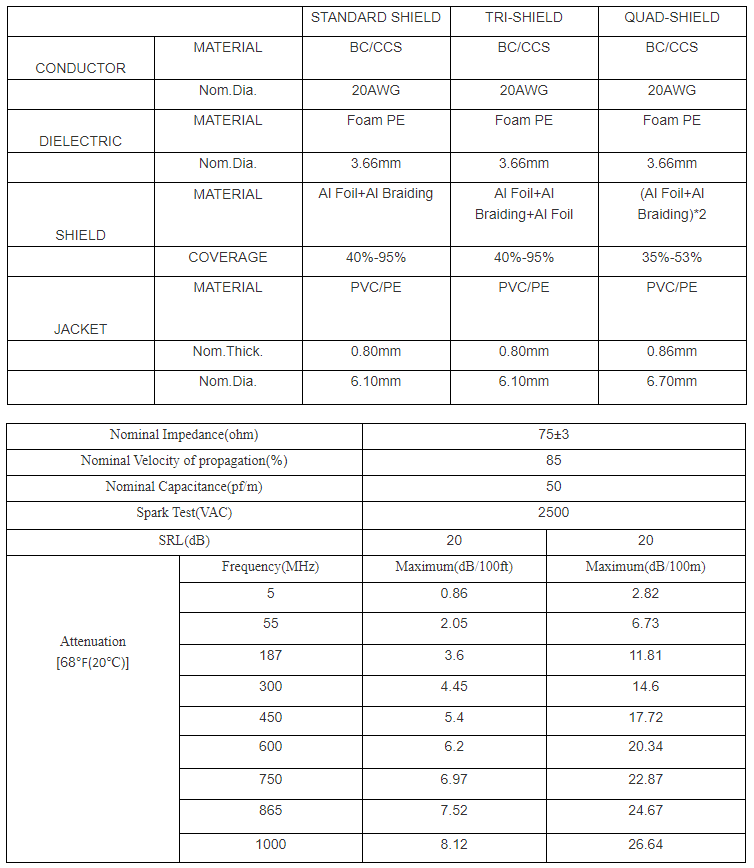

2. RG 59 coaxial cable
REMARK
---The information contained within this datasheet is for guidance only and is subject to change without notice or liability. All the information is provided in good faith and is believed to be correct at the time of publication.
---When selecting cable accessories, please note that actual cable dimensions may vary due to manufacturing tolerances.
---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.
---Electricaltech Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.
---Electricaltech Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
