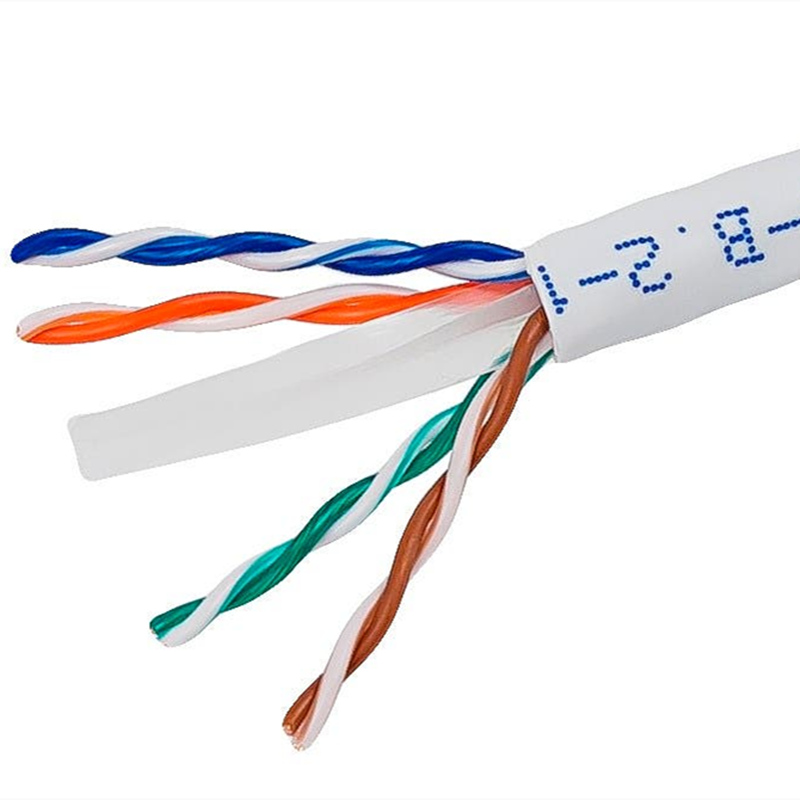

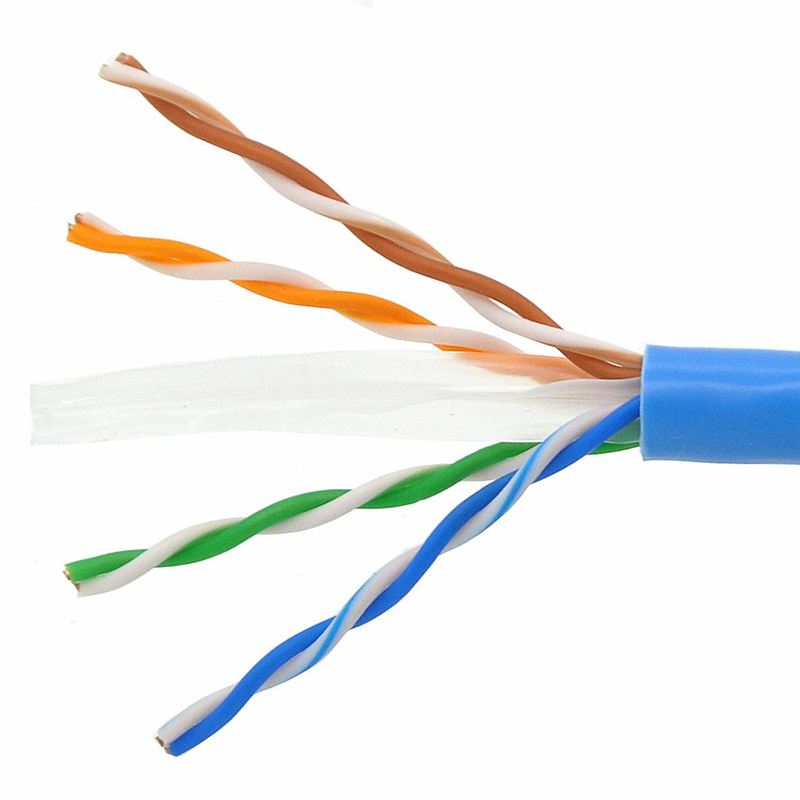

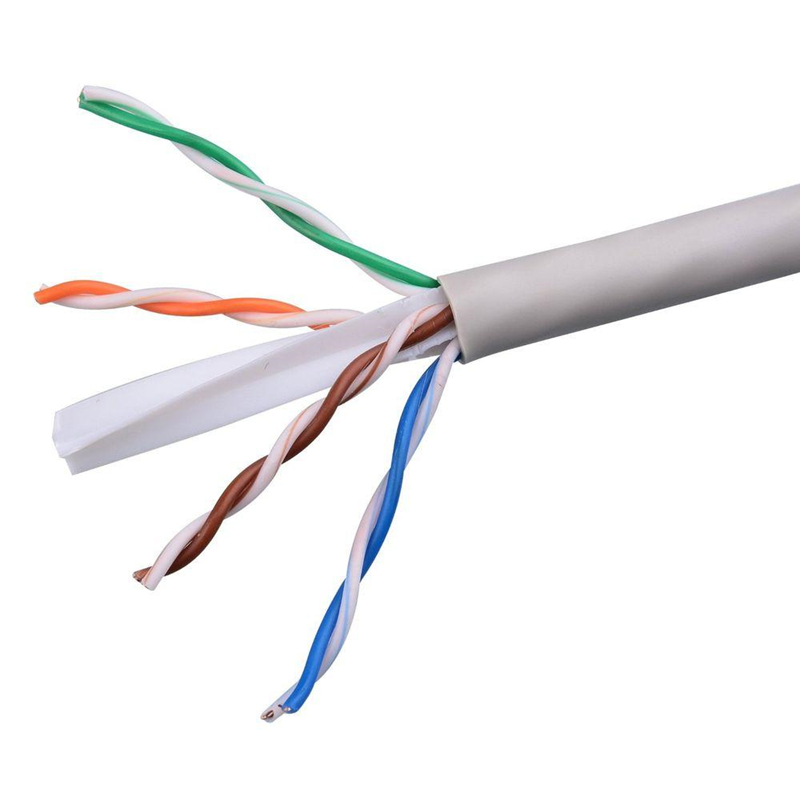

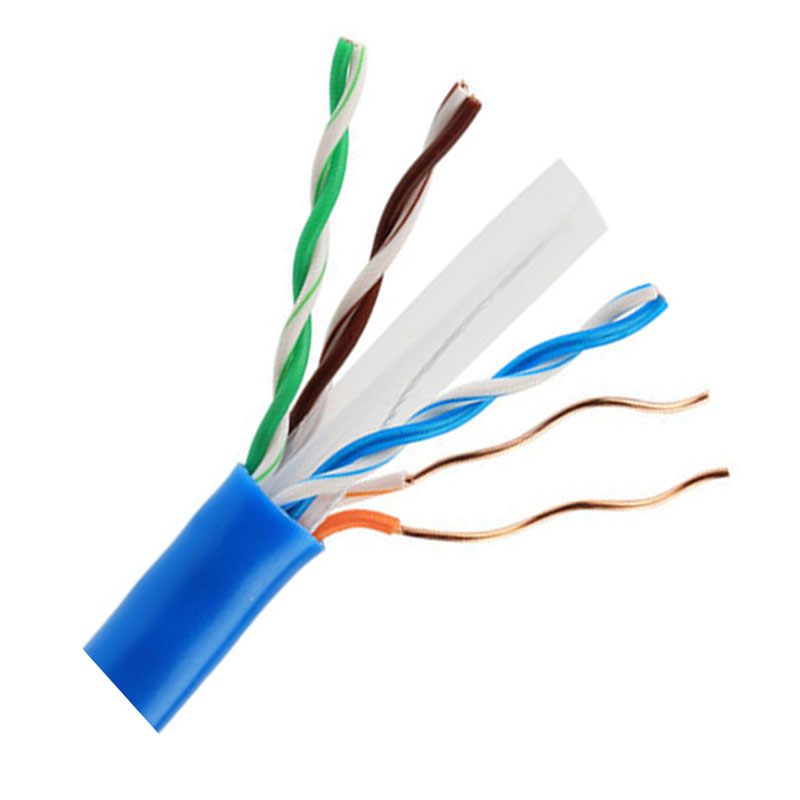

Cat 6 UTP Unshielded PVC sheath LAN Cable

Cat 6 UTP Unshielded PVC sheath LAN Cable

PRODUCTS KEYWORDS

Cat 6 utp lan cable, utp cat 6 network cable, cat 6 23 AWG lan cable, cat 6 unshielded cable, Category 6 data cable, TIA/ EIA 568B cat 6 lan cable, ISO/IEC 11801 cat 6 utp cable.

APPLICATION CHARACTERISTICS

Cat 6 UTP unshielded PVC sheath LAN cable, bare copper conductor, HDPE insulated, PVC sheath, meet to ISO/IEC 11801, ANSI/TIA/EIA 568B or YD/T 1019.

Category 6 UTP Cable (Cat 6 Cable) is a twisted pair cable for carrying signals. This type of cable is main used in structured cabling for computer networks such as Ethernet, supports a frequency range of up to 250MHz and is designed for transmission speeds of up to 1 gigabit per second(Gigabit Ethernet). It is also used to carry other signals such as telephony and video.

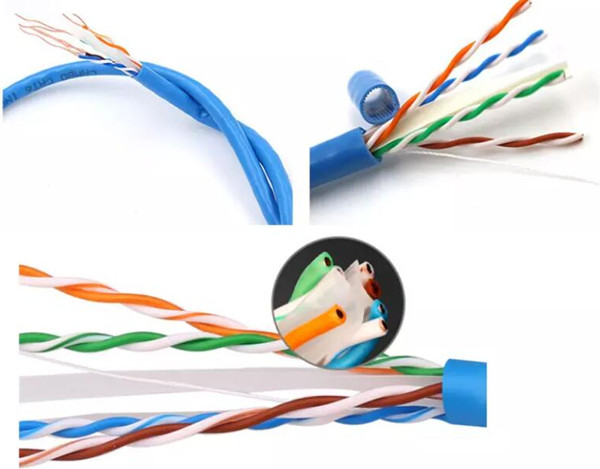

PRODUCTS STRUCTURE

---Conductor Material

    Plain annealed copper wire, solid class 1, 1/0.57 mm, 23AWG (4 pairs)

---Insulation Material

    HDPE (high density polyethylene), thickness: 1.03 mm

---Insulation Color

    Blue, blue/white; orange, orange/white; green, green/white; brown, brown/white

---Shielded Material

    Un-shielded

---Screened Material

    Non-screened

---Sheath Material

    PVC (Polyvinyl Chloride), thickness: 1.1 mm

---Sheath Color

    Black, blue, grey, white, or others

---Rip Cord Material

    Tinned copper wire

---Core Number

    4 pairs (8 cores)

---Cable’s Out Diameter

    6.2 mm

---Refer Net Weight

    14 kg/305m carton

---Minimum Bending Radius

    6 x cable’s out diameter

---Flame Retardant Class

    CM, CMR (IEC 60331)

---Operating Voltage

    72V

---Operating Temperature

    -20℃～+70℃

---Velocity Ratio

    68 (% speed of light)

---Max. Resistance Unbalance

    5.0%

---Characteristics Impedance

    100 ±15Ω

---Max. DC Conductor Resistance in 20℃

    ≤ 95 Ω/km

---Max. Delay skew

    < 45 (ns/100m)

---Dielectric Strength

    1.0kV DC or 750V AC in 1 minute

---Production Standard

    ISO/IEC 11801-2012, ANSI/TIA/EIA 568B, YD/T 1019-2013, IEC 61156-5-2012, AS/NZS 3080, BS EN 50173.

---Packing Type

    305 meters per carton (box)

---Product MOQ

    100 cartons (box)

---Production Delivery

    Within 7-15 working days as soon as we received the deposit.

REMARK

---The information contained within this datasheet is for guidance only and is subject to change without notice or liability. All the information is provided in good faith and is believed to be correct at the time of publication.

---When selecting cable accessories, please note that actual cable dimensions may vary due to manufacturing tolerances.

---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.

---Electricaltech Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.

---Electricaltech Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
