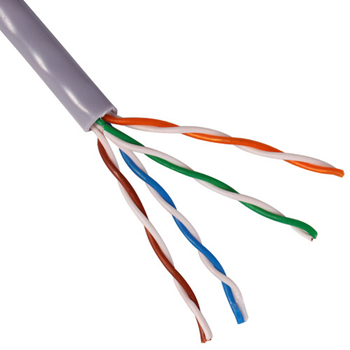

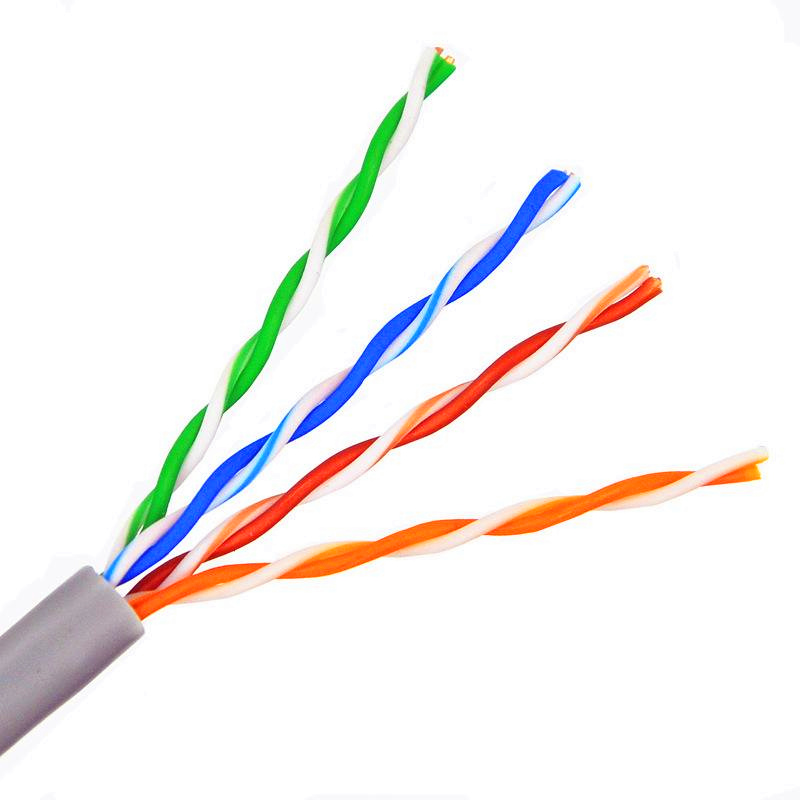

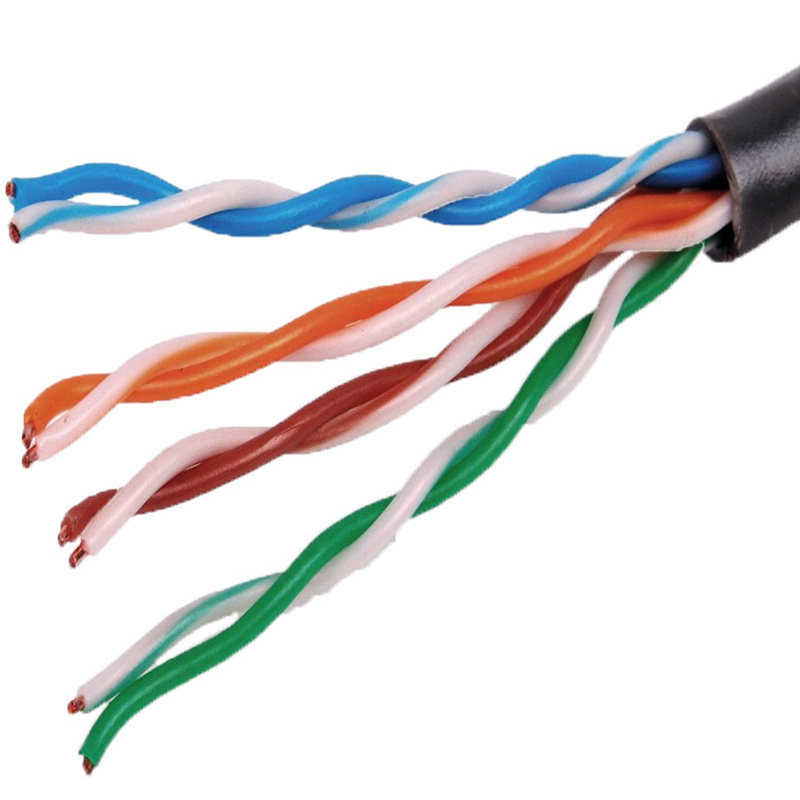

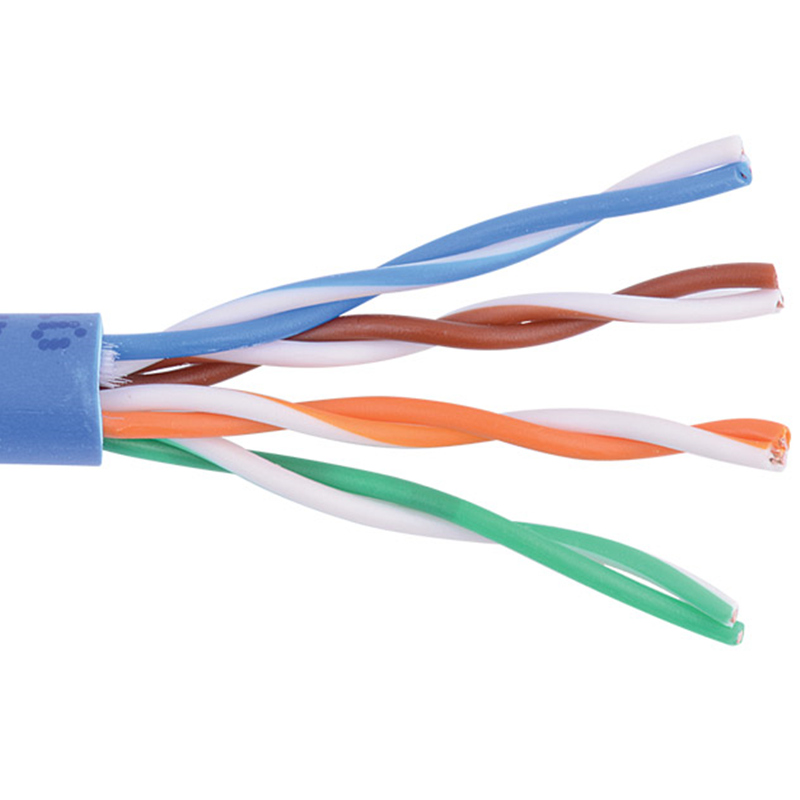

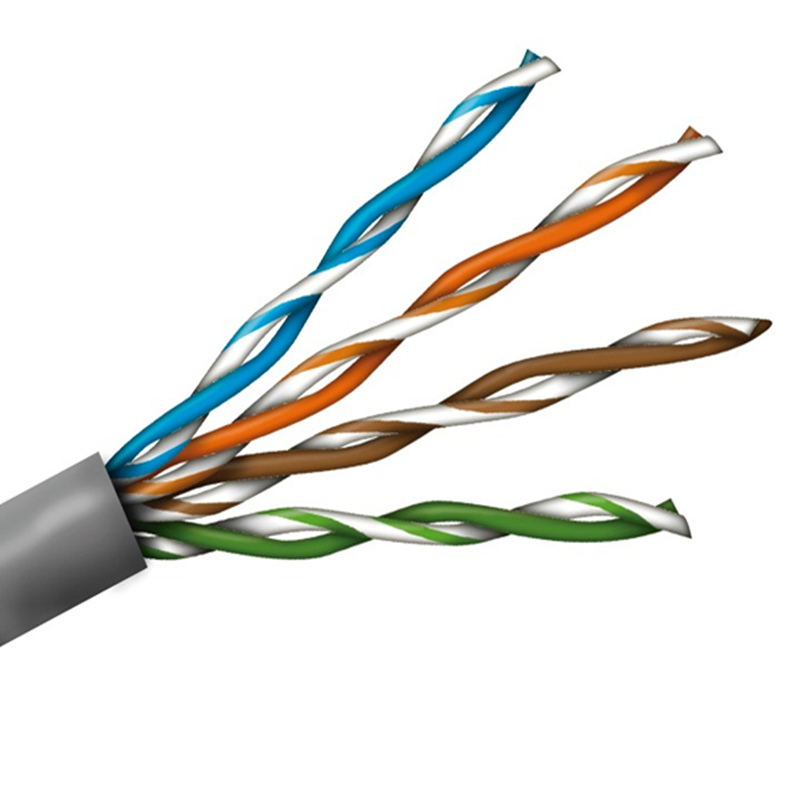

Cat 5e UTP Unshielded LAN Cable, bare copper or CCA conductor, HDPE insulated, unshield, PVC or LSZH sheath, meet to
ISO/IEC 11801, ANSI/TIA/EIA 568B or YD/T 1019.
Brand:
ElectricaltechItem NO.:
XTD--LAN-01Order(MOQ):
100 cartonsPayment:
T/T 30% the deposit, the balance will be paidMarket Price:
$/M 0.2Price:
$0.15/0.18Product Origin:
Hubei, China.Color:
Black blue white grey or others.Shipping Port:
Wuhan, Shanghai, Shenzhen, Guangzhou, or other Chinese port.Lead Time：
Within 7-10 working days as soon as we rWeight：
33 KG/KMCat 5e UTP Unshielded LAN Cable
PRODUCTS KEYWORDS
Cat 5e utp lan cable, utp cat 5e network cable, cat 5e 24AWG lan cable, cat 5e unshielded cable, Category 5E data cable, TIA/ EIA 568B cat 5e lan cable, ISO/IEC 11801 cat 5e utp cable.
APPLICATION CHARACTERISTICS
Cat 5e UTP unshielded LAN cable, bare copper conductor, HDPE insulated, PVC or LSZH sheath, meet to ISO/IEC 11801, ANSI/TIA/EIA 568B or YD/T 1019. Cat 5e UTP un-shield LAN Cable, is used by horizontal subsystem in the LAN premises distribution system, and is used to the cabling connection between the communication outlet terminal of the system working area and the distributing frame of cross connection closet. The cable is laid in cable gland cable conduit and ceiling or floor inter layer, to make the cable support the application of voice, data, text, image, video, etc.
PRODUCTS STRUCTURE
---Conductor Material
Plain annealed copper wire, solid class 1, 1/0.50 mm, 24 AWG (4 pairs)
---Insulation Material
HDPE (high density polyethylene), thickness: 0.88 mm
---Insulation Color
Blue, blue/white; orange, orange/white; green, green/white; brown, brown/white
---Shielded Material
Un-shielded
---Screened Material
Non-screened
---Sheath Material
PVC (Polyvinyl Chloride), thickness: 0.6 mm
---Sheath Color
Black, blue, grey, white, or others
---Rip Cord Material
Nylon
---Core Number
4 pairs (8 cores)
---Cable’s Out Diameter
5.2 mm
---Refer Net Weight
10 kg/305m carton
---Minimum Bending Radius
4 x cable’s out diameter
---Flame Retardant Class
CM, CMR (IEC 60331)
---Operating Voltage
72V
---Operating Temperature
-0℃～+70℃
---Characteristics Impedance
100 ±15Ω
---Max. DC Conductor Resistance in 20℃
≤ 110 Ω/km
---Mutual Capacitance
< 0.56 nF/km
---Resistance Unbalance
5% maximal
---Capacitance Unbalance
33 pF/km
---Delay Skew
< 45 nS
---Product Frequency
100MHz
---Dielectric Strength
1.0kV DC or 750V AC in 1 minute
---Production Standard
ISO/IEC 11801-2012, ANSI/TIA/EIA 568B, YD/T 1019-2013, IEC 61156-5-2012, AS/NZS 3080, UL 444
---Product MOQ
100 cartons (305 meters per carton)
---Production Delivery
Within 7-10 working days as soon as we received the deposit.

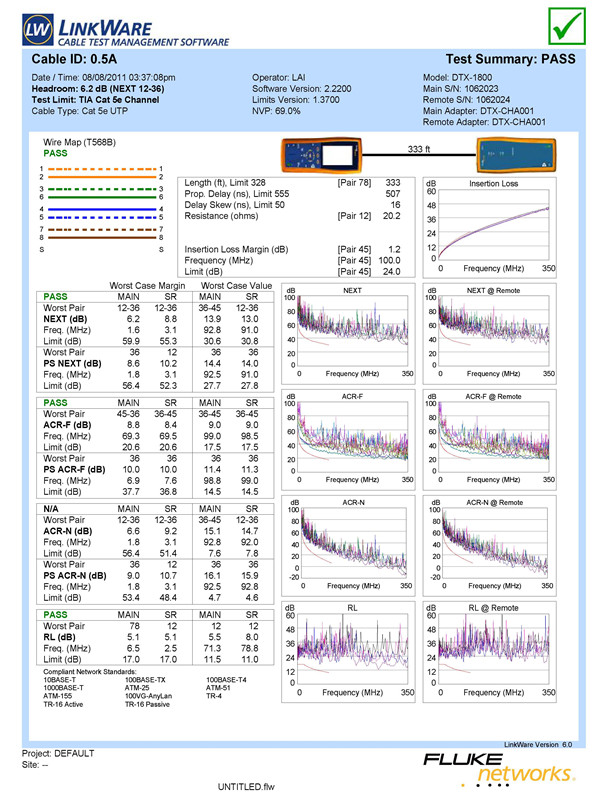

PRODUCTS TESTING
Frequency
(MHz)
Attenuation
in 20℃
(dB/100m)
Next
(dB)
PS-Next
(dB)
RL
(dB)
Elfext
(dB)
PS-Elfext
(dB)
Phase
Delay
(nS)
1
2.0
65.3
62.3
20.0
63.8
60.8
570
4
4.1
56.3
53.3
23.0
51.8
48.8
552
8
5.8
51.8
48.8
24.5
45.7
42.7
546.73
10
6.5
50.3
47.3
25.0
43.8
40.8
545.38
16
8.2
47.2
44.4
25.0
39.7
36.7
543.0
20
9.3
45.8
42.8
25.0
37.8
34.8
542.05
25
10.4
44.3
41.3
24.3
36.8
32.8
541.2
31.25
11.7
42.9
39.9
23.6
33.9
30.9
540.44
62.5
17.0
38.4
35.4
21.5
27.9
24.9
538.55
100
22.0
35.3
32.3
20.1
23.8
20.8
537.6
REMARK
---The
information contained within this datasheet is for guidance only and is subject
to change without notice or liability. All the information is provided in good
faith and is believed to be correct at the time of publication.
---When
selecting cable accessories, please note that actual cable dimensions may vary
due to manufacturing tolerances.
---The
OEM or OBM service will be accepted, but the customer should be provided the
authorization letter to us in advance, and the authorization letter must be
true and valid.
---Electricaltech
Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost
Service.
---Electricaltech Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
