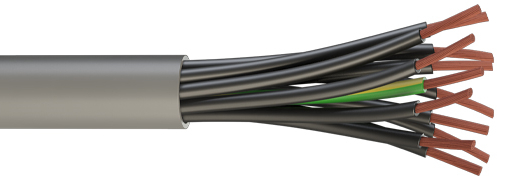

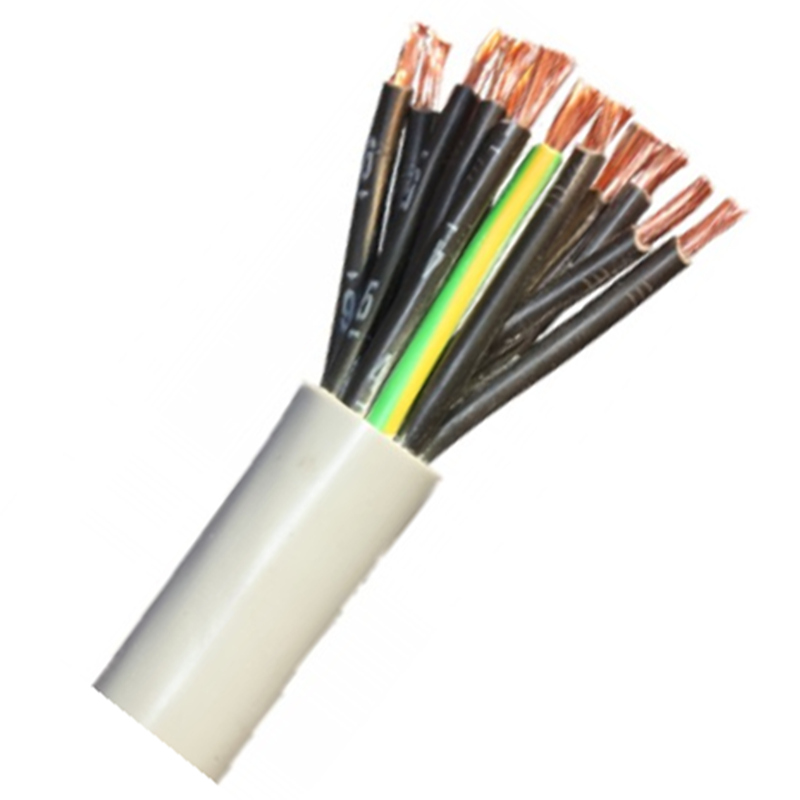

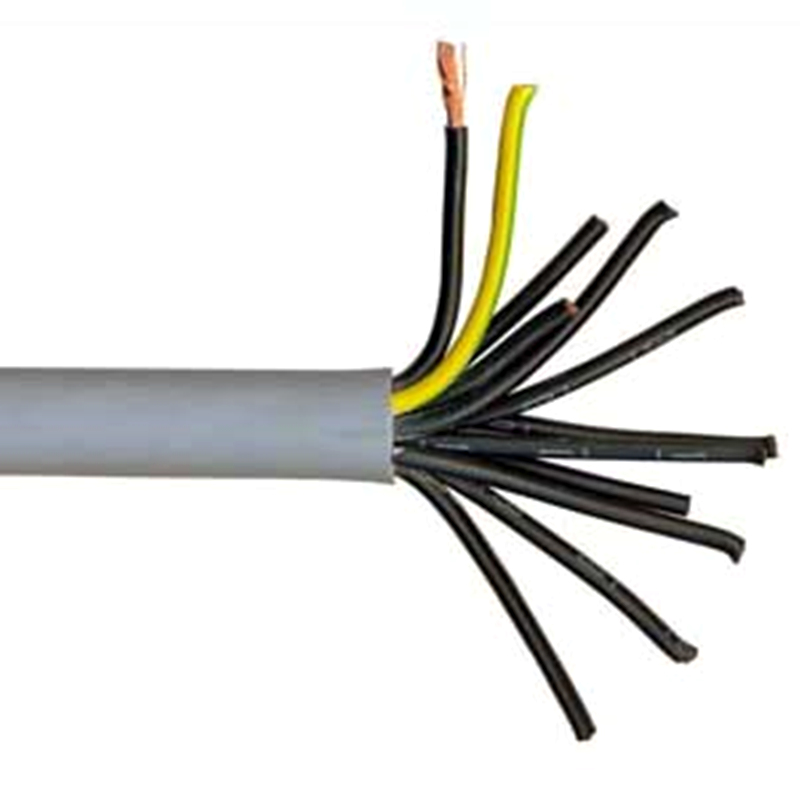

YY PVC insulated YSLY unshield KVV control cable

YY PVC insulated YSLY unshield KVV control cable

PRODUTS KEYWORDS

YY control cable, KVV control cable, YSLY control cable, KVV un-shielded control cable, KVV un-screened control cable, JZ-500 control cable.

PRODUCTS APPLICATION

 Electricaltech brand YY PVC insulated YSLY unshield KVV control cable for instrumentation and control equipment, for tooling machinery production lines, and in flexible applications for free movement without tensile load. Suitable in dry, ambient and wet rooms. These indoor cables are not used for external or underground installation.

PRODUCTS STRUCTURE

---Conductor Material

    Plain annealed copper wire; solid or strand.

---Insulation Material

    PVC (Polyvinyl Chloride)

---Insulation Color

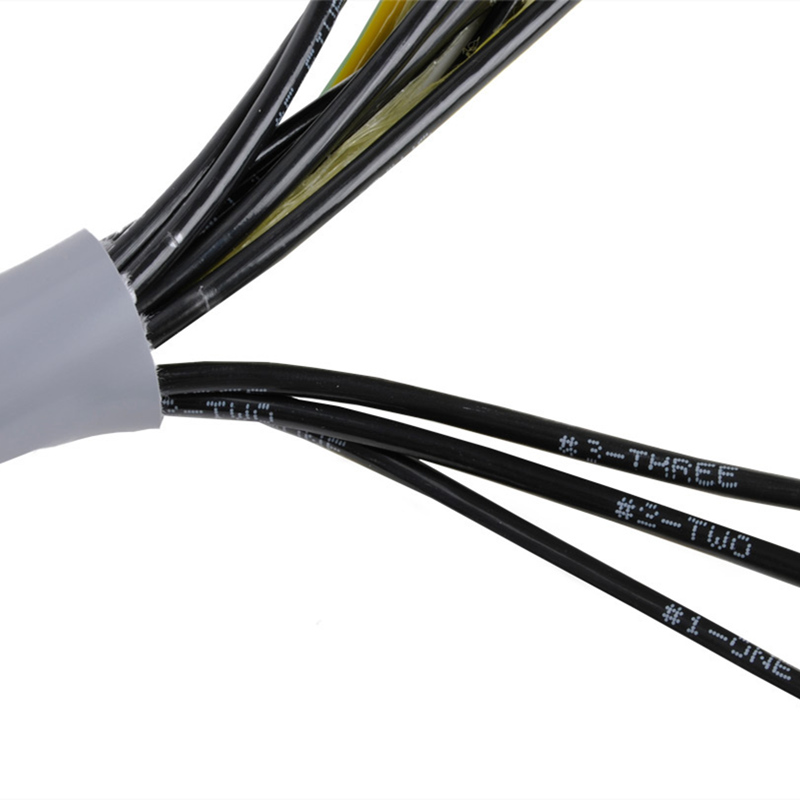

    Black with numbered cores & green/yellow earth wire.

---Inner Sheath Material

    PVC (Polyvinyl Chloride)

---Out Sheath Material

    PVC (Polyvinyl Chloride)

---Out Sheath Color

    Black, white, grey, transparent, or other colours.

---Core Number

    2 cores to 80 cores, 2C ～80C.

---Conductor Cross-section

    0.5～70 mm²

---Voltage Rate (U₀/U)

    300/500V, 450/750V.

---Working Temperature

    -15℃～+70℃.

---Minimum Bending Radius

    Fixed: 6 x overall diameter

    Flexed: 12.5 x overall diameter

---Production Standard

   GB/T 9330, IEC 60227, VDE 0250, VDE 0207.

---Products Packing

   Roll, wooden pallet, wooden drum, or others.

---Products Delivery

   Within 5-7 working days as soon as we received the deposit.

REMARK

---The information contained within this datasheet is for guidance only and is subject to change without notice or liability.

---All the information is provided in good faith and is believed to be correct at the time of publication; when selecting cable accessories, please note that actual cable dimensions may vary due to manufacturing tolerances

---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.

    ---Electricaltech Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.

    ---Electricaltech Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.

    ---Electricaltech Cable: it is your Production Base, Overseas Warehouse, and Purchase Consultant in wire and cable

    industry.
