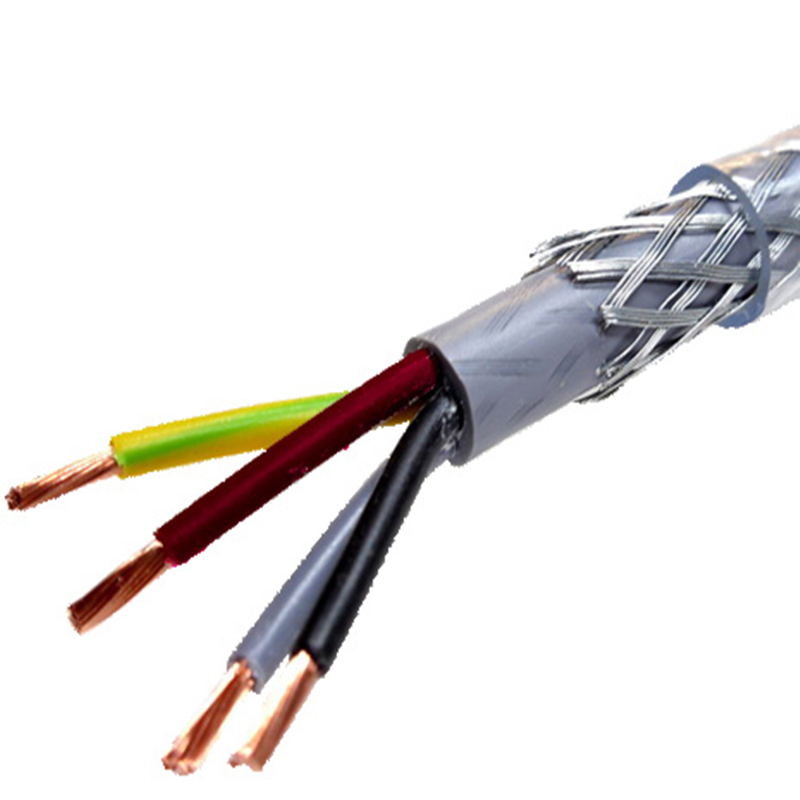

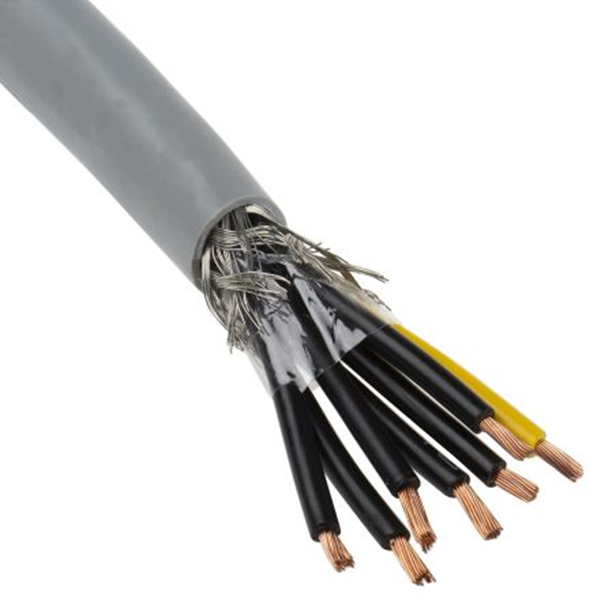

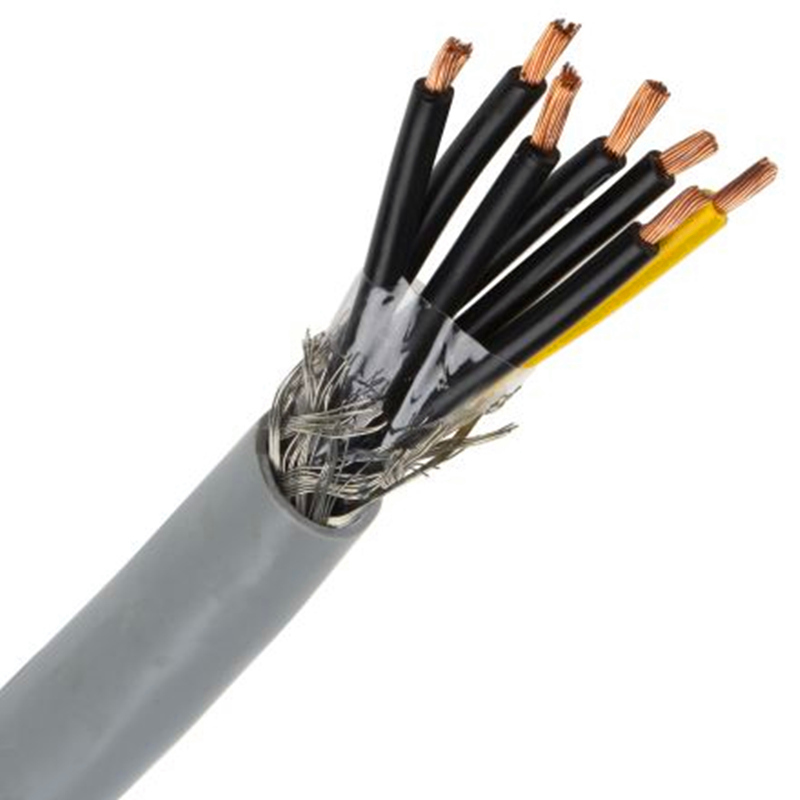

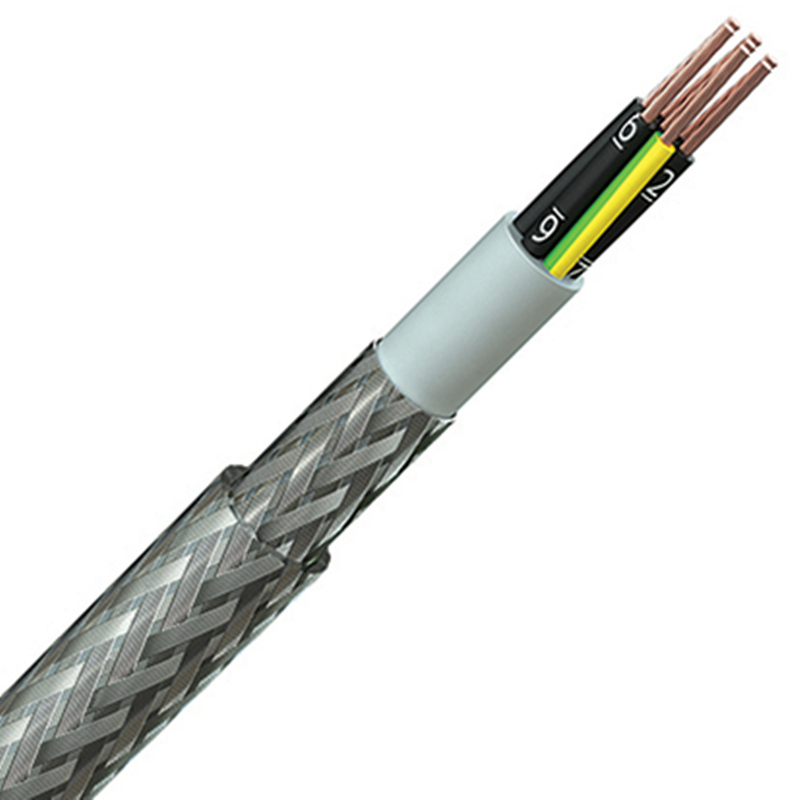

CY PVC insulated TCWB shielded YSLCY KVVP control cable

CY PVC insulated TCWB shielded YSLCY KVVP control cable

PRODUTS KEYWORDS

KVV cable, KVVP cable, control cable, CY shielded control cable, YSLCY control cable, CY screen control cable.

PRODUCTS APPLICATION

CY PVC insulated TCWB shielded YSLCY KVVP control cable, for instrumentation and control equipment, for tooling machinery production lines and, in flexible applications for free movement without tensile load. Suitable for use in dry, moist and wet rooms. These cables are not used for outdoor or underground installation.

Control cable to connect equipment in production/assembly lines. Can be used between both fixed and mobile equipment and air conditioning systems.

PRODUCTS STRUCTURE

---Conductor Material

    Plain annealed copper wire; solid class 1, or strand class 2.

---Insulation Material

    PVC (Polyvinyl Chloride)

---Insulation Color

    Black with numbered cores & green/yellow.

---Separator Material

    PET (Polyester Tape)

---Screened Material

    Aluminum foil

---Shielded Material

   Tinned copper wire braid

---Sheath Material

    PVC (Polyvinyl Chloride)

---Sheath Color

    Black, white, grey, and other colours.

---Core Number

    1 core to 80 cores, 1C ～80C.

---Conductor Cross-section

    0.5～16 mm²

---Voltage Rate (U₀/U)

    300/500V, 450/750V.

---Working Temperature

    -15℃～+70℃.

---Minimum Bending Radius

    Fixed: 4 x overall diameter

    Flexed: 12.5 x overall diameter

---Production Standard

   GB/T 9330, IEC 60227, BS EN 50266, VDE 0295, VDE 0207

---Products Packing

   100 meters each roll, reel, coil, plastic reel, wooden pallet, wooden drum, or others.

---Products Delivery

   Within 7-10 working days as soon as we received the deposit.

REMARK

---The information contained within this datasheet is for guidance only and is subject to change without notice or liability.

---All the information is provided in good faith and is believed to be correct at the time of publication; when selecting cable accessories, please note that actual cable dimensions may vary due to manufacturing tolerances

---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.

    ---Electricaltech Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.

    ---Electricaltech Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.

    ---Electricaltech Cable: it is your Production Base, Overseas Warehouse, and Purchase Consultant in wire and cable

    industry.
