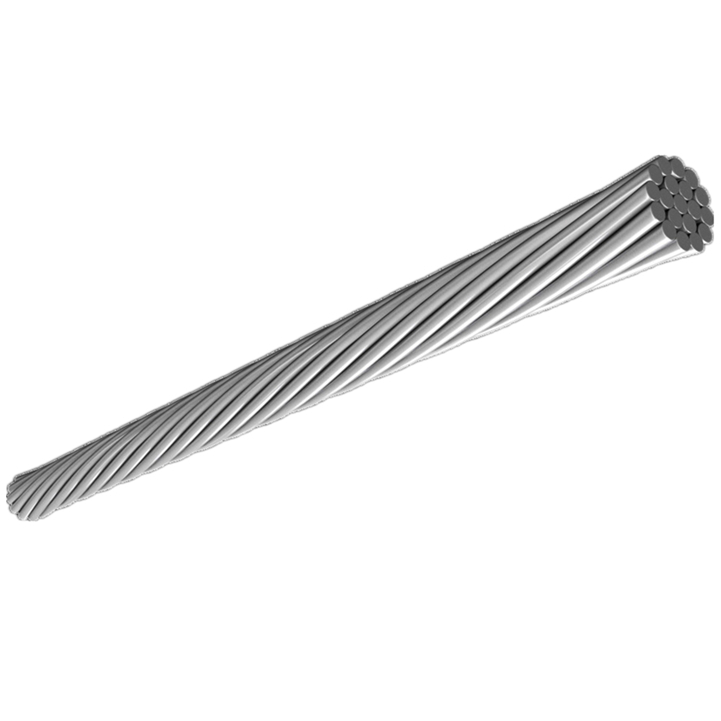

All Aluminum Conductor AAC cable, all bare annealed aluminum wire conductor, have not insulation and sheath, meet to ASTM B-230, ASTM B-231, GB/T 1179-2008.
Brand:
ElectricaltechItem NO.:
XTD--Aerial-03Order(MOQ):
10000 metersPayment:
T/T 30% the deposit, the balance will be paidMarket Price:
$/M 0.2Price:
$0.15/0.18 per meterProduct Origin:
Hubei, China.Color:
Primary colorsShipping Port:
Wuhan, Shanghai, Shenzhen, Guangzhou, or other Chinese port.Lead Time：
Within 10-20 working days as soon as weWeight：
80 KG/KMAll Aluminum Conductor AAC cable
PRODUCTS KEYWORDS
AAC cable, AAC bare conductor, all aluminum conductor bare cable, aluminum aerial cable, all aluminum cable.
PRODUCTION APPLICATION
Electricaltech brand All Aluminum Conductor AAC cable, concentric lay stranded Aluminium Conductor ( AAC) is made up of one or more strands of hard drawn 1350 aluminum alloy. These conductors are used in low, medium and high voltage overhead lines. AAC has seen extensive use in urban areas where spans are usually short but high conductivity us required. The excellent corrosion resistance of aluminium has made AAC a conductor of choice in coastal areas. Because of its relatively poor strength to weight ratio, AAC had limited use in transmission lines and rural distribution because of long spans utilized.
PRODUCTION FEATURES
1. High current carrying capacity
2. Excellent resistance to corrosion
3. Ideal for use in coastal area
4. Suitable for low & medium voltage lines in urban area.
PRODUCTS STRUCTURE
---Conductor Material
Plain annealed aluminum wire, concentrically strand, meet to IEC 60228, GB/T 3955.
---Insulation Material
Non-insulation
---Sheath Material
Non-sheath
---Core Number
Single core, 1C.
---Working Temperature
-0℃～+70℃.
---Installation Temperature
0℃ ～+40℃
---Minimum Bending Radius
20 x Overall Diameter.
---Production Standard
GB/T 12527-2008, GB/T 14049-2008, ASTM B-230, ASTM B-232
---Product Packing
Wooden drum.
---Product MOQ
10000 meters.
---Production Delivery
Within 10-20 working days as soon as we received the deposit.
REMARK
---The information contained within this datasheet is for guidance only and is subject to change without notice or liability. All the information is provided in good faith and is believed to be correct at the time of publication.
---When selecting cable accessories, please note that actual cable dimensions may vary due to manufacturing tolerances.
---The OEM or OBM service will be accepted, but the customer should be provided the authorization letter to us in advance, and the authorization letter must be true and valid.
---Electricaltech Cable: Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.
---Electricaltech Cable: Good Material, Reasonable Weight, Enough Length, well-known brand wins your trust.
