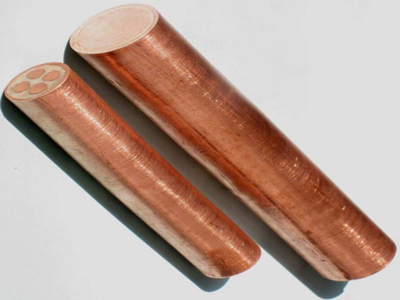

BTTZ & BTTQ mineral insulated cable is composed of copper conductor, magnesium oxide insulation, and seamless copper tube protective sheath, PVC or PE or LSZH out sheath is optioned. It has strong fire resistance characteristics, and can be widely used in various fields. 500V or 750V, meet to GB/T 13033, IEC 60702, BS 6387, BS 5266.
Brand:
ElectricaltechItem NO.:
XTD-MIC-01Order(MOQ):
200 metersPayment:
T/T 30% the deposit, the balance will be paidMarket Price:
$/M 66.88Price:
$66/66.80 per meterProduct Origin:
Hubei Province, China.Color:
Orange red or others.Shipping Port:
Wuhan, Shanghai, Guangzhou, Shenzhen, or other Chinese port.Lead Time：
Within 15-20 working days as soon as weWeight：
3850 KG/KM

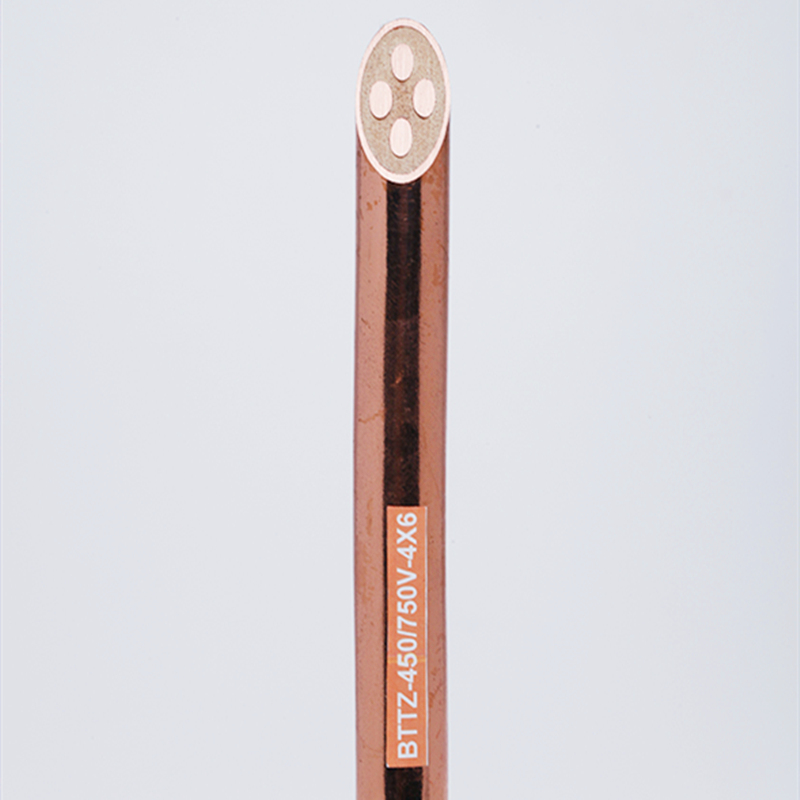

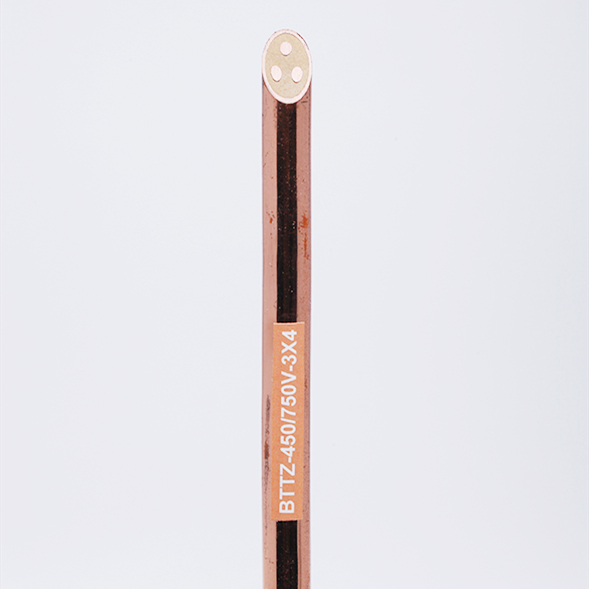

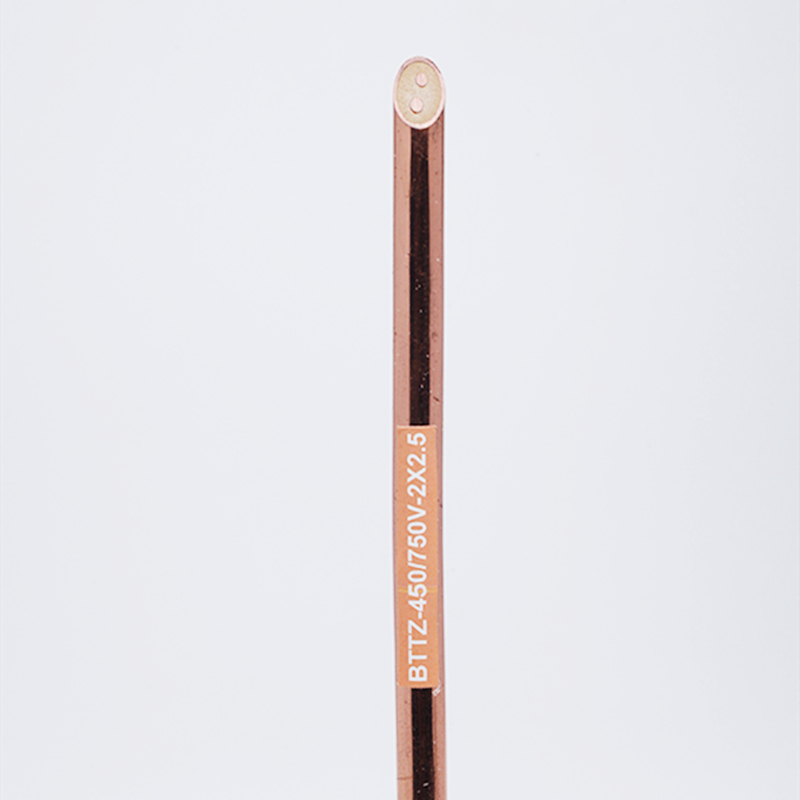

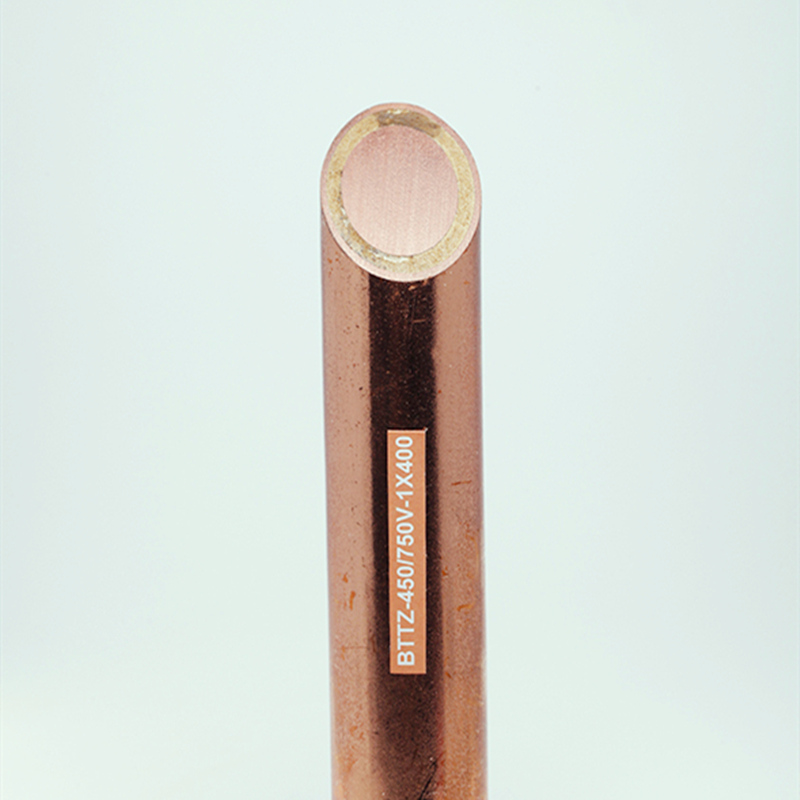

BTTZ BTTQ mineral insulated Power Cables
MAIN KEYWORDS
BTTZ mineral insulated cable, BTTQ mineral insulated cable, bare mineral 500V cable, bare mineral insulated 750V cable, MIC fire resistant cable, BS 6387 mineral insulated cable, GB/T 13033 mineral insulated cable, IEC 60702 mineral insulated cable, BTTYZ electric cable, BTTVQ mineral insulated cable.
PRODUCTS CHARACTERISTICS
(1) Completely fireproof. It does not burn itself, nor will it cause fire, and the flame will not produce toxic smoke and gas when it burns.
(2) Strong overload protection. The BTTZ mineral insulated cable will not be damaged, if it exceeds the current rating as long as its heat does not reach the melting temperature of copper (1083℃).
(3) Resistance to high temperature. The highest operating temperature of BTTZ mineral insulated cable can reach 250℃ in normal time, because the melting temperature of magnesium oxide is 2800℃, and the melting temperature of copper is 1083℃.
(4) Moisture-proof, anti-corrosive, explosion-proof. BTTZ mineral insulated cables have seamless copper tubing and sealed cable terminals, it can effectively block most oil, water, gas and flame.
(5) Long service life. Magnesium oxide and copper can withstand aging; the service life of common cable can reach more than 3 times.
(6) Environmental protection. Even if the BTTZ mineral insulated has been put into the flam, and the temperature of the flam close to the melting point of copper, it would not produce smoke, halogens or toxic gases.
(7) Radiation resistance, anti-electromagnetic interference. After irradiation, the resistance value of conductor and insulation will not change. It has a seamless and sealed copper sheath, making it one of the best shielding materials for use in nuclear facilities, computer rooms, power distribution and control rooms and other important applications.
(8) Small in size and light in weight. Compared with ordinary cables, BTTZ mineral insulated cable has a 60% reduction in volume and a 30% reduction in weight.
(9) Good grounding performance, copper sheath can provide good grounding performance, do not need a separate earth wire.
(10) BTTZ mineral insulated cable has some defects, such as high hardness, cannot water, joints, expensiveaccessories, etc.
PRODUCTS APPLICATION
(1) Fire protection systems for all types of buildings.
(2) High-rise civil buildings, office buildings, hotels, shopping malls, exhibition centers, museums, libraries, hospitals, stadiums, airports and so on.
(3) High temperature field, such as steel, smelting, glass and other workshops.
(4) Flammable and explosive fields, such as petroleum, chemical, pharmaceutical, nuclear and military enterprises.
(5) National defense engineering, such as ship, aviation, aerospace, satellite launch, control center, etc.

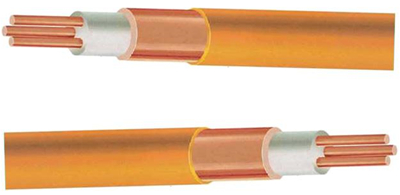

PRODUCTS STRUCTURE
---Conductor Material
Plain annealed solid copper wire.
---Insulation Material
Magnesium oxide mineral compound
---Sheath Material
Plain copper tube

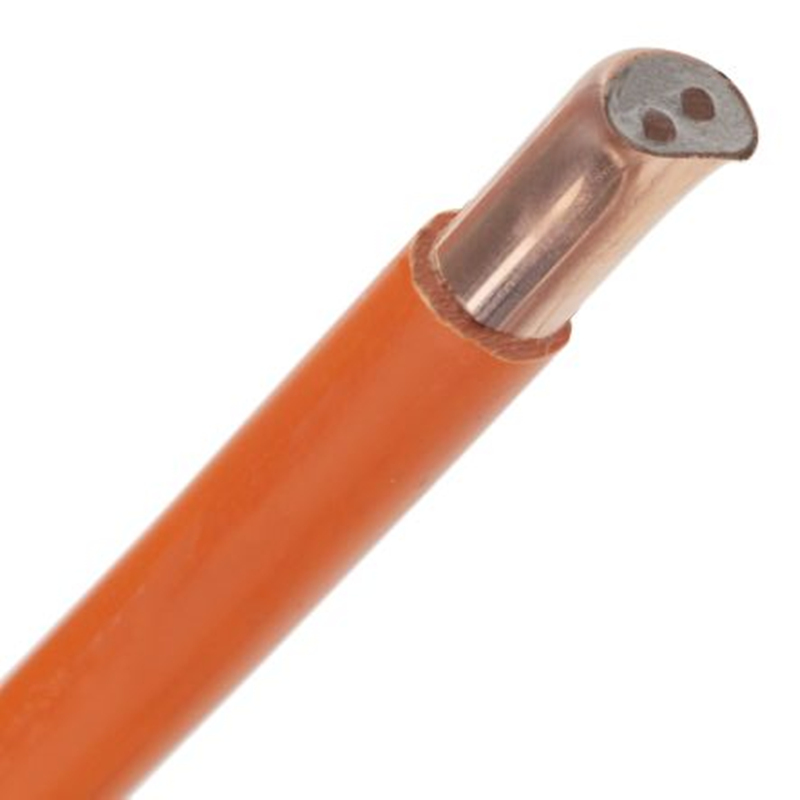

---Out Sheath (optional)
PVC, PE, or LSZH (low smoking zero halogen).
---Core Number
1C, 2C, 3C, 4C, 7C
---Voltage Rate
500V, 750V
---Working Temperature
Normal: -15℃～+250℃, special period: 1083℃
---Minimum Bending Radius
20 x Out Diameter
---Production Standard
---Products Delivery
Within 15-20 working days as soon as we received the deposit.
REMARK
---The information contained within this
datasheet is for guidance only and is subject to change without notice or
liability.
---All the information is provided in good
faith and is believed to be correct at the time of publication; when selecting
cable accessories, please note that actual cable dimensions may vary due to
manufacturing tolerances.
---BTTZ or BTTQ Mineral insulated cable is
composed of copper conductor, magnesium oxide insulation, and seamless copper
tube protective sheath. It has strong fire resistance and can be widely used in
various fields.
---The OEM or OBM service
will be accepted, but the customer should be provided the authorization letter to
us in advance, and the authorization letter must be true and valid.
---Electricaltech Cable:
Embrace New Times, Co-create Xintiandi; Focus on Quality, Foremost Service.
